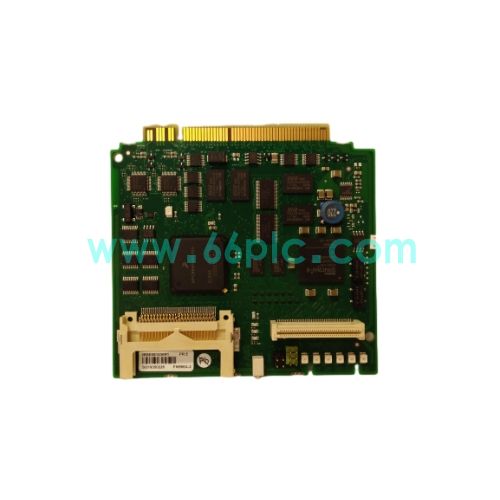

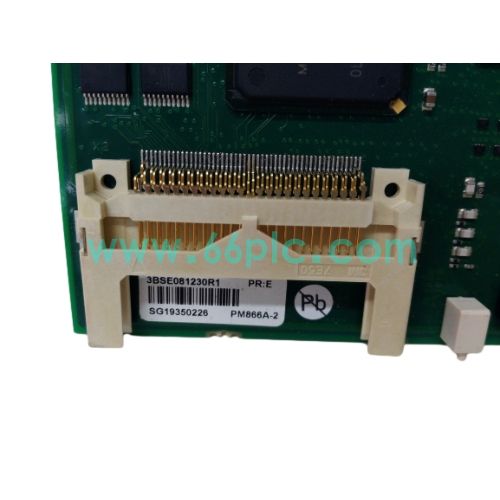

ABB PM866A‑2 3BSE081230R1 AC800M Controller CPU Module

The ABB PM866A‑2 3BSE081230R1 is a high‑performance processor unit for ABB AC800M distributed control system. It executes real‑time control logic, processes field I/O signal data, completes logic calculation, interlock judgment and closed‑loop regulation, and provides core computing capability for large‑scale process automation in petrochemical, power and pulp‑paper industries.

This rack‑mount CPU module supports redundant hot‑standby configuration, integrates multiple communication interfaces, and adopts high‑speed backplane bus for I/O expansion. Original production has been discontinued. It is widely used as aftermarket spare parts for petrochemical plants, power‑plant DCS cabinet maintenance and high‑availability automation system upgrade projects.

Main Specifications

1. Brand:ABB; Model:PM866A‑2, Part No:3BSE081230R1; Type:AC800M Control Processor CPU Module
2. Applicable Platform:ABB AC800M DCS system, compatible with S800 I/O series modules
3. Processing Performance:High‑speed real‑time processor for complex process control logic execution
4. Memory Resource:Built‑in RAM and flash memory for user application program and data storage
5. Communication Interface:Ethernet and serial ports supporting Profibus, Modbus and other mainstream industrial protocols
6. Redundancy Feature:Support hot‑standby redundant pairing to improve system operation reliability
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Execute user control programs including function block, ladder diagram and structured text for process‑loop closed‑loop control.
2. Realize data interaction with S800 series I/O modules via controller backplane bus to collect field process signals.
3. Support hot‑standby redundant operation, realizing bumpless switchover when primary CPU fails to avoid production interruption.
4. Communicate with upper HMI, engineering station and third‑party field devices through multi‑protocol communication ports.
5. Complete system self‑diagnosis, record fault logs and output LED status indication for on‑site maintenance guidance.
6. Serve as central processing core hardware within ABB AC800M DCS control cabinets.

Application Scenarios

1. Petrochemical plants, thermal power stations, pulp‑paper mills and other large‑scale process‑industry automation sites.
2. Spare CPU replacement and routine maintenance of existing ABB AC800M DCS control cabinets.
3. Technical renovation and operation‑reliability upgrade of aging distributed process‑control systems.
4. On‑site troubleshooting and replacement of faulty processor modules on non‑stop continuous production units.
5. Spare‑parts stocking for system integrators and process‑automation professional maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete ABB AC800M series legacy DCS hardware.

FAQ

1. Q:Can PM866A‑2 3BSE081230R1 work with other AC800M CPU models for redundancy?
   A:Redundancy pair requires identical CPU model and firmware version to ensure complete data synchronization.
2. Q:What I/O modules are compatible with PM866A‑2?
   A:It mainly matches ABB S800 series I/O modules through backplane bus for signal acquisition and output.

3. Q:Is this ABB AC800M CPU module still in original production?
   A:ABB original manufacturing has been discontinued, only tested surplus and refurbished spare units are available.
