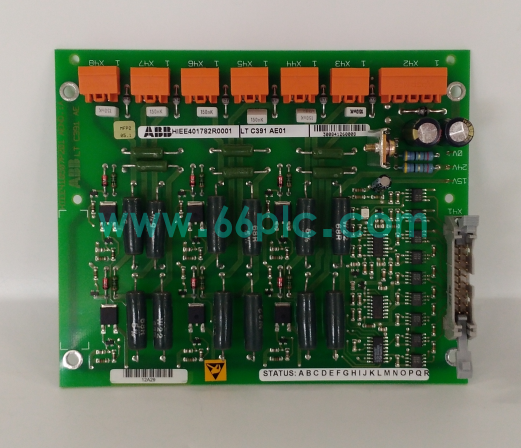

ABB LTC391AE01 HIEE401782R0001 / HIEE410507P201 Interface Board

The ABB LTC391AE01 (HIEE401782R0001, HIEE410507P201) is a high‑precision interface monitoring board for ABB industrial drive and power control systems. It collects multi‑channel electrical measurement signals, executes data processing and communicates with main controller via RS‑485 bus, realizing real‑time condition monitoring for power conversion equipment.

This plug‑in PCB board is coated with conformal coating for anti‑dust and anti‑interference capability. It integrates over‑range detection and hardware fault diagnosis functions, and can report abnormal working parameters to upper‑level control system. It is designed for long‑term stable operation inside power plant and heavy‑industry drive cabinets.

Main Specifications

• Brand: ABB; Model: LTC391AE01; Part No: HIEE401782R0001, HIEE410507P201; Type: Monitoring Interface Board
• Applicable System: ABB power conversion and large‑capacity drive control platform
• Core Tasks: Electrical signal acquisition, measurement data processing, RS‑485 communication, fault status monitoring
• Signal Interface: Field analog measurement input, RS‑485 Modbus RTU communication, internal backplane connector
• Installation: Chassis plug‑in PCB board, fixed by mounting studs
• Power Supply: 12VDC / 24VDC system auxiliary power supply
• Operating Environment: ‑40℃ ~ +85℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Diagnostic: On‑board LED indicators for power status, data transmission and hardware fault alarm
• Certifications: CE, complies with industrial EMC and power‑equipment safety standards

Core Functions

• Accurately collect multi‑channel current and voltage measurement signals from power units and drive hardware.
• Complete local signal conditioning and data calculation, transmit measurement results to main controller through RS‑485 bus.
• Detect over‑range, signal loss and board hardware failures, and upload fault diagnostic information to upper‑level system.
• Adopt conformal coated circuit board to suppress electromagnetic interference from heavy‑duty industrial field environment.
• Support parameter configuration and real‑time data reading via Modbus RTU communication interface.
• Compact plug‑in structure facilitates on‑site replacement and maintenance for automation spare‑part scenarios.

Application Scenarios

• Spare‑part replacement for ABB drive and power control cabinets in thermal power plants and heavy‑industry facilities.
• Real‑time monitoring component for large power conversion units and high‑capacity variable‑frequency drive systems.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy ABB power‑control equipment.
• Matching interface board cooperating with main control unit, power supply module and system monitoring HMI panel.
• Retrofit replacement for old boards with signal acquisition abnormality and circuit damage faults.

• Global aftermarket spare supply for automation maintenance teams maintaining ABB industrial power‑control equipment worldwide.
