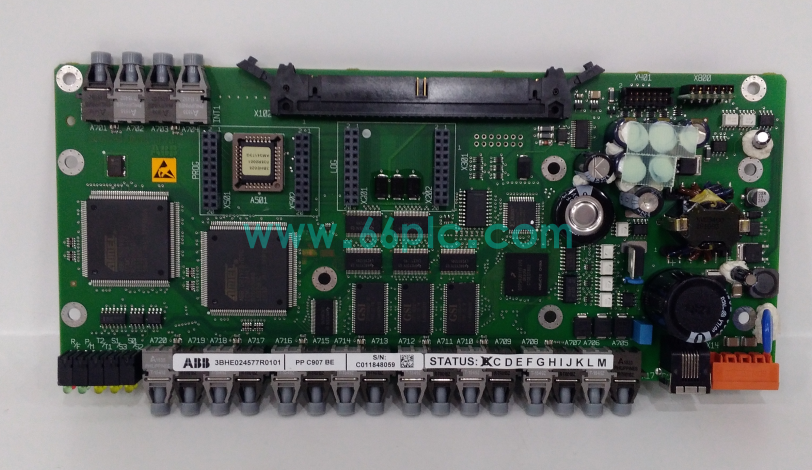

ABB PPC907BE 3BHE024577R0101 Processor Control Board

The PPC907BE 3BHE024577R0101 is a high‑performance processor control board designed for ABB distributed control systems. It undertakes core logic computation, real‑time data processing and backplane bus communication tasks to coordinate multiple I/O modules within the control rack.

This plug‑in PCB board features conformal coating for harsh industrial conditions. It supports stable long‑term continuous operation and provides comprehensive hardware self‑diagnosis, widely deployed in power and petrochemical DCS control cabinets.

Main Specifications

• Brand: ABB; Model: PPC907BE; Part No: 3BHE024577R0101; Type: Processor Control Board
• Applicable System: ABB DCS distributed control system
• Core Tasks: Central logic calculation, real‑time data processing, rack resource coordination
• Signal Interface: Internal rack backplane bus interface
• Installation: Standard plug‑in card for control cabinet rack mounting
• Power Supply: Powered by cabinet internal auxiliary DC power supply
• Operating Environment: 0℃ ~ +65℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Diagnostic: On‑board LED indicators for working status and hardware fault alarm
• Certifications: CE, complies with industrial EMC and safety standards

Core Functions

• Execute core control logic and compute process variables for the whole control rack.
• Manage high‑speed data interaction between CPU unit and various field I/O modules via backplane bus.
• Real‑time monitor board operating status and trigger fault signals once hardware anomalies are detected.
• Complete interlock logic judgment and status feedback for DCS automation loops.
• Support parameter configuration and fault troubleshooting through upper‑level configuration software.
• Conformal coated circuit design adapts to long‑term continuous operation in heavy‑duty industrial sites.

Application Scenarios

• Spare‑part replacement for DCS control cabinets in thermal power plants, hydropower stations and petrochemical facilities.
• Core processing component for distributed control and automation control systems.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy ABB DCS equipment.
• Matching control board cooperating with CPU unit, I/O cards and system HMI operation panel.
• Retrofit replacement for old boards with computation abnormality and hardware damage faults.

• Global aftermarket spare supply for automation maintenance teams maintaining ABB DCS equipment worldwide.
