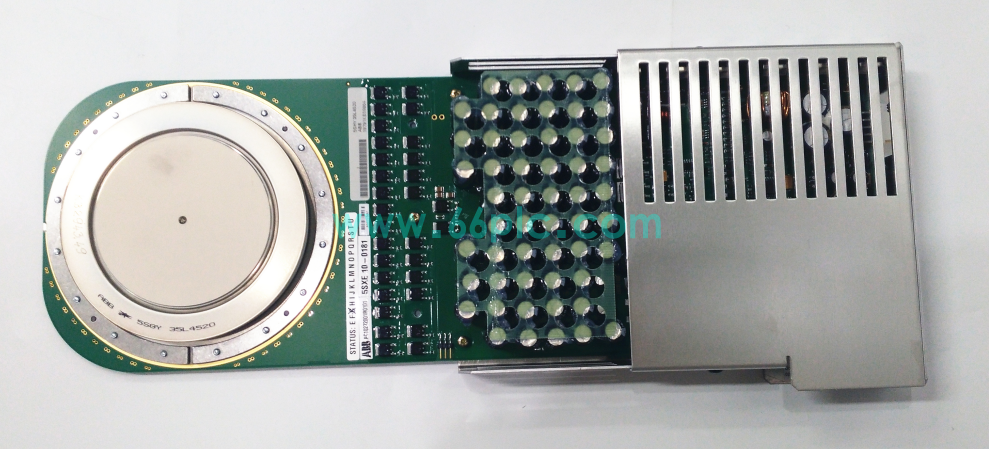

ABB AC10272001R0101 5SXE10‑0181 5SHY35L4520 IGCT Power Module Assembly

The ABB AC10272001R0101 is a complete power stack assembly assembled with 5SXE10‑0181 gate driver unit and 5SHY35L4520 IGCT power semiconductor device. It serves as the core power switching component for medium‑voltage frequency converters, realizing high‑power current switching and energy conversion for industrial drive systems.

This integrated power unit combines IGCT chip and dedicated gate drive board, providing fast turn‑on and turn‑off performance with high‑short‑circuit withstand capability. It is widely applied in large‑capacity medium‑voltage drives for metallurgy, mining, power generation and petrochemical heavy‑duty equipment.

Main Specifications

• Brand: ABB; Model: AC10272001R0101 (5SXE10‑0181, 5SHY35L4520); Type: IGCT Power Stack Assembly
• Applicable System: ABB medium‑voltage variable‑frequency drive, high‑power converter system
• Core Tasks: High‑power power switching, current conversion, pulse driving, short‑circuit protection for power loop
• Signal Interface: Power main terminal, gate drive signal connector, monitoring feedback interface
• Installation: Cabinet stacked mounting, compatible with corresponding medium‑voltage converter rack structure
• Device Type: Integrated Gate‑Commutated Thyristor (IGCT) with matching gate driver board
• Operating Environment: 0℃ ~ +55℃, 5%‑95% RH non‑condensing, anti‑vibration for industrial cabinet installation
• Mechanical: Compact power stack structure, designed for forced air cooling inside converter cabinet
• Certifications: CE, compliant with industrial power electronic equipment safety standards

Core Functions

• 5SHY35L4520 IGCT performs high‑voltage and large‑current power switching as the main power semiconductor of medium‑voltage converters.
• 5SXE10‑0181 gate driver board outputs precise trigger pulse to control IGCT turn‑on and turn‑off and feeds back device status signal to main control unit.
• The whole AC10272001R0101 assembly supports fast fault response and short‑circuit protection to avoid power device damage under abnormal working conditions.
• Realize AC‑DC‑AC energy conversion for large‑capacity motor drive to satisfy speed‑regulation demand of heavy‑load industrial equipment.
• Integrated monitoring function tracks working state of power unit, uploading fault alarm information to converter control system.
• Industrial‑hardened power stack design ensures long‑term stable operation under heavy‑duty continuous working conditions.

Application Scenarios

• Spare‑part replacement for ABB medium‑voltage converter power units in metallurgical plants, mines, power plants and petrochemical sites.
• Core power switching assembly for large‑capacity medium‑voltage frequency converter driving heavy‑duty motors such as fans, pumps and mills.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy ABB medium‑voltage drive equipment.
• Matching power stack cooperating with converter control board, cooling system and cabinet power assemblies.
• Retrofit replacement for damaged power units with device breakdown, drive board failure and power loop abnormal faults.

• Global aftermarket spare supply for automation maintenance teams maintaining ABB medium‑voltage drive industrial‑control equipment worldwide.
