ABB Bailey PHARPS32200000 F8-G2B9B3B6 MPS III Multi-Output Rack Power Supply Module

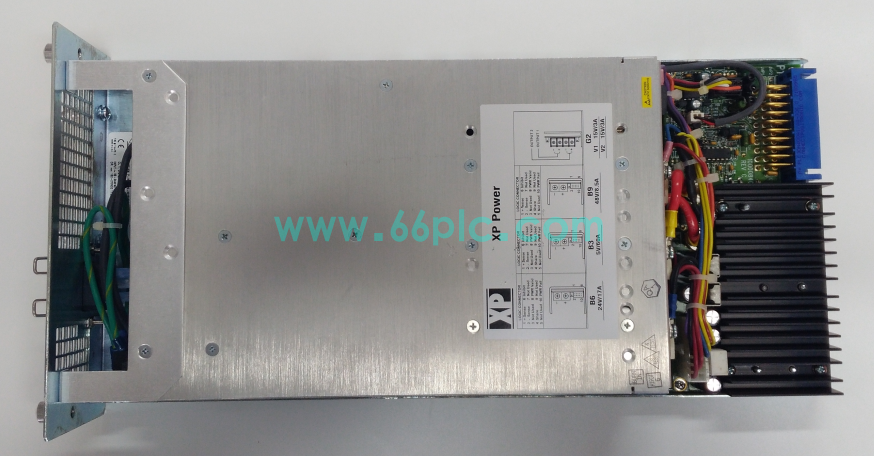

PHARPS32200000 with order code F8-G2B9B3B6 is ABB Bailey MPS III modular multi-channel power supply, dedicated to INFI 90 / Symphony Harmony DCS rack systems. It converts wide-range AC mains into five groups of isolated regulated DC power, providing stable power for controllers, analog/digital I/O boards, communication cards and field sensors inside the DCS cabinet, eliminating voltage fluctuation interference to guarantee uninterrupted process control operation.

This hot-swappable rack-mounted power unit adopts forced air cooling and full metal shielding housing, with built-in multi-layer hardware protection circuits. Original production has been discontinued, now it is a core aftermarket spare part for overhaul, replacement and backup of aging thermal power, petrochemical and papermaking Bailey INFI90 DCS control racks.

Main Specifications

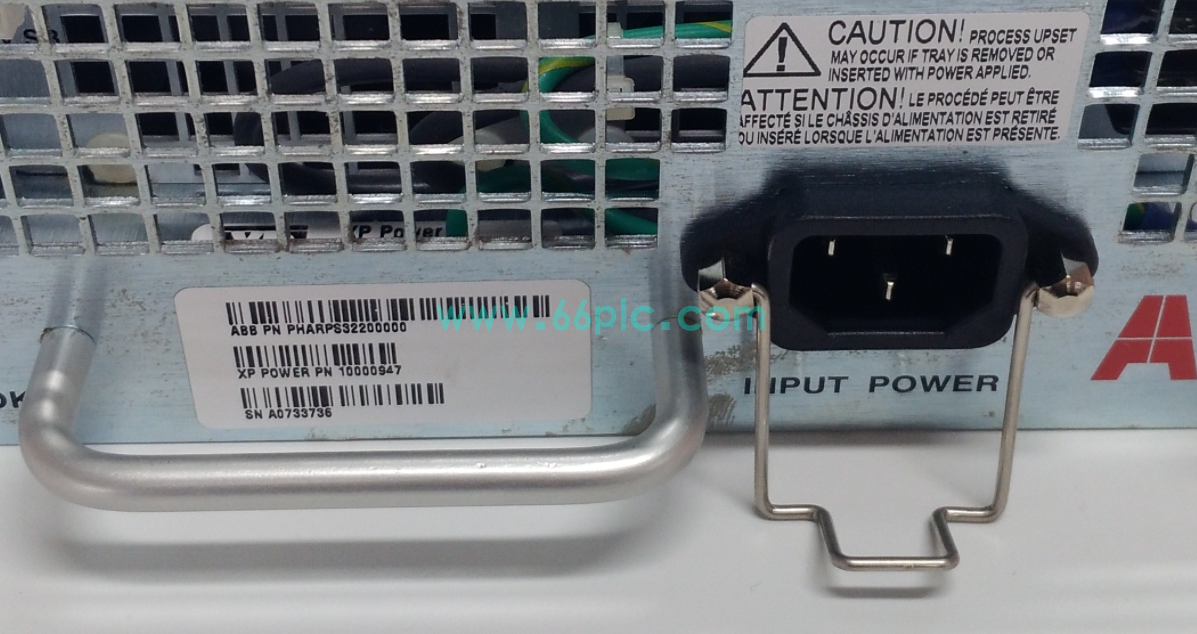

• Brand: ABB Bailey; Model: PHARPS32200000; Order Code: F8-G2B9B3B6; Series: MPS III Modular Power System
• Input: 85–264V wide AC input, compatible with global industrial power grids
• DC Output Ratings: 5V/60A, +15V/3A, -15V/3A, 24V/17A, 48V/8.5A multi-channel isolated DC power
• Physical Size: W254 × H508 × D127mm, net weight 5.2kg, standard cabinet plug-in rack structure
• Cooling & Protection: Forced air cooling; overvoltage, overcurrent, short-circuit, overheat automatic shutdown protection
• Diagnosis: Front panel LED indicators for power normal, load overload, thermal fault, output abnormal alarms
• Operating Environment: -10℃ ~ +60℃, humidity 5%~95% RH non-condensing, EMC industrial anti-interference certification
• Matching Hardware: Bailey INFI90 controller, I/O rack chassis, analog input/output modules, communication interface cards

Core Functions

• Supply multi-group isolated stabilized DC power to all boards inside INFI90 DCS rack, meeting different power requirements of CPU, signal acquisition and communication modules separately.
• Full galvanic isolation between each output channel to suppress ground loop noise and electromagnetic interference from high-voltage field equipment, improving signal sampling accuracy.
• Complete hardware fault protection logic: automatically cut off abnormal output and trigger cabinet alarm when overload, short-circuit or overheating occurs to avoid batch damage to DCS control boards.
• Hot-swap support allows single power supply replacement without full DCS system shutdown, greatly shortening equipment maintenance downtime in continuous production factories.
• Built-in load balance and voltage compensation circuit, maintaining stable DC output voltage even under frequent dynamic load changes of process control systems.
• Standard Bailey rack unified mechanical and electrical definition, plug-and-play replacement without modifying cabinet wiring or adjusting system power parameters.

Application Scenarios

• Main rack power supply spare replacement for ABB Bailey INFI90 / Symphony Harmony DCS cabinets in thermal power plants and hydropower stations.
• Multi-output power backup spare parts for petrochemical refineries, natural gas stations and pulp & paper mill legacy distributed control systems.
• Maintenance inventory for metallurgical rolling mills, cement kilns and chemical fertilizer factory continuous process automation control rooms.
• Matching power unit cooperating with Bailey series CPU controllers, analog/digital I/O modules and redundant communication boards.
• Retrofit replacement components for aging DCS racks with unstable voltage, frequent board reset and power alarm faults.

• Global aftermarket spare stock for process industry maintenance workshops maintaining discontinued ABB Bailey DCS hardware.
