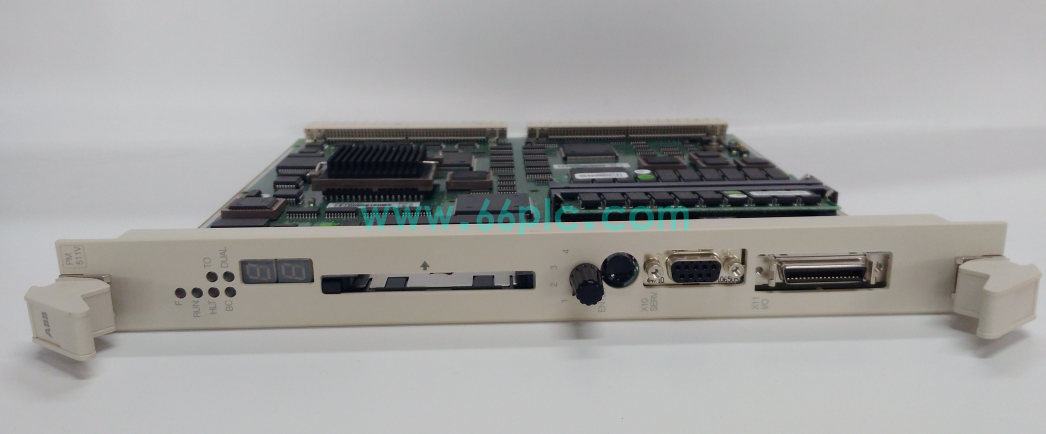

ABB PM511V08 3BSE011180R1 Advant Master Rack CPU Processor Module

PM511V08 with part number 3BSE011180R1 is the core rack CPU processor for ABB Advant Master / AC800F Freelance DCS system. Equipped with a high-speed 32-bit RISC processor, it undertakes full process logic calculation, PID closed-loop regulation, sequence control and interlock protection for medium and large-scale process control cabinets. It reads analog/digital I/O signals via rack backplane and outputs real-time control instructions to on-site actuators to maintain stable production operation.

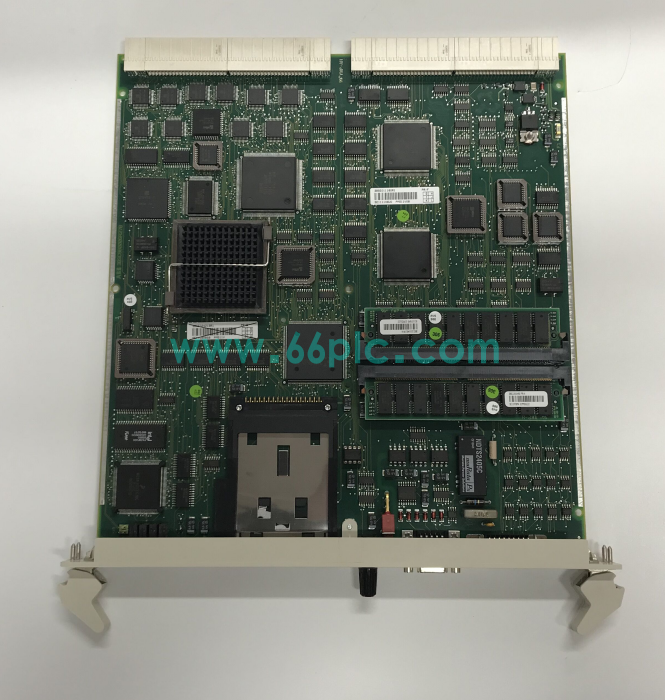

This plug-in rack controller integrates multiple communication ports, CF card program storage and multi-status LED diagnosis indicators. The PCB is coated with conformal paint to resist dust, humidity and electromagnetic interference in power, chemical and papermaking workshops. Discontinued original production, it is an essential aftermarket spare part for overhaul and replacement of aging ABB Freelance DCS control racks.

Main Specifications

• Brand: ABB; Model: PM511V08; Part No.: 3BSE011180R1; Series: Advant Master / AC800F Freelance
• Core Processor: 32-bit RISC real-time CPU, IEC 61131-3 standard programming supported
• Memory Configuration: Onboard RAM + CF card slot for control program & fault log storage
• Front Panel Interfaces: CF card slot, RS232 service port, CAN bus station bus, optical fiber interface
• Communication Protocols: CAN Station Bus, Modbus, PROFIBUS DP, Ethernet upper monitoring communication
• Power Supply: 24VDC cabinet backplane power supply, built-in overcurrent & overvoltage protection
• Operating Environment: -10℃ ~ +60℃, humidity 5%~95% non-condensing, CE EMC certified
• Diagnosis: Front LED indicators for power, run status, bus communication, hardware fault alarms
• Installation: Standard Advant rack plug-in structure, supports hot-swap replacement for maintenance
• Matching Hardware: AC800F I/O modules, power supply units, communication interface boards, operator stations

Core Functions

• Execute complete DCS control logic including multi-loop PID regulation, equipment interlock protection, automatic startup/shutdown sequential programs and fault judgment.
• Act as rack master controller, bidirectionally transmit field measurement data and control commands between backplane I/O modules and upper HMI monitoring stations.
• Multi-protocol communication realizes data interconnection with local HMI, remote DCS workstation, inverters and third-party auxiliary control equipment.
• CF card offline storage saves user programs, equipment calibration parameters and historical fault records, supporting one-click program recovery after module replacement.
• Continuous real-time self-diagnosis monitors CPU operation, bus disconnection and memory abnormalities, outputting fault codes for quick on-site troubleshooting.
• Unified rack backplane pin definition enables direct ｄｒｏｐ-in replacement without cabinet wiring modification or complicated parameter reconfiguration during overhaul.

Application Scenarios

• Core CPU spare replacement for ABB AC800F Freelance DCS racks in thermal power plants and hydropower stations.
• Main process control spare parts for petrochemical refineries, natural gas processing plants and pulp & paper production lines.
• Maintenance backup inventory for metallurgical rolling mills, cement kilns and industrial self-owned power station automation control rooms.
• Matching master processor cooperating with ABB series analog/digital I/O boards and redundant rack power supplies.
• Retrofit spare components for aging Freelance DCS systems with program crash, communication interruption and control logic lag faults.

• Global aftermarket spare stock for process industry maintenance workshops maintaining legacy ABB Advant automation hardware.
