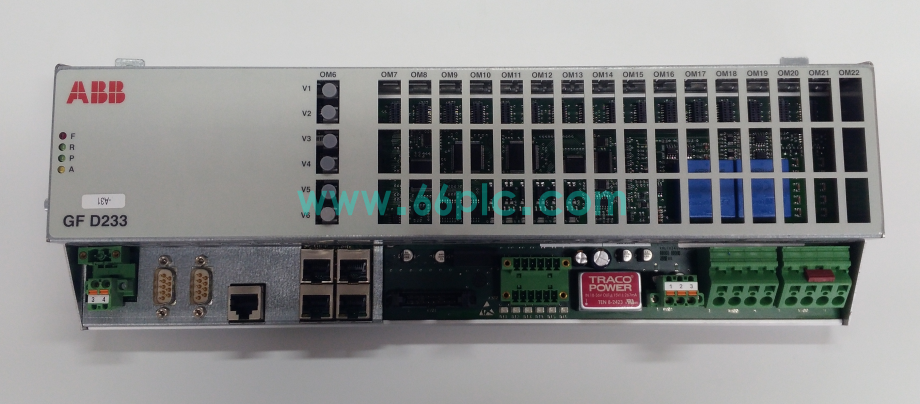

ABB GF D233A 3BHE022294R0101 / 3BHE020356R0101 Excitation Control I/O Interface Module

GF D233A (3BHE022294R0101) is ABB’s integrated excitation control and multi-channel I/O interface board, paired with accessory board 3BHE020356R0101, designed for generator excitation systems and DCS 500 series DC drive racks. It integrates analog signal sampling, excitation voltage/current closed-loop regulation, power factor control and multi-protocol communication, collecting generator stator/rotor feedback signals and outputting precise trigger control signals to power thyristor units for stable generator excitation operation.

This DIN rail-mounted module adopts full galvanic isolation circuit and industrial conformal coating to resist electromagnetic interference in power plant control cabinets. It supports hot-swappable replacement without full system shutdown, with built-in multi-stage hardware protection including overcurrent, overvoltage and overtemperature interlock. The matching sub-board 3BHE020356R0101 expands terminal signal distribution and auxiliary power conversion functions, forming a complete excitation control unit for thermal, hydro and distributed generator sets.

Main Specifications

• Brand: ABB; Main Board: GF D233A / 3BHE022294R0101; Auxiliary Board: 3BHE020356R0101
• Core Application: Generator excitation regulator, DCS500 DC motor drive control system
• I/O Channels: Multi-channel 4–20mA / ±10V analog input/output, digital interlock DI/DO terminals
• Communication: Profibus DP, Modbus TCP, 10/100M Ethernet for upper DCS data upload
• Power Supply: 24VDC ±10% wide-range DC power, redundant power input supported
• Isolation Grade: 1500V galvanic isolation between signal, power and communication circuits
• Operating Environment: -10℃ ~ +55℃, humidity 5%–95% RH non-condensing, CE & IEC EMC certified
• Installation: Standard DIN rail mounting, hot-swap supported; Overall size: 373×140×75mm
• Matching Hardware: ABB UNITROL excitation cabinets, DCS500 DC drives, SYN5302 synchronization unit

Core Functions

• Real-time sampling of generator rotor current, stator voltage and power factor signals, executing high-precision PID excitation regulation to stabilize generator terminal voltage during load fluctuation.
• All-round safety protection logic: overexcitation, underexcitation, overcurrent, overvoltage and temperature protection, triggering trip interlock signals to avoid generator equipment damage.
• Auxiliary board 3BHE020356R0101 expands signal terminal distribution, auxiliary power conversion and contact relay output for breaker and cooling fan interlock control.
• Multi-bus communication realizes bidirectional data exchange with DCS monitoring system, supporting remote parameter setting, historical fault log storage and real-time operation status uploading.
• Built-in signal filtering and ground loop suppression circuits eliminate power-frequency noise interference, ensuring stable signal acquisition in high-voltage power station electromagnetic environments.
• Unified terminal and bus definition allows direct plug-and-play replacement of main and auxiliary boards, only excitation parameter calibration required after maintenance without cabinet wiring modification.

Application Scenarios

• Core excitation control spare assembly for thermal power, hydropower and pumped storage generator UNITROL excitation cabinets.
• DC drive control main & auxiliary board spare parts for metallurgical rolling mills, mine hoists and paper machine DCS500 DC speed regulation systems.
• Maintenance backup inventory for distributed industrial self-owned power stations, biomass power generation and small hydropower automation control cabinets.
• Matching control unit cooperating with ABB SYN5302A synchronization device, PFEA111 tension amplifiers and AC800M DCS controllers.
• Retrofit replacement components for aging excitation systems with voltage instability, communication loss and protection false tripping faults.

• Global aftermarket spare stock for energy, metallurgy and papermaking industry power control equipment maintenance workshops.
