Product Description

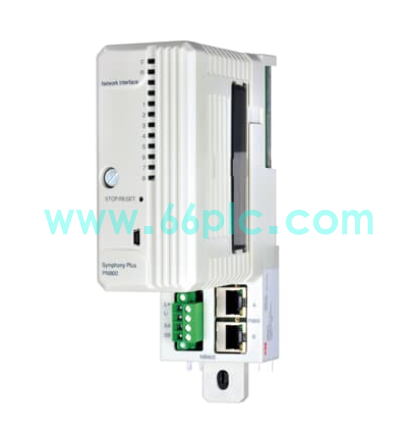

The ABB PNI800 is a dedicated high-reliability plant network interface communication module designed for the ABB PN800 real-time control network and Symphony Plus SD series automation systems. Serving as the core network gateway and data interaction bridge, it realizes bidirectional real-time communication between upper HMI, SCADA, engineering workstations and field SD series controllers. It supports standard industrial network redundancy protocols, providing stable, low-latency data transmission and system docking functions for medium and large-scale industrial process control systems.

Main Specifications

1. Full Part Number: PNI800; Product Type: PN800 series industrial plant network interface communication module
2. Applicable System: ABB Symphony Plus SD system, PN800 real-time control network and process automation platform
3. Core Function: Network protocol conversion, real-time data transmission, workstation docking and redundant network scheduling
4. Protocol Compliance: Support IEC 62439 PRP parallel redundancy protocol for zero-latency network switching
5. Network Performance: High-speed real-time data transmission with low delay, ensuring synchronous system data interaction
6. Docking Objects: Compatible with upper engineering PC, HMI/SCADA workstation and field SD series controllers
7. License Requirement: Support full function activation via independent PNI800SWLIC-01 software license key
8. System Expansion: Support multi-node network expansion and multi-device parallel communication management
9. Diagnosis Function: Built-in network link self-diagnosis, abnormal alarm and communication status recording
10. Structural Feature: Compact modular design for flexible cabinet installation and system integration
11. Surface Treatment: Industrial conformal coating for dust-proof, moisture-proof and anti-aging performance
12. Operational Reliability: Strict industrial network certification, low failure rate for long-term system communication tasks

Core Functions

1. Act as the dedicated network gateway interface unit for ABB PN800 control network systems.
2. Establish bidirectional real-time communication connection between upper workstations and field controllers.
3. Support PRP redundant network operation to achieve bumpless switching and fault-tolerant communication.
4. Transmit field operating data and control commands to ensure synchronous system data interaction.
5. Enable remote online configuration, program debugging and system parameter modification functions.
6. Real-time monitor network link status, automatically identify and report communication abnormalities.
7. Support multi-device network expansion to meet large-scale system communication scheduling requirements.
8. Guarantee continuous, stable and high-speed network operation of industrial automation control systems.

Application Scenarios

1. Power plant thermal control systems and Symphony Plus SD platform network communication scenarios
2. Petrochemical and chemical process industrial PN800 real-time control network integration projects
3. Industrial automation HMI/SCADA upper computer docking and remote monitoring systems
4. Industrial sites requiring high-reliability redundant network and low-latency data transmission
5. Old ABB PN800 network interface module replacement and system networking upgrading projects
6. Harsh industrial environments with electromagnetic interference and long-cycle continuous network operation
7. All process automation control applications based on ABB Symphony Plus SD system architecture
