Product Description

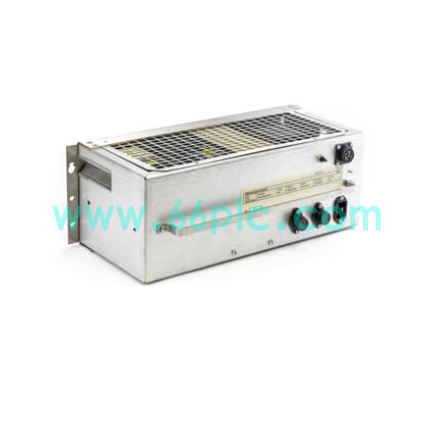

The ABB SA161 with part number 3BSE003387R1 is a high-reliability industrial AC-DC power supply unit designed for ABB industrial distributed control systems and automation rack equipment. As a dedicated power conversion and power distribution core module, it converts 115VAC industrial alternating current into stable 24VDC direct current, providing continuous and purified operating power for system controllers, I/O modules and communication units. It serves as the stable power foundation to ensure long-term stable and reliable operation of the entire industrial automation control rack.

This industrial-grade power supply module features a standard 10A large-current output capacity, meeting the full-load power demand of multi-module combined racks. It adopts professional power conversion circuit design with high conversion efficiency, low heat generation and strong load adaptability. Built-in complete overcurrent, overvoltage, short-circuit and surge protection mechanisms can automatically isolate abnormal power signals and protect rear-end precision control hardware from electrical damage. Equipped with intuitive operating status indicators, it supports real-time working state feedback and rapid fault judgment. Adopting standard rack-mounted modular structure and conformal coating treatment, it has excellent dust-proof, moisture-proof and anti-electromagnetic interference performance, adapting to harsh industrial cabinet environments and supporting 24/7 long-term uninterrupted power supply operation.

Main Specifications

1. Full Part Number: SA161, 3BSE003387R1; Product Type: Industrial dedicated AC-DC power supply unit module
2. Applicable System: ABB industrial distributed control system, automation rack and process control platform
3. Core Function: AC-DC power conversion, stable DC power output, power purification and circuit fault protection
4. Input Specification: Standard 115VAC industrial alternating current input
5. Output Specification: Stable 24VDC direct current output with rated 10A large current capacity
6. Conversion Performance: High power conversion efficiency, low power consumption and low operating heat generation
7. Protection Mechanism: Integrated overcurrent, overvoltage, short-circuit and transient surge multi-stage protection
8. Fuse Configuration: Built-in 10A dedicated safety fuse for over-current overload protection
9. Status Indication: Onboard LED indicators for real-time power supply operating status feedback
10. Load Adaptability: Strong load driving capability, supporting full-load stable operation of multi-module racks
11. Surface Treatment: Industrial conformal coating for dust-proof, moisture-proof and anti-aging performance
12. Operational Reliability: Strict industrial aging tests, low failure rate for long-term system power guarantee tasks

Core Functions

1. Act as the core AC-DC power conversion and power supply unit for ABB industrial control racks.
2. Convert 115VAC industrial alternating current into stable 24VDC standardized operating power.
3. Provide continuous, low-ripple purified DC power for controllers, I/O and communication modules.
4. Support 10A high-current output to meet full-load power demand of integrated automation racks.
5. Trigger automatic protection isolation under power anomalies to protect rear-end control hardware.
6. Real-time display power supply working status to facilitate on-site inspection and rapid troubleshooting.
7. Maintain stable power output under complex industrial voltage fluctuation conditions.
8. Guarantee uninterrupted and stable operation of industrial process control automation systems.

Application Scenarios

1. Power plant industrial control cabinet DCS rack stable power supply and distribution systems
2. Petrochemical and chemical process automation equipment power guarantee platforms
3. Metallurgy, water treatment and manufacturing industrial control system power supply scenarios
4. Industrial sites requiring 24VDC high-current stable power supply for control modules
5. Old ABB automation rack power module replacement and system power stability upgrading projects
6. Harsh industrial environments with voltage fluctuation, dust pollution and electromagnetic interference
7. All industrial automation control applications based on ABB modular rack architecture
