Product Description

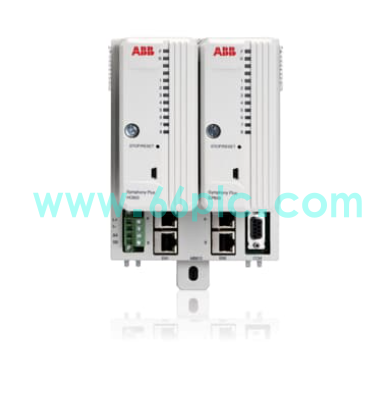

The ABB HC800 is a high-performance central control processor module belonging to the ABB HPC800 industrial automation system. Serving as the core logic operation and system scheduling unit of HPC800 control racks, it undertakes industrial program execution, complex algorithm calculation, multi-point I/O data processing and network communication management tasks. As the key master control core of medium and large-scale automated production systems, it supports massive logic block operation and stable system scheduling, ensuring high-precision and real-time execution of industrial process control strategies.

This industrial-grade processor module adopts advanced dual-core high-speed processing architecture with powerful algorithm operation capability, supporting up to 30,000 function blocks for complex industrial logic and PID loop control. It integrates native Modbus TCP communication protocol, enabling efficient and stable data interaction with up to 125 slave devices and upper SCADA monitoring systems. The module supports redundant configuration to eliminate single-point failure risks, greatly improving system operational stability. Adopting compact modular structure, it features small footprint and lightweight design for flexible cabinet installation. With conformal coating, wide-temperature resistance and enhanced EMC anti-interference design, it adapts to harsh industrial environments and supports 24/7 long-term continuous unattended operation.

Main Specifications

1. Full Part Number: HC800; Product Type: HPC800 series industrial high-performance central control processor module
2. Applicable System: ABB HPC800 industrial automation platform, process control and intelligent monitoring system
3. Core Function: Industrial logic program execution, complex algorithm operation, I/O data scheduling and multi-device communication management
4. Processing Performance: Dual-core high-speed processor, supporting up to 30,000 function blocks concurrent operation
5. Communication Protocol: Built-in standard Modbus TCP protocol, supporting multi-device network docking
6. Slave Capacity: Stable connection and data management for up to 125 slave equipment nodes
7. Redundancy Support: Compatible with system redundant configuration for bumpless switching and fault tolerance
8. Control Capability: Efficient execution of sequential logic, PID closed-loop regulation and advanced process algorithms
9. Diagnosis Function: Built-in system self-diagnosis mechanism for hardware status monitoring and fault recording
10. Structural Feature: Compact lightweight modular design for space-saving installation and flexible expansion
11. Surface Treatment: Industrial conformal coating for dust-proof, moisture-proof and anti-aging performance
12. Operational Reliability: Strict industrial certification and aging tests, low failure rate for long-term core control tasks

Core Functions

1. Act as the core master processor unit for ABB HPC800 series industrial control system racks.
2. Execute user-defined industrial control programs and stably run complex process logic algorithms.
3. Complete high-speed collection, sorting and calculation of field I/O operating data.
4. Realize stable Modbus TCP network communication and multi-slave device synchronous linkage control.
5. Support redundant hot-backup operation to ensure zero interruption of system control tasks.
6. Perform real-time system self-diagnosis, fault identification and operating status recording.
7. Unifiedly schedule system resources to support large-scale multi-loop automatic control operation.
8. Guarantee high-efficiency, accurate and stable operation of industrial automation control systems.

Application Scenarios

1. Petrochemical, chemical and energy industry complex process automation control systems
2. Power plant auxiliary equipment, water treatment and industrial public facility monitoring platforms
3. Metallurgy, manufacturing and heavy-duty industrial automated production line core control scenarios
4. Industrial sites requiring massive logic operation and high-reliability redundant control
5. Old ABB HPC800 system processor module replacement and automation system upgrading projects
6. Harsh industrial environments with temperature fluctuation, vibration and strong electromagnetic interference
7. All industrial automatic control applications based on ABB HPC800 system architecture
