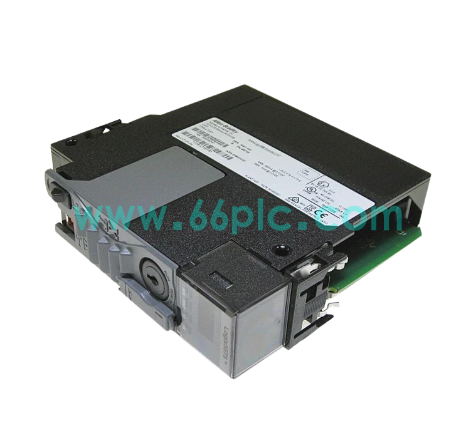

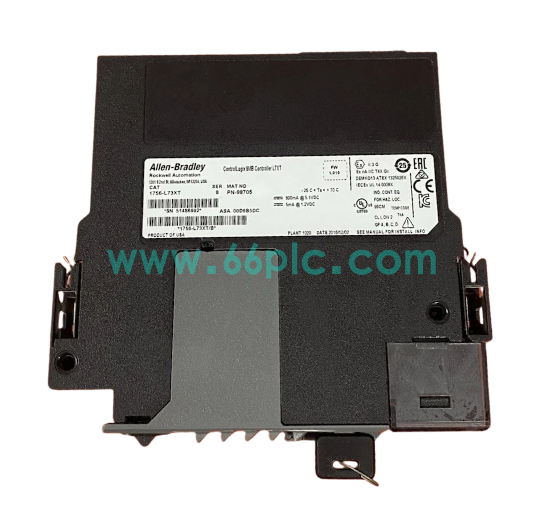

Allen Bradley 1756-L73XT ControlLogix-XT PLC Controller

Allen Bradley 1756-L73XT is an extreme environment ControlLogix 5570 programmable automation controller with 8MB user memory. Designed for harsh industrial sites, it adopts conformal coating and supports wide temperature range operation for process and discrete control applications.

This controller comes with built-in Ethernet port and USB programming port, supporting multi-task programming, motion control and redundant system configuration. It is widely used as spare replacement parts for oil & gas, mining and outdoor industrial automation control systems.

Main Specifications

1. Brand: Allen Bradley (Rockwell Automation); Model: 1756-L73XT; Type: ControlLogix-XT PLC Controller
2. User Memory: 8MB; I/O Memory: 0.98MB; Built-in 1GB SD card; Power consumption: 2.5W
3. Operating Temperature: -25℃ ~ +70℃; Conformal coated PCB for corrosive and dusty environments
4. Core Functions: Logic control, motion control, network communication, data processing, redundant backup
5. Port: 10/100/1000Mbps Ethernet port, USB programming port; Max I/O support: 128,000 points
6. Compatible Chassis: 1756 ControlLogix series rack; Support RIUP hot swap function
7. Supply Status: Industrial spare part for harsh environment PLC system maintenance and replacement

Core Functions

1. Execute multi-task control programs, handle discrete, process and motion control instructions simultaneously.
2. High-speed Ethernet communication supports connection with HMI, drives and other PLC controllers for data exchange.
3. Conformal coating design protects internal circuit from dust, moisture and corrosive gas in harsh sites.
4. Support controller redundant configuration, realize seamless switch to avoid system shutdown caused by single controller fault.
5. Local USB port facilitates program download, online monitoring and fault diagnosis on site.
6. Hot swap compatible, can be replaced in powered chassis without powering down the whole rack system.

Application Scenarios

1. Main control unit for outdoor, mining, oil & gas and other harsh environment industrial automation control systems.
2. Fault controller replacement and routine maintenance of existing ControlLogix-XT automation racks.
3. Automation system retrofit and upgrade for chemical plants, remote pumping stations and field process equipment.
4. Emergency replacement for controller breakdown to restore production line logic control function.
5. Spare parts stocking for maintenance teams using Rockwell ControlLogix harsh environment control products.
6. Aftermarket spare supply for industrial automation project integration and field control cabinet transformation.

FAQ

1. Q: What is the difference between 1756-L73XT and standard 1756-L73?
   A: 1756-L73XT has conformal coating and wider temperature range for harsh environment, standard L73 is for normal indoor cabinet.
2. Q: What are typical controller failure symptoms?
   A: Controller cannot go to run mode, Ethernet communication failure, program loss, rack fault alarm.
3. Q: How to complete commissioning and diagnosis?
   A: Connect USB or Ethernet, use Studio5000 software to download program, monitor tags and check controller fault log.
