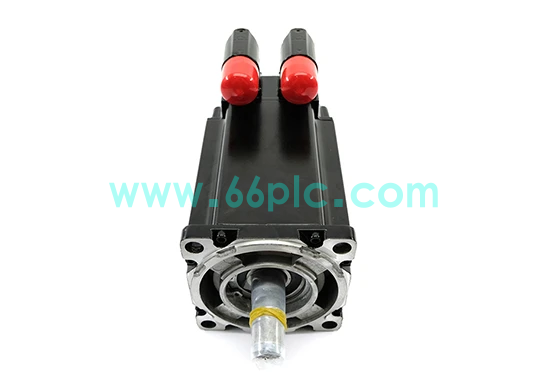

Allen Bradley MPL-B430P-MJ72AA MP Series Brushless Servo Motor

Allen Bradley MPL-B430P-MJ72AA is a low inertia brushless AC servo motor from Rockwell MP series. It delivers high dynamic response with multi-turn high-resolution absolute encoder, supporting precise positioning and fast acceleration & deceleration for automated motion control systems.

This servo motor runs on 480V AC power supply with rated speed up to 5000 RPM. It adopts keyed shaft and rotatable SpeedTEC DIN connector, no built-in brake. It matches Kinetix servo drives widely used for machine automation retrofitting and spare replacement.

Main Specifications

1. Brand: Allen Bradley (Rockwell Automation); Model: MPL-B430P-MJ72AA; Type: Low Inertia Brushless Servo Motor
2. Rated Voltage: 480V AC; Rated Speed: 5000 RPM; Frame Size: Frame 4, 115mm
3. Core Functions: High-precision positioning, fast dynamic motion control, absolute position feedback, speed and torque regulation
4. Feedback: Multi-turn high resolution absolute encoder; Shaft: Keyed shaft extension; No brake
5. Connector: SpeedTEC DIN right-angle 180° rotatable quick connector; Stack length: 76.2mm
6. Compatible Drive: Kinetix 2000, Kinetix 6000, Kinetix 7000 and Ultra3000 servo drives
7. Supply Status: Industrial automation spare part for servo axis maintenance and equipment upgrade

Core Functions

1. Low inertia rotor design enables rapid acceleration and deceleration to meet high dynamic motion requirements of automation machines.
2. Multi-turn absolute encoder provides accurate position feedback, retaining position data after power loss without homing operation.
3. Stable torque output at high rotating speed, supporting closed-loop control of speed, torque and position synchronously.
4. Rotatable SpeedTEC quick connector simplifies wiring installation and maintenance work on machine cabinets.
5. Compact mechanical structure with good thermal dissipation performance for continuous long-time operation in factory environments.
6. Perfect matching with Rockwell Kinetix servo drives to build reliable multi-axis motion control solution.

Application Scenarios

1. Multi-axis motion control for CNC machines, packaging machinery, textile equipment and automated production lines.
2. Spare motor replacement and routine maintenance of existing Rockwell Kinetix motion control systems.
3. Automation equipment upgrading and technical transformation for factory production lines.
4. Emergency replacement for servo motor breakdown of high-speed automated processing equipment.
5. Spare parts stocking for automation maintenance teams using Allen Bradley motion control products.
6. Aftermarket spare supply for machinery automation retrofit projects and system integration services.

FAQ

1. Q: Does Allen Bradley MPL-B430P-MJ72AA servo motor come with built-in brake?
   A: This model has no brake. If holding brake is required, please select other corresponding MPL series variants.
2. Q: What are common servo motor failure symptoms?
   A: Encoder feedback error, motor overheating, abnormal noise, shaft seizure, connector wiring damage.
3. Q: How to perform commissioning and diagnosis?
   A: Check power and encoder wiring, verify servo drive configuration, run motor jog test and check encoder position feedback.
