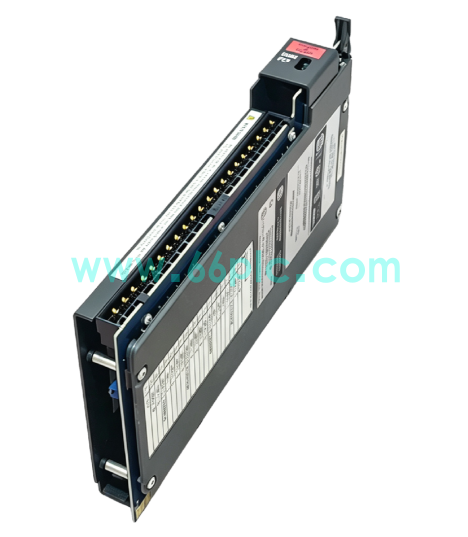

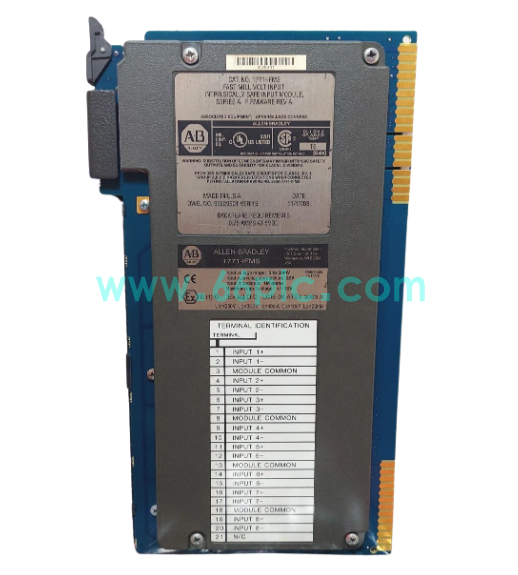

Allen Bradley 1771-IFMS Millivolt Input Module

Allen Bradley 1771-IFMS is an 8-channel intrinsically safe fast millivolt analog input module for PLC-5 1771 I/O rack. It is designed for low-level millivolt signal acquisition in hazardous areas, converting sensor mV signals into digital data via 12-bit high resolution A/D conversion.

This module adopts conformal coated PCB and differential input design with intrinsic safety certification. It supports block transfer communication with PLC processor, 14.5ms full 8-channel update rate. It is discontinued original part, widely used as spare replacement for legacy process control systems.

Main Specifications

1. Brand: Allen Bradley (Rockwell Automation); Model: 1771-IFMS; Type: Intrinsically Safe Millivolt Input Module
2. Compatible System: Allen Bradley PLC-5, 1771 universal I/O chassis; Required wiring arm: 1771-WG
3. Core Functions: Millivolt signal acquisition, A/D conversion, intrinsic safety isolation, block transfer data transmission
4. Channel: 8 differential input channels; Input range: 0~50mV DC; Resolution: 12-bit
5. Update Time: 14.5ms for all 8 channels; Accuracy: 0.1% full scale; Backplane current: 750mA
6. Feature: Conformal coated, intrinsically safe design, binary or BCD data format selectable
7. Supply Status: Discontinued original industrial spare part for legacy PLC-5 system maintenance

Core Functions

1. Collect low-level millivolt signals from thermal couples and strain gauge sensors in hazardous explosion-proof zones.
2. Intrinsic safety circuit limits energy output to field side, avoiding ignition risk for flammable gas environment.
3. High speed sampling completes full 8-channel conversion within 14.5ms, captures fast-changing process signals.
4. Block transfer communication reads all channel data and module status in one transmission, reducing PLC scan load.
5. Conformal coated circuit board provides reliable operation under high humidity, dust and corrosive atmosphere.
6. Support binary or BCD data format selection, flexible data matching with legacy PLC-5 processor program.

Application Scenarios

1. Millivolt signal acquisition for oil, gas and chemical process control in hazardous classified areas.
2. Fault module replacement and routine maintenance of existing PLC-5 1771 I/O rack control systems.
3. Legacy process production line maintenance, extending service life of old Rockwell automation control platform.
4. Emergency replacement for analog input module failure to restore field sensor signal collection.
5. Spare parts stocking for maintenance teams maintaining PLC-5 systems in petrochemical plants.
6. Aftermarket spare supply for old control cabinet overhaul and industrial process system renovation projects.

FAQ

1. Q: Can 1771-IFMS work without 1771-WG wiring arm?
   A: No, 1771-WG wiring arm is mandatory for field cable connection and intrinsic safety installation.
2. Q: What are typical module failure symptoms?
   A: Channel reading drift, no signal reading, backplane communication error, module fault indicator lighting.
3. Q: How to complete commissioning and diagnosis?
   A: Check field intrinsic safety wiring, verify backplane connection, configure block transfer program and test each channel millivolt reading.
