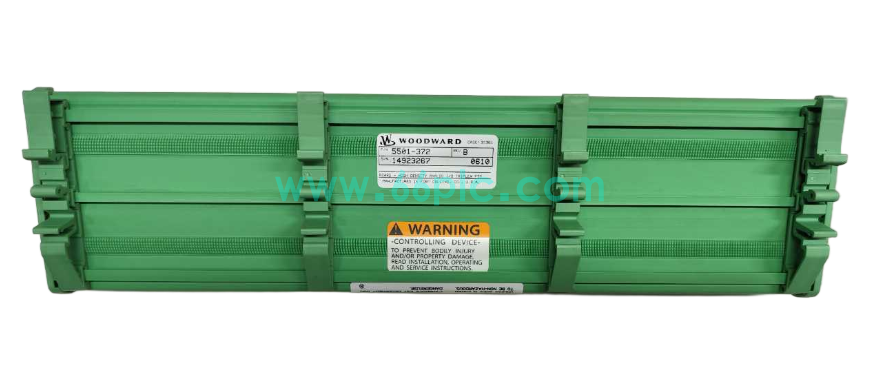

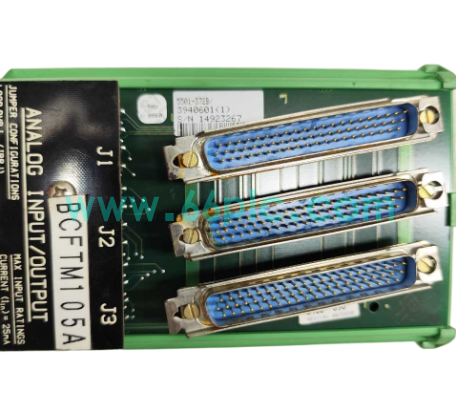

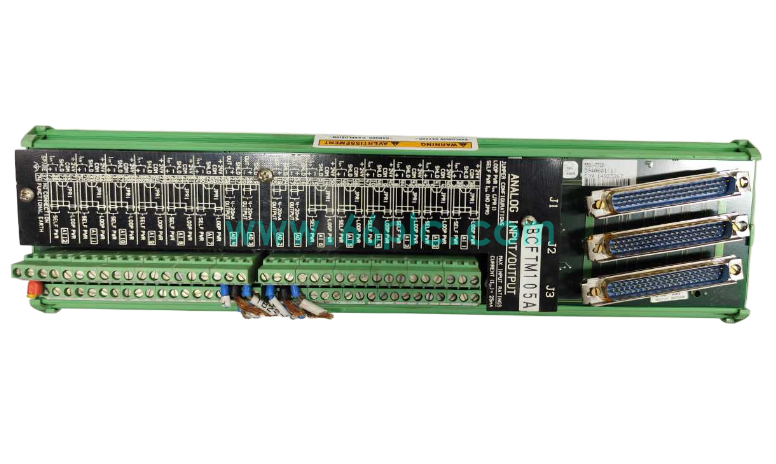

Woodward 5501‑372 Digital I/O Module

The Woodward 5501‑372 is a rack‑mount digital input‑output module designed for Woodward MicroNet and MicroNet Plus turbine governor control systems. It acquires contact status from breakers, auxiliary switches and field interlock devices, and outputs relay control signals for trip logic, alarm indication and sequence control, serving as critical digital signal interface between main controller and field equipment in power generation and compressor control applications.

This plug‑in module connects to the MicroNet chassis backplane bus, providing galvanic isolation for field wiring and supporting per‑channel hardware self‑diagnosis with LED status indicators. It handles dry‑contact input signals and relay output commands for turbine protection and interlock logic. Original production has been discontinued. It is widely supplied as aftermarket spare parts for gas‑steam turbine control cabinet maintenance and legacy governor system retrofit projects.

Main Specifications

1. Brand:Woodward; Model:5501‑372; Type:Digital I/O Module
2. Compatible Platform:Woodward MicroNet / MicroNet Plus turbine governor control chassis
3. Signal Configuration:Multiple galvanic‑isolated digital inputs, Form‑C relay dry‑contact outputs
4. Power Supply:24 VDC auxiliary power supplied from control rack backplane
5. Isolation Performance:Galvanic isolation between field side and internal controller circuits
6. Diagnostic Feature:Per‑channel self‑diagnosis, LED status indicators for operation and fault feedback
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Capture contact status signals from circuit breakers, auxiliary switches and field interlock devices and transmit status data to MicroNet main CPU controller.
2. Receive logic commands from main governor controller and output Form‑C dry‑contact signals for tripping, alarm annunciation and external interlock control sequences.
3. Provide electrical isolation to suppress field‑side electromagnetic interference and protect core turbine control hardware inside the rack cabinet.
4. Communicate with main controller via chassis backplane bus, upload channel status and fault diagnostic information in real‑time.
5. Detect signal‑channel and hardware failures, trigger fault alarm and display working state via on‑board LED indicators for on‑site maintenance reference.
6. Serve as critical digital signal‑interface hardware for Woodward MicroNet turbine governor control systems in power plants and heavy‑industry facilities.

Application Scenarios

1. Gas turbine, steam turbine generator units, oil‑gas compression equipment and other sites using Woodward MicroNet governor control systems.
2. Spare digital I/O module replacement and routine maintenance of existing Woodward MicroNet turbine control cabinets.
3. Technical renovation and digital signal‑channel expansion upgrade of legacy turbine automation control systems.
4. On‑site troubleshooting and replacement of faulty I/O modules on continuously running turbine and compressor units.
5. Spare‑parts stocking for system integrators and power‑plant professional maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete Woodward MicroNet series turbine control hardware.

FAQ

1. Q:Can Woodward 5501‑372 work as standalone unit?
   A:It must be installed inside compatible MicroNet chassis and cooperate with main CPU controller, independent operation is not supported.
2. Q:What symptoms appear when module fails?
   A:Loss of corresponding digital input‑output channels, missing equipment status feedback and failure to execute trip or interlock commands may occur.

3. Q:Which software is used for configuration?
   A:Parameter setting, monitoring and diagnostic work are completed with Woodward official configuration software together with host MicroNet controller.
