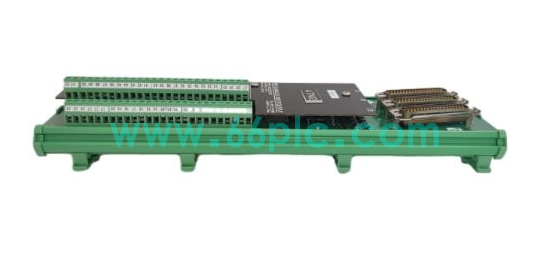

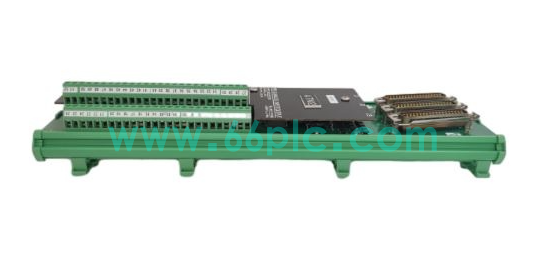

Woodward 5501‑365 Analog Input‑Output Module

The Woodward 5501‑365 is a rack‑mount analog I/O module for Woodward MicroNet and MicroNet Plus turbine governor control systems. It serves as signal interface between main controller and field transmitters, pressure sensors and hydraulic actuator devices, collecting process analog signals and outputting analog drive commands for turbine speed regulation and auxiliary process closed‑loop control in power generation and oil‑gas industrial sites.

This plug‑in module connects to MicroNet chassis backplane bus, providing galvanic isolation for field signals and supporting per‑channel hardware diagnostics. It accepts configurable 4‑20mA / 0‑10V analog signals for process monitoring and actuator driving. Original production has been discontinued. It is widely supplied as aftermarket spare parts for gas‑steam turbine control cabinet maintenance and industrial governor system retrofit projects.

Main Specifications

1. Brand:Woodward; Model:5501‑365; Type:Analog Input‑Output Module
2. Compatible Platform:Woodward MicroNet / MicroNet Plus turbine governor control chassis
3. Signal Range:Configurable analog input 4‑20mA / 0‑10V, 3 channels analog output 0‑10VDC
4. Power Supply:24 VDC auxiliary power supplied from control rack backplane
5. Isolation Performance:Galvanic isolation between field side and internal controller circuits
6. Diagnostic Feature:Per‑channel self‑diagnosis, LED status indicators for operation and fault feedback
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Acquire analog process signals from field pressure, temperature and flow transmitters and convert raw signals into digital data for main controller algorithm calculation.
2. Receive closed‑loop control commands from MicroNet CPU and output analog drive signals to hydraulic actuators and governing valve positioners.
3. Provide electrical isolation to suppress field‑side electromagnetic interference and protect core turbine control hardware inside the rack cabinet.
4. Communicate with main controller via chassis backplane bus, upload measurement values and channel fault diagnostic information in real‑time.
5. Detect signal over‑range and hardware channel failures, trigger fault alarm and display status via on‑board LED indicators for on‑site maintenance reference.
6. Serve as critical field signal interface hardware for Woodward MicroNet turbine governor control systems in power and heavy‑industry plants.

Application Scenarios

1. Gas turbine, steam turbine generator units, oil‑gas compression equipment and other sites using Woodward MicroNet governor control systems.
2. Spare analog I/O module replacement and routine maintenance of existing Woodward MicroNet turbine control cabinets.
3. Technical renovation and analog signal‑channel expansion upgrade of legacy turbine automation control systems.
4. On‑site troubleshooting and replacement of faulty I/O modules on continuously running turbine and compressor units.
5. Spare‑parts stocking for system integrators and power‑plant professional maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete Woodward MicroNet series turbine control hardware.

FAQ

1. Q:Can Woodward 5501‑365 work as standalone unit?
   A:It must be installed inside compatible MicroNet chassis and cooperate with main CPU controller, independent operation is not supported.
2. Q:What symptoms appear when module fails?
   A:Loss of field analog measurement signals, actuator drive failure, system fault alarm and abnormal turbine governing actions may occur.

3. Q:Which software is used for configuration?
   A:Parameter setting, monitoring and diagnostic work are completed with Woodward official configuration software together with host MicroNet controller.
