Product Description

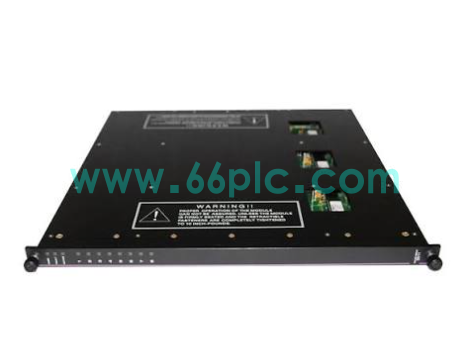

The Triconex 3511 is a high-integrity TMR pulse input safety module designed for Triconex triple modular redundant Safety Instrumented Systems (SIS). As a dedicated high-speed pulse signal acquisition unit for critical industrial safety control racks, it is engineered to precisely capture frequency, speed and pulse count signals from field rotating equipment and flow devices, providing ultra-reliable measurement data for turbine protection, flow monitoring and mechanical condition safety interlock logic.

Main Specifications

1. Full Part Number: 3511; Product Type: TMR architecture high-precision pulse input safety module
2. Applicable System: Triconex Tritech triple redundant SIS safety instrumented systems and critical process control platforms
3. Core Function: Field pulse/frequency/speed signal high-precision acquisition, signal filtering, TMR fault-tolerant voting and health diagnosis
4. Redundancy Design: Triple Modular Redundancy (TMR) three-channel independent parallel sampling and voting architecture
5. Channel Configuration: 8 fully isolated non-commoned differential pulse input channels for multi-point synchronous acquisition
6. Measurement Performance: 16-bit high resolution, frequency range 1Hz–10kHz, precision up to ±0.01% (1000Hz–20000Hz)
7. Signal Adaptation: Compatible with field speed sensors, pulse encoders and pulse-type flow transmitters
8. Diagnostic Capability: Full-channel real-time self-diagnosis for signal loss, circuit faults and abnormal pulse status
9. Fault Tolerance: Single-channel fault isolation without system shutdown, ensuring continuous safety monitoring
10. Reliability: Safety-certified rugged modular design with wide-temperature adaptability for long-cycle industrial safety tasks

Core Functions

1. Act as the dedicated high-precision pulse signal acquisition core for Triconex SIS triple redundant safety racks.
2. Accurately collect field pulse, frequency and rotational speed signals from key industrial process equipment.
3. Execute TMR three-channel fault-tolerant voting to ensure credible and consistent measurement results.
4. Support multi-mode signal filtering to suppress on-site interference and avoid abnormal data fluctuation.
5. Realize real-time channel health diagnosis to support fast fault location and predictive maintenance.
6. Provide reliable speed and flow parameter data for equipment safety interlock and overload protection logic.

Application Scenarios

1. Power plant turbine, fan and pump unit rotational speed safety monitoring and protection systems
2. Petrochemical and oil & gas industry pulse-type flow meter high-precision measurement scenarios
3. High-risk process equipment encoder signal acquisition and mechanical condition safety supervision platforms
4. Replacement and upgrading of aging Triconex series pulse input safety modules
5. Industrial safety sites requiring TMR redundancy and high-stability pulse/frequency parameter monitoring
