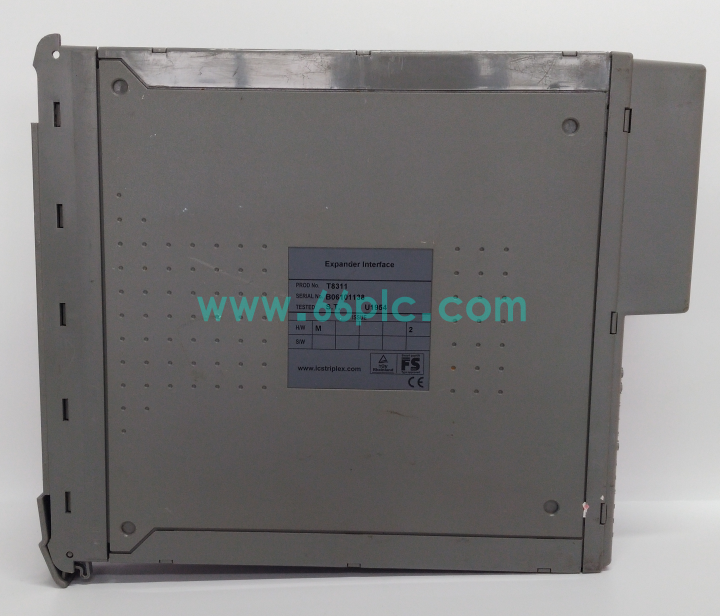

ICS TRIPLEX T8311 Trusted TMR Expander Interface Module

ICS TRIPLEX T8311 is a TMR expander interface module for the Trusted safety‑critical control system. It serves as main interface between main chassis and expander chassis, realizing high‑speed expander‑bus data transmission to expand I/O capacity for safety instrumented systems.

This rack‑mount module adopts hardware fault‑tolerant TMR architecture with SIL3 safety certification, supporting hot‑swap function. It is widely used as replacement spare‑part for on‑site troubleshooting, equipment maintenance and safety system retrofit projects.

Main Specifications

• Brand: ICS TRIPLEX (Rockwell Automation)
• Model: T8311
• Product Type: TMR Expander Interface Module
• Bus Rate: Expander bus data rate up to 250Mbps
• Power Supply: 20‑32 VDC backplane power supply
• Safety Level: IEC 61508 SIL3 TÜV safety certification
• Architecture: 3‑2‑0 TMR hardware fault‑tolerant design
• Feature: Support hot‑swap without system shutdown
• Mounting: Trusted T8300 series rack‑mount installation
• Operating Temperature Range:‑5℃ ~ +60℃
• Application: Spare‑part replacement for safety‑related automation equipment

Core Functions

• Realize high‑speed data communication between main chassis and expander chassis via expander bus
• Expand system I/O capacity by connecting multiple expander chassis for large‑scale safety‑control projects
• TMR fault‑tolerant architecture masks single‑point hardware faults to guarantee system safety operation
• Support hot‑swap, allows module replacement without stopping the whole safety system
• Front‑panel LED indicators display module running status and fault alarm information
• Process and forward mass I/O data between main controller and extended I/O modules
• Meet strict safety requirements of SIS system, avoid communication failure of safety loops
• Standard rack‑mount structure supports quick disassembly for on‑site spare‑part replacement

Application Scenarios

• Petrochemical plant SIS safety instrumented system cabinet configuration
• Power‑plant safety interlock system expander‑chassis connection projects
• On‑site expander interface module fault replacement and daily Trusted system maintenance
• Safety‑instrumented system reconstruction and I/O capacity expansion upgrade projects
• Legacy ICS TRIPLEX Trusted safety‑system spare‑parts replacement scenarios
• Spare‑parts inventory backup for large‑scale safety‑control unit cabinets
• Heavy‑industry safety‑related automation cabinet hardware maintenance supporting projects
