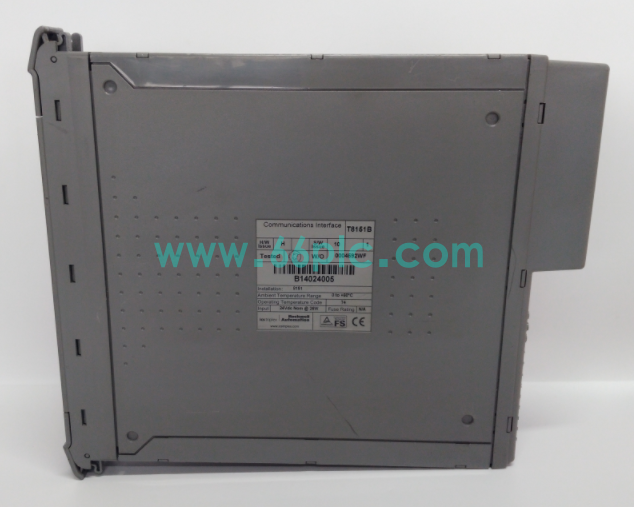

ICS TRIPLEX T8151B Trusted Communications Interface Module

ICS TRIPLEX T8151B is a high‑reliability communication interface module for the Trusted TMR safety control system. Equipped with dual‑Ethernet and multi‑serial channels, it acts as data bridge between TMR controller, engineering workstation and third‑party field devices for safety‑critical industrial control systems.

This rack‑mount safety communication module meets SIL3 safety standard with redundant network design. It is widely used as replacement spare‑part for on‑site troubleshooting, equipment maintenance and safety system retrofit projects.

Main Specifications

• Brand: ICS TRIPLEX (Rockwell Automation)
• Model: T8151B
• Product Type: Trusted Communications Interface Module
• Network Port: Dual 10/100Mbps Ethernet ports for redundancy
• Serial Port: Four isolated RS232/RS422/RS485 communication channels
• Supported Protocol: Modbus TCP, Modbus RTU, TCP/IP, SOE sequence‑of‑events
• Safety Level: IEC 61508 SIL3 safety certification
• Power Supply: Redundant 24VDC backplane power supply
• Mounting: Trusted system rack‑mount installation
• Operating Temperature Range: Industrial wide temperature range
• Application: Spare‑part replacement for safety‑related automation equipment

Core Functions

• Realize high‑speed data interaction between TMR safety controller and external network devices
• Dual‑Ethernet redundant design supports network fail‑over to avoid single‑point communication failure
• Multi‑isolated serial channels connect third‑party instruments and Modbus‑compliant field equipment
• Support SOE sequence‑of‑events data recording for safety accident post‑analysis
• Provide front‑panel diagnostic interface and status indicators for quick on‑site troubleshooting
• Reduce communication load of main TMR processor and improve overall system operating efficiency
• Support online parameter configuration without system shutdown during maintenance operation
• Rack‑mount structure supports quick disassembly and spare‑part replacement for safety‑system cabinet
• SIL3‑grade hardware design guarantees stable communication performance for safety‑critical loops

Application Scenarios

• Petrochemical plant safety instrumented system (SIS) cabinet configuration
• Power‑plant safety interlock control system communication supporting projects
• On‑site communication module fault replacement and daily maintenance for Trusted TMR system
• Safety instrumented system renovation, upgrade and technical transformation projects
• Legacy ICS TRIPLEX Trusted system spare‑parts replacement scenarios
• Spare‑parts inventory backup for safety‑critical production unit control cabinets
• Heavy‑industry safety‑related automation cabinet hardware maintenance supporting projects
