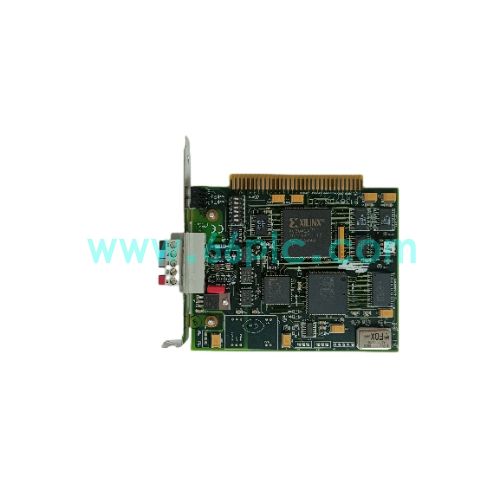

PROSOFT 5136-DN-PC DeviceNet PC Communication Card

PROSOFT 5136-DN-PC is a DeviceNet network communication card designed for the ISA bus of industrial PCs. It acts as a DeviceNet master or slave node, enabling PC based application software to exchange data with DeviceNet field devices for industrial network monitoring and control.

This card supports DeviceNet protocol with automatic network scanning and peer-to-peer communication. It is equipped with software development kit for custom application programming, widely used as spare replacement parts for PC based DeviceNet network maintenance and industrial control system renovation projects.

Main Specifications

1. Brand: PROSOFT; Model:5136-DN-PC; Type: DeviceNet PC Communication Card
2. Bus interface: ISA bus; Network: DeviceNet master / slave node
3. Data transfer: Automatic network scanning, peer-to-peer communication support
4. Software: DeviceNet protocol library, SDK for custom application development
5. Operating Temp: 0℃ ~ +60℃; Humidity:5%~95% non-condensing
6. LED indicators: Card and network status; Address and baud rate DIP switch setting
7. Supply Status: Legacy spare communication card for PC based DeviceNet systems

Core Functions

1. Enable PC application to act as DeviceNet master for reading and writing field device data.
2. Automatic network scan function to identify and configure nodes on the DeviceNet bus.
3. Support peer-to-peer communication between DeviceNet devices without master intervention.
4. Provide SDK and protocol library for developing custom monitoring and control programs.
5. Data exchange with HMI, SCADA and other upper computer software via PC.
6. ISA bus plug-in installation, convenient replacement during PC system maintenance.

Application Scenarios

1. PC based DeviceNet network monitoring and configuration in industrial automation.
2. DeviceNet fieldbus data acquisition and control for production line equipment.
3. Replacement of failed DeviceNet communication cards for legacy PC control systems.
4. Spare parts inventory for factory network and automation maintenance teams.
5. Retrofit and integration of DeviceNet network into existing automation platforms.
6. DeviceNet diagnostics and troubleshooting during commissioning of industrial networks.

FAQ

1. Q: What is PROSOFT 5136-DN-PC used for?
   A: It is an ISA bus DeviceNet communication card for industrial PC, acting as master or slave node to exchange data with DeviceNet field devices.
2. Q: What bus interface does this card use?
   A: It is designed for the legacy ISA bus of industrial PCs, not compatible with PCI slots.
3. Q: What software is provided with 5136-DN-PC?
   A: It comes with DeviceNet protocol library and software development kit for building custom monitoring and control applications.
