ProSoft MVI56-PDPMV1 PROFIBUS DPV1 Master Communication Module
MVI56-PDPMV1 is a licensed PROFIBUS DPV1 master communication module developed by ProSoft Technology for Rockwell 1756 ControlLogix PLC racks. Compliant with IEC 61158 standard, it acts as a protocol gateway, realizing bidirectional data exchange between ControlLogix backplane and PROFIBUS DP V0/V1 slave devices including inverters, sensors and remote I/O stations. It supports cyclic process data transmission and acyclic DPV1 parameter read/write, covering real-time control and equipment parameter calibration demands simultaneously.

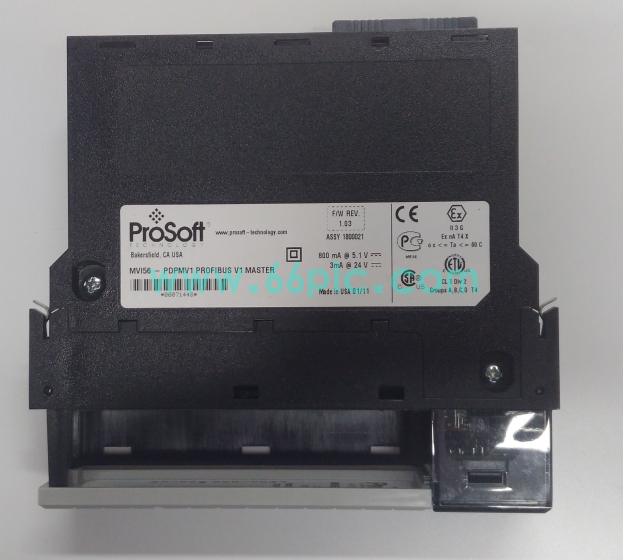

This single-slot rack module is recognized as a standard I/O module by Logix controllers, compatible with both local and remote ControlLogix chassis. It equips RS232 configuration port and PROFIBUS DP DB9 interface, with built-in multi-status LED indicators for real-time fault diagnosis. Supported by ProSoft Configuration Builder software for GSD file import, network topology editing and online slave monitoring, it serves as a core aftermarket spare for retrofitting and maintenance of hybrid Rockwell-PROFIBUS automation systems.
Main Specifications
- Brand: ProSoft Technology; Model: MVI56-PDPMV1; Platform: Rockwell ControlLogix 1756 rack
- Bus Standard: PROFIBUS DP V0/V1 Master, IEC 61158, max baud rate 12 Mbps
- Backplane Load: 800mA @5VDC, 3mA @24VDC; single slot occupation
- Data Capacity: Max 1536 bytes input / 1536 bytes output cyclic data buffer
- Operation Mode: FLEX variable I/O block size & LEGACY fixed size dual modes
- Interfaces: DB9 PROFIBUS DP port, RJ45-RS232 CFG port for configuration
- Operating Environment: 0℃ ~ +60℃, humidity 5%~95% non-condensing, CE certified
- Diagnosis LEDs: Module Status, Backplane ACT, APP Run, Bus Fault, CFG communication
- Matching Hardware: 1756-L7x ControlLogix CPU, ABB/Siemens PROFIBUS slave drives, remote DP I/O modules
Core Functions
- Scan full PROFIBUS DP network cyclically, transmit real-time production data between ControlLogix CPU and field slave equipment via rack backplane.
- DPV1 Class1/Class2 acyclic service support: read/write slave parameters, calibration data and extended diagnostic information without interrupting cyclic control.
- Built-in Sync/Freeze synchronization commands for multi-axis motion control, ensuring synchronous sampling and output of multiple drive units on the bus.
- Online real-time fault diagnosis captures slave offline, bus short-circuit and communication timeout alarms, uploading detailed fault codes to Logix controller for troubleshooting.
- CIPConnect routing allows remote configuration via ControlLogix Ethernet modules, supporting offline project backup and batch parameter modification through PC software.
- Standard 1756 rack unified pin definition enables direct ｄｒｏｐ-in replacement, no chassis wiring modification required during on-site equipment overhaul.
Application Scenarios
- Protocol conversion spare module for Rockwell ControlLogix systems connecting Siemens/ABB PROFIBUS drives in thermal power and hydropower plants.
- DP master communication spare parts for petrochemical, metallurgical and papermaking production lines with mixed-brand PLC and drive equipment.
- Maintenance backup inventory for new energy lithium coating, textile winding and packaging machinery automation control cabinets.
- Matching gateway module cooperating with 1756 series Logix CPU and PROFIBUS DP remote I/O stations for distributed field signal collection.
- Retrofit replacement components for aging ControlLogix systems lacking native PROFIBUS master communication capability.
Global aftermarket spare stock for process industry maintenance workshops maintaining cross-brand Rockwell-PROFIBUS hybrid automation hardware.
