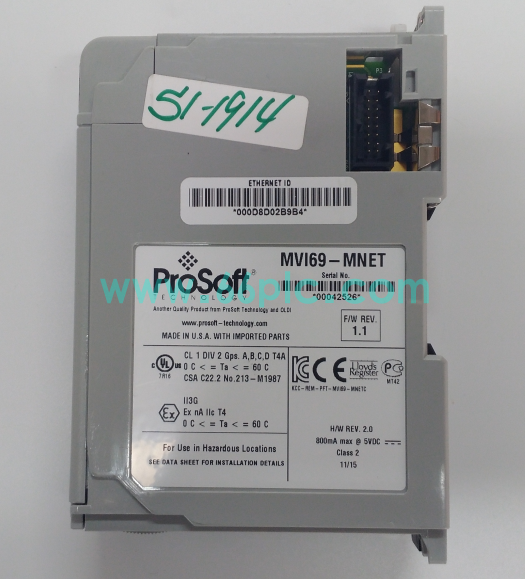

ProSoft MVI69-MNET Modbus TCP/IP Communication Module
MVI69-MNET is an inRAx single-slot Modbus TCP communication adapter developed by ProSoft Technology, compatible with Rockwell CompactLogix 1769 series and MicroLogix 1500 LRP PLC racks. It acts as a protocol gateway, enabling bidirectional data exchange between Logix controllers and Modbus TCP third-party devices including flow meters, inverters, thermal instruments and remote SCADA systems.
This module equips dual independent 10/100Mbps Ethernet RJ45 ports, supporting both Modbus TCP Client and Server modes with up to 100 client commands and 5000 16-bit register data cache. It comes with AOI add-on instructions and web diagnostic page, supporting hot-swap installation without rack power cut, widely used as spare replacement for factory automation Modbus interconnection maintenance and system expansion projects.
Main Specifications
- Brand: ProSoft Technology (inRAx series)
- Model: MVI69-MNET, single 1769 chassis slot
- Backplane Power Draw: 800mA @5VDC, power distance rating 2
- Ethernet Interface: Dual RJ45, auto 10/100 Base-TX Modbus TCP/IP
- Data Buffer: Max 5000 16-bit registers for PLC-Modbus data mapping
- Communication Capacity: Up to 100 Modbus client connections, full client/server dual-mode
- Data Support: Standard Modbus coils/discrete inputs/holding registers, Enron floating point format
- Configuration Tools: ProSoft Configuration Builder, RSLogix 5000 AOI/AOP, built-in web server
- Environmental Range: Operating temp 0℃~60℃, humidity 5%~95% non-condensing
- Core Feature: Hot-swappable, front LED status indicators, full channel fault diagnosis
- Application: Spare part replacement for CompactLogix Modbus TCP interconnection hardware
Core Functions
- Realize bidirectional protocol conversion between CompactLogix backplane bus and Modbus TCP industrial Ethernet
- Client mode actively polls Modbus field instruments, inverters and sensors to upload process data to PLC tags
- Server mode responds to external SCADA/HMI Modbus requests to upload production and equipment operation data
- Dual Ethernet ports support network isolation or redundant wiring to avoid single communication link failure
- 5000 register shared memory realizes asynchronous data transmission to reduce main CPU logic scan load
- Built-in web page for IP setting, real-time communication status monitoring and remote firmware upgrade
- Ready-made AOI ladder logic simplifies tag mapping, fault alarm and communication health diagnosis programming
- Hot-swap design allows online module replacement without halting the whole automation control rack
Application Scenarios
- Water treatment, HVAC and packaging line CompactLogix PLC Modbus instrument interconnection cabinet layout
- Petrochemical, energy plant multi-brand temperature transmitters, flow meter Modbus TCP data collection projects
- On-site faulty communication card replacement and daily Modbus network maintenance of CompactLogix systems
- Old production line automation renovation to add Modbus TCP third-party device access capability
- ProSoft MVI69 series Modbus communication spare parts inventory backup for manufacturing factories
- Process industry PLC and upper-level monitoring system cross-protocol interconnection hardware maintenance projects
