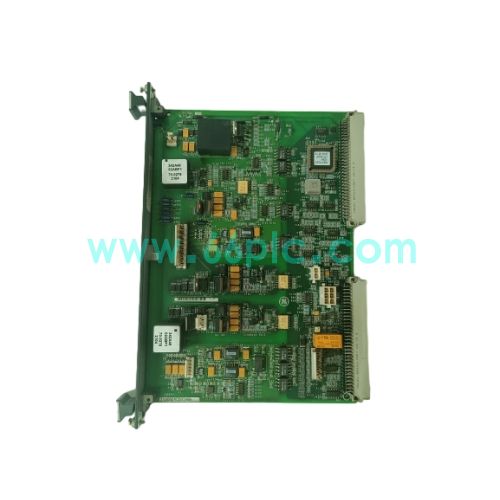

GE IS200ERDDH1ABA Exciter Regulator Dynamic Discharge Board

GE IS200ERDDH1ABA is ERDD Exciter Regulator Dynamic Discharge Board for GE EX2100 excitation system and Mark VI turbine control platform. It provides IGBT gate drive signals and dynamic discharge protection to suppress overvoltage on the DC link, protecting the power bridge unit during generator excitation fault conditions.

This board supports simplex and redundant operating modes. It controls K3 charging relay in simplex configuration and K41 de-excitation relay under redundant setup. It collects bridge voltage and current feedback signals, communicating with DSP control board via VME backplane bus, widely used as spare parts for power plant excitation cabinet maintenance.

Main Specifications

1. Brand: GE; Model: IS200ERDDH1ABA; Type: ERDD Dynamic Discharge Board
2. Compatible System: Mark VI Speedtronic & EX2100 Digital Excitation System
3. Operation Mode: Simplex / Redundant; Relay Control: K3 charging, K41 de-excitation
4. DC Link Voltage Range: 0~1200VDC; Max Discharge Power: 200kW
5. Bus: VME backplane; Power: 24VDC; RTD temperature sensing input
6. Operating Temp: -40℃ ~ +85℃; Humidity:5%~95% non-condensing
7. Supply Status: Legacy spare ERDD board for EX2100 excitation control cabinet

Core Functions

1. IGBT gate drive control for excitation power rectifier bridge and dynamic discharge circuit.
2. DC-link overvoltage protection by fast energy discharge during excitation system faults.
3. Monitor bridge output voltage, current and board temperature through feedback signals.
4. Control charging and de-excitation relay according to simplex or redundant system configuration.
5. Real-time data exchange with DSP controller through VME backplane communication.
6. Standard double-height VME board form factor for quick replacement in rack slots.

Application Scenarios

1. GE Mark VI gas turbine and steam turbine control cabinets in thermal power plants.
2. EX2100 digital excitation control system for synchronous generator excitation regulation.
3. Replacement of damaged ERDD dynamic discharge boards in existing EX2100 racks.
4. Spare parts inventory for power plant electrical and automation maintenance teams.
5. Retrofit and upgrade of legacy GE Speedtronic Mark VI turbine excitation systems.
6. Overvoltage protection for excitation power unit in combined-cycle power generation units.

FAQ

1. Q: What is GE IS200ERDDH1ABA?
   A: It is ERDD Exciter Regulator Dynamic Discharge Board, the core protection and gate drive board for GE EX2100 generator excitation system.
2. Q: What does ERDD stand for?
   A: ERDD stands for Exciter Regulator Dynamic Discharge Board, responsible for DC link dynamic discharge and IGBT gate drive.
3. Q: What is the difference between simplex and redundant mode?
   A: Simplex mode controls K3 charging relay; redundant mode controls K41 de-excitation relay and requires dual ERDD boards.
