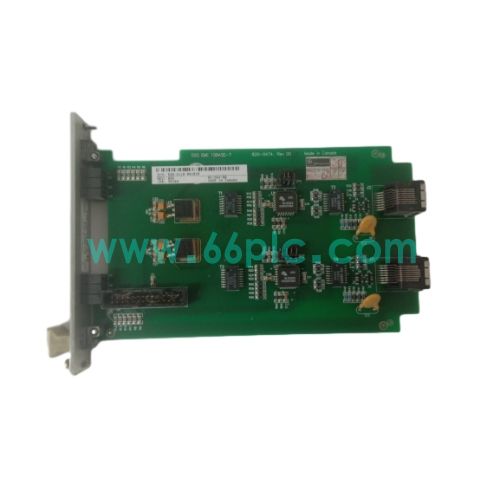

GE D20 EME 10BASE-T Ethernet Module

GE D20 EME 10BASE-T is the Ethernet communication expansion module for GE D20 substation controller. It enables 10Mbps twisted pair Ethernet connection, supporting reliable data exchange between D20 RTU and SCADA host in power automation systems.

This EME module plugs into D20 controller local bus, supports standard 10BASE-T protocol and industrial communication protocols. It has strong anti-interference performance for substation environments. Widely used as spare parts for power substation RTU control cabinets.

Main Specifications

1. Brand: GE; Model: D20 EME 10BASE-T; Type: D20 Ethernet Communication Module
2. Compatible System: GE D20 RTU / Substation Controller, D20 local backplane bus
3. Core Functions: 10BASE-T Ethernet communication, SCADA data transmission, controller network interface expansion
4. Communication: 10Mbps 10BASE-T twisted pair, D20 internal bus, support DNP3 and Modbus protocols
5. Operating Temperature: -20℃ ~ +70℃; D20 rack slot plug-in installation
6. Feature: Built-in hardware self-diagnosis, industrial EMC protection, stable operation in substation
7. Supply Status: Original GE spare module for substation D20 RTU cabinet maintenance

Core Functions

1. Provide 10BASE-T Ethernet interface for GE D20 RTU to upload substation measurement and status data to SCADA system.
2. Receive remote control commands from SCADA host and transmit instructions to D20 controller via internal bus.
3. Communicate with D20 main controller through local backplane bus, exchange real-time power monitoring data.
4. Built-in continuous self-diagnosis to detect network disconnection, bus error and hardware fault and trigger alarm.
5. Standard D20 rack slot design, convenient plug-in replacement during substation maintenance.
6. Industrial EMC anti-interference design, resist electromagnetic noise in high voltage substation environment.

Application Scenarios

1. Ethernet communication unit for power substation D20 RTU and SCADA automation monitoring systems.
2. Fault module replacement and routine maintenance of existing GE D20 substation control racks.
3. Substation automation system renovation and upgrade for power grid monitoring and remote control projects.
4. Emergency replacement for EME module failure to restore Ethernet data communication between RTU and SCADA.
5. Spare parts stocking for maintenance teams operating GE D20 substation controller systems.
6. Aftermarket spare supply for substation control cabinet overhaul and power automation transformation projects.

FAQ

1. Q: Can GE D20 EME 10BASE-T work on non-D20 controller systems?
   A: It is dedicated for GE D20 RTU platform, cannot be installed and used with other brands of substation controllers.
2. Q: What are typical module failure symptoms?
   A: Ethernet link down, SCADA data interruption, D20 internal bus communication error, module fault alarm.
3. Q: How to complete commissioning and diagnosis?
   A: Check D20 backplane connection and twisted pair wiring, configure IP address, test DNP3/Modbus data communication with SCADA host.
