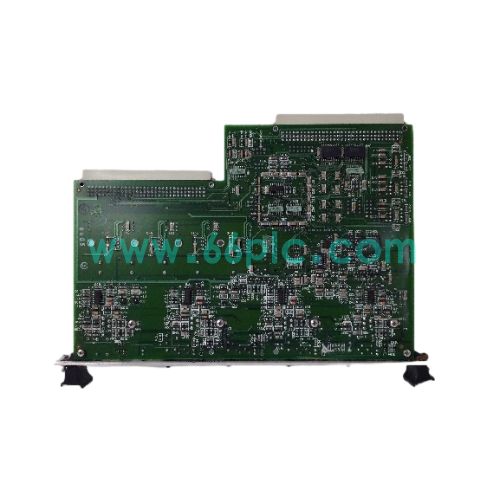

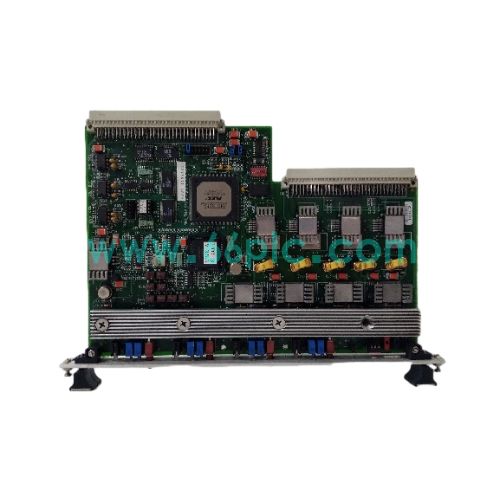

GE VMIC ASSY 11994R13 VME Bus Communication Module

GE VMIC ASSY 11994R13 is a VMEbus high-speed communication board assembly built for GE Mark VI turbine control system. It adopts reflective memory technology to realize deterministic, low-latency data synchronization between distributed control nodes.

This fully assembled VME module supports multi-channel network interfaces and VME64x bus protocol. It has wide temperature tolerance and strong anti-vibration performance. Widely used as spare replacement parts for power plant gas and steam turbine control cabinets.

Main Specifications

1. Brand: GE VMIC; Model: ASSY 11994R13; Type: VMEbus Reflective Memory Module
2. Compatible System: GE Mark VI turbine control system, VME64x rack
3. Core Functions: Reflective memory data synchronization, VME bus communication, multi-node real-time data exchange
4. Communication: Gigabit Ethernet, reflective memory network, support Modbus TCP and EtherNet/IP
5. Operating Temperature: -20℃ ~ +70℃; VME slot mount, industrial vibration resistant design
6. Feature: Deterministic low latency, built-in hardware self-diagnosis, hot swap support
7. Supply Status: Aftermarket spare assembly for GE turbine control rack maintenance

Core Functions

1. Reflective memory technology automatically synchronizes shared memory data across multiple distributed control nodes with ultra-low latency.
2. Communicate with other VME modules through VME64x backplane bus to exchange turbine control data and status signals.
3. Multi network ports support fiber and copper network connection, realizing long-distance high-speed data transmission.
4. Built-in continuous self-diagnosis circuit detects bus error, network fault and hardware abnormality and trigger system alarm.
5. VME standard slot structure supports quick plug-in replacement, reducing outage time during power plant maintenance.
6. Real-time transmit critical turbine control parameters to ensure synchronous operation of multi-controller system.

Application Scenarios

1. Real-time data synchronization unit for GE Mark VI gas turbine and steam turbine control cabinets in power plants.
2. Fault module replacement and routine maintenance of existing VMIC VME rack control systems.
3. Turbine control system overhaul and life extension for thermal power and combined cycle power stations.
4. Emergency replacement for communication module failure to restore multi-node synchronous control function.
5. Spare parts stocking for maintenance teams responsible for GE turbine control system operation.
6. Aftermarket spare supply for power plant control cabinet renovation and industrial control upgrade projects.

FAQ

1. Q: Can GE VMIC ASSY 11994R13 work on non-GE VME control systems?
   A: It is dedicated for GE Mark VI turbine control platform, cannot operate normally with other VME host systems.
2. Q: What are typical module failure symptoms?
   A: Reflective memory sync failure, network disconnection, VME backplane communication error, module fault alarm.
3. Q: How to complete commissioning and diagnosis?
   A: Check VME backplane and network wiring, launch GE control configuration software, test reflective memory data synchronization status.
