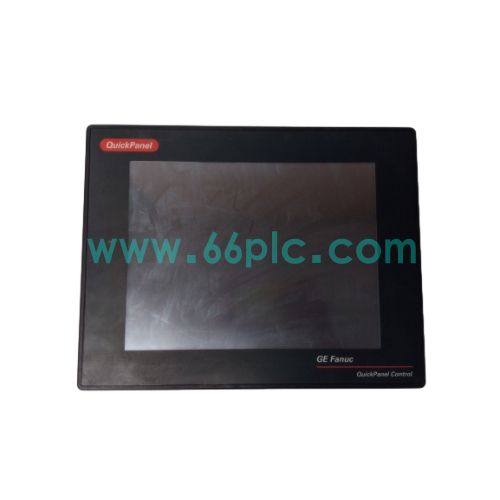

GE Fanuc IC754CSL12CTD QuickPanel Control HMI

The GE Fanuc IC754CSL12CTD is a 12.1‑inch all‑in‑one QuickPanel Control human‑machine interface terminal, integrating touch display and embedded controller function. It serves as local operation station for industrial automation systems, realizing real‑time data display, parameter setting, equipment operation control and on‑site fault alarming for production equipment. It can communicate seamlessly with GE series PLC and multi‑brand third‑party automation controllers.

This unit adopts panel‑mount installation design, front‑face IP65 protection grade against dust and water splash, adapting to harsh industrial workshop environment. Equipped with multiple communication ports and battery‑backed retention memory, it supports Windows Embedded operating system and Proficy Machine Edition configuration software. Widely used as spare replacement part for old automation production lines, applicable for equipment maintenance and technical renovation projects of manufacturing, energy and process industries.

Main Specifications

1. Brand: GE Fanuc; Model: IC754CSL12CTD; Type: QuickPanel Control Integrated HMI Operator Terminal
2. Display: 12.1‑inch TFT color LCD, SVGA resolution 800×600, resistive touch screen
3. Compatible System: GE RX3i, RX7i, 90‑30, 90‑70 series PLC and third‑party Modbus compatible devices
4. Core Function: Process data visualization, on‑site operation control, alarm log recording, embedded logic control
5. Port Resource: 10/100Mbps Ethernet, RS‑232 / RS‑485 serial port, USB interface, CF card expansion slot
6. Hardware Feature: Front IP65 protection, 24VDC power supply, battery‑backed retention memory, industrial anti‑interference design
7. Supply Status: Aftermarket spare part for legacy automation system maintenance, replacement and on‑site retrofit

Core Functions

1. Real‑time collect process data from lower‑level PLC and controllers, realize graphical display of production parameters, status indicator and trend curve.
2. Support on‑site touch operation, complete parameter modification, manual/automatic mode switching and equipment start‑stop control on local panel.
3. Record system event logs and fault alarm information, support historical data storage and query for equipment failure analysis.
4. Support multiple industrial communication protocols including SRTP, Modbus TCP/RTU, EGD, to finish data interconnection with multi‑brand automation hardware.
5. Run embedded control logic program, realize independent local control when upper host communication fails, improving system operation reliability.
6. Adopt industrial‑grade hardware structure, provide stable man‑machine interaction interface for continuous long‑time running industrial production sites.

Application Scenarios

1. On‑site operator station for factory automation production lines in machinery manufacturing, water treatment and energy industries.
2. Fault touch‑screen replacement and daily maintenance for existing GE automation control cabinet systems.
3. Human‑machine interface hardware upgrade and technical transformation of aging industrial control systems.
4. Emergency spare swap for HMI failure of continuously running process‑control equipment on production site.
5. Spare‑parts stocking for factory maintenance departments and automation system integration vendors.
6. Aftermarket spare supply for industrial automation renovation and technical service projects based on GE control platforms.

FAQ

1. Q: Can IC754CSL12CTD run without external PLC?
   A: It supports embedded logic operation, but complete field automation project still needs to cooperate with peripheral I/O and PLC hardware.
2. Q: What are typical failure phenomena?
   A: Touch unresponsive, screen backlight failure, communication disconnection with PLC, loss of historical data storage, program cannot load normally.

3. Q: How to complete commissioning and diagnosis?
   A: Check power supply and communication wiring status; download configuration project via Proficy Machine Edition software, calibrate touch panel and verify communication parameters.
