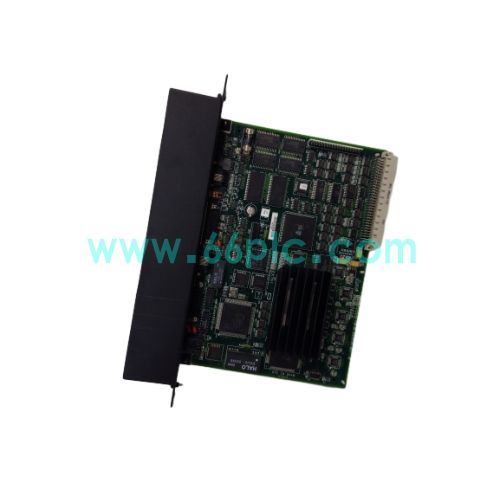

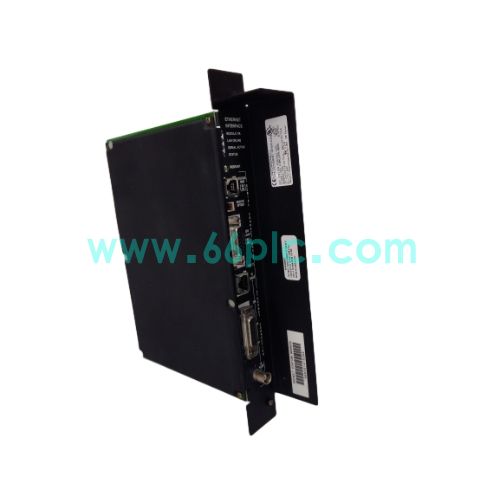

GE Fanuc IC697CMM742 Ethernet Interface Module

The GE Fanuc IC697CMM742 is a Type 2 Ethernet communication module specifically built for GE Series 90‑70 PLC rack systems. It acts as an independent network co‑processor, establishing 10Mbps IEEE 802.3 Ethernet link for PLC controllers, handling multi‑protocol data exchange and offloading network tasks from the main CPU to improve overall system response performance.

This single‑slot VME module comes with three alternative network ports plus dual serial ports for local configuration and firmware upgrade. Equipped with status LED indicators for rapid on‑site diagnosis, it supports pre‑loaded upgradable firmware. Widely deployed as spare communication hardware for legacy GE 90‑70 automation system maintenance, replacement and network retrofitting projects in heavy‑industry sites.

Main Specifications

1. Brand: GE Fanuc; Model: IC697CMM742; Type: Type 2 Ethernet Interface Module
2. Compatible System: GE Series 90‑70 PLC VME rack system, max four modules per CPU rack
3. Core Function: Industrial Ethernet communication, remote programming, EGD global data exchange, TCP/IP service
4. Port Resource: 10Base‑T(RJ45),10Base2(BNC),AUI 15‑pin port; RS‑232 station‑manager, RS‑485 firmware‑upgrade serial port
5. Supported Protocol: EGD, SRTP, TCP/IP, Modbus TCP, IEEE 802.3 CSMA/CD 10Mbps
6. Hardware Feature: Independent network co‑processor, four status LED indicators, in‑system firmware upgrade, industrial anti‑interference design
7. Supply Status: Spare replacement part for legacy 90‑70 PLC automation system maintenance and retrofit

Core Functions

1. Provide high‑speed Ethernet connection for GE 90‑70 PLC, realize remote PLC program upload, download and online monitoring.
2. Execute Ethernet Global Data cyclic data sharing among multiple PLC stations, achieve inter‑controller real‑time data synchronization.
3. Run TCP/IP and SRTP communication services, support data interaction with HMI, upper SCADA host and third‑party Modbus TCP devices.
4. Work as independent co‑processor to process network traffic, reduce main CPU communication load and stabilize PLC cyclic scan performance.
5. Offer serial station‑manager interface for local IP setting, diagnostic readout and convenient in‑place firmware version updating.
6. Deliver hardware status signals via LED lights, help technicians locate network link fault and module hardware abnormality quickly on‑site.

Application Scenarios

1. Ethernet networking transformation for GE Series 90‑70 PLC control systems in power plant, metallurgy and manufacturing factories.
2. Fault communication module replacement and routine maintenance of existing 90‑70 PLC rack cabinets.
3. Distributed automation projects requiring cross‑station EGD global data exchange between multiple GE PLC stations.
4. On‑site emergency swap for communication failure of continuously running legacy industrial control equipment.
5. Spare‑parts inventory for factory maintenance teams and automation system integrators supporting old GE control platforms.
6. After‑market spare supply for industrial automation renovation and technical service projects of legacy GE‑Fanuc systems.

FAQ

1. Q: Can IC697CMM742 work without GE 90‑70 CPU?
   A: It must be inserted into 90‑70 series PLC backplane rack, cannot operate as standalone communication hardware.
2. Q: What are typical module failure phenomena?
   A: PLC cannot connect via Ethernet, EGD data loss, LAN link alarm, unresponsive remote programming access.

3. Q: How to complete commissioning and diagnosis?
   A: Observe module LED status indicators; configure IP address and EGD table via programming software, upgrade firmware through RS‑485 serial port when needed.
