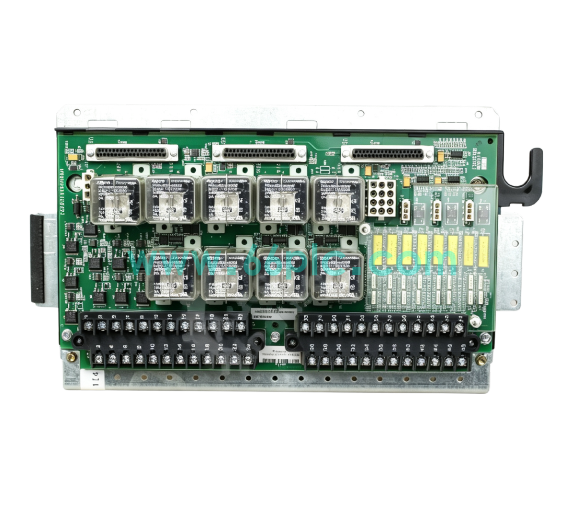

GE IS200TRPGH1BDD Circuit Board

The GE IS200TRPGH1BDD is a trip relay gate board for GE Speedtronic Mark VI turbine control systems. It implements hardware‑level trip gate logic, handling critical turbine trip command signals and interlock conditions. Mounted within the Mark VI control rack and connected to the system backplane bus, this board provides hardwired relay‑gate channels to execute fast‑acting safety shutdown for gas and steam turbine generator sets in power generation plants.

This board contains relay drive circuits, signal conditioning circuits, hardware interlock logic and status LED indicators. It receives trip‑initiation signals from other control boards and generates reliable hardware‑based trip outputs independent of software logic. Built‑in self‑test functions continuously monitor board health. Original production has been discontinued. It is widely supplied as aftermarket spare parts for Mark VI turbine cabinet maintenance and legacy power‑plant safety‑system retrofit projects.

Main Specifications

1. Brand:GE; Model:IS200TRPGH1BDD; Type:Trip Relay Gate Safety Circuit Board
2. Compatible Platform:GE Speedtronic Mark VI gas / steam turbine control system chassis and backplane bus
3. Core Function:Hardware trip‑gate logic processing, safety interlock and turbine shutdown relay‑drive output
4. Signal Interface:Backplane bus data exchange, multi‑channel relay output terminals for hard‑wired trip circuits
5. Status Feedback:On‑board LED indicators for relay state, trip‑condition status and hardware fault alarm
6. Safety Characteristic:Hardware‑based trip logic independent of controller software for high‑reliability protection response
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Receive turbine trip requests and interlock condition signals from other Mark VI system boards via chassis backplane bus.
2. Execute hardware‑level trip‑gate logic to trigger hard‑relay outputs for fast safety shutdown of gas‑steam turbine generator units.
3. Provide independent hardware protection channel, ensuring valid trip action even under abnormal controller‑software operating conditions.
4. Monitor relay‑circuit status and board hardware health continuously, report fault events to main controller and display state via on‑board LED indicators.
5. Isolate and condition trip‑related input‑output signals to suppress electromagnetic interference inside high‑noise turbine‑hall environments.
6. Serve as critical safety‑protection hardware within GE Mark VI turbine control cabinets for power‑generation facilities.

Application Scenarios

1. Power‑plant gas‑turbine and steam‑turbine generator sets deployed with GE Speedtronic Mark VI turbine safety‑control systems.
2. Spare trip‑relay‑gate‑board replacement and routine maintenance of existing Mark VI turbine control cabinets.
3. Technical renovation and safety‑protection‑hardware upgrade of aging legacy Mark VI turbine automation control systems.
4. On‑site troubleshooting and replacement of faulty safety boards on continuously running turbine generation units.
5. Spare‑parts stocking for system integrators and power‑plant maintenance contractors supporting legacy GE Mark VI hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete GE Mark VI series turbine‑control hardware.

FAQ

1. Q:Can IS200TRPGH1BDD work as standalone unit?
   A:It must be installed inside Mark VI rack and cooperate with other control boards, standalone operation is not supported.
2. Q:What symptoms appear upon board failure?
   A:Trip‑circuit failure risk, interlock logic abnormality, Mark VI system safety‑subsystem fault alarm may occur.

3. Q:How to complete configuration and diagnosis?
   A:Check local LED status; view trip‑event logs and hardware diagnostics through Mark VI HMI and GE official configuration software.
