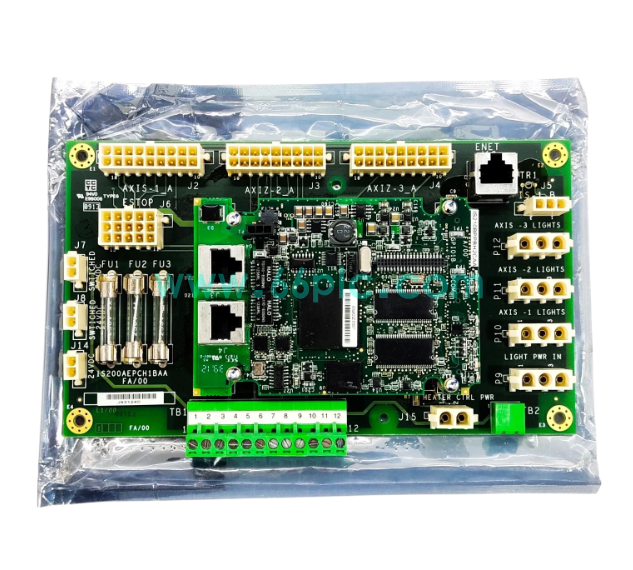

GE IS200AEPCH1BAA Processor Main Board

The GE IS200AEPCH1BAA is the main acoustic emission processor board designed for GE Speedtronic Mark VI turbine control systems. It works cooperatively with auxiliary daughter boards such as IS200AEPAH1AFD to acquire and process acoustic‑emission signals from turbine field sensors. This board performs real‑time mechanical‑fault feature analysis, identifying abnormal friction, crack development and component degradation for gas‑steam turbine condition monitoring within power‑generation control cabinets.

This main processor board connects to the Mark VI system backplane bus, exchanging processed diagnostic data with the main controller and upper‑level HMI monitoring system. It carries on‑board firmware storage, hardware self‑test circuits and status LED indicators for running‑state and fault feedback. Original production has been discontinued. It is widely supplied as aftermarket spare parts for Mark VI turbine cabinet maintenance and legacy power‑plant condition‑monitoring retrofit projects.

Main Specifications

1. Brand:GE; Model:IS200AEPCH1BAA; Type:Acoustic Emission Processor Main Board
2. Compatible Platform:GE Speedtronic Mark VI gas / steam turbine control system chassis and backplane bus
3. Board Structure:Supports stacking matched AEPA series auxiliary daughter boards for signal‑channel expansion
4. Core Processing:Acoustic‑emission data calculation, mechanical‑fault feature extraction and condition‑event judgment
5. Internal Communication:High‑speed data exchange with Mark VI main controller via chassis backplane bus
6. Diagnostic Feature:On‑board LED status indicators, firmware storage and integrated hardware self‑diagnosis circuit
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Receive pre‑filtered acoustic‑emission sampling data from stacked auxiliary daughter boards, and execute real‑time signal analysis for turbine rotating‑machinery condition assessment.
2. Identify abnormal acoustic signatures caused by mechanical friction, component cracking and structural wear, and generate early‑warning diagnostic events for turbine‑protection reference.
3. Transmit acoustic‑monitoring results and fault‑event information to Mark VI main controller, further uploading data to local HMI and remote plant SCADA monitoring systems.
4. Detect hardware anomalies of main board and stacked auxiliary daughter boards, report subsystem fault status and display operating conditions via on‑board LED indicators for on‑site inspection.
5. Store configuration parameters and diagnostic threshold settings inside on‑board non‑volatile memory for acoustic‑monitoring subsystem operation.
6. Serve as core processing hardware for GE Mark VI turbine acoustic‑emission mechanical‑condition monitoring systems in power‑generation facilities.

Application Scenarios

1. Power‑plant gas‑turbine and steam‑turbine generator sets equipped with GE Speedtronic Mark VI turbine control and condition‑monitoring systems.
2. Spare main‑processor‑board replacement and routine maintenance of existing Mark VI acoustic‑emission monitoring subsystems inside turbine control cabinets.
3. Technical renovation and mechanical‑early‑warning‑function upgrade of aging legacy Mark VI turbine automation control systems.
4. On‑site troubleshooting and replacement of faulty acoustic‑emission main boards on continuously running turbine generation units.
5. Spare‑parts stocking for system integrators and power‑plant maintenance contractors supporting legacy GE Mark VI hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete GE Mark VI series turbine‑control hardware.

FAQ

1. Q:Can IS200AEPCH1BAA work as standalone unit?
   A:It must be installed inside Mark VI rack and cooperate with matched auxiliary daughter boards and main controller, standalone operation is not supported.
2. Q:What symptoms appear upon board failure?
   A:Acoustic‑emission monitoring subsystem offline, loss of sensor measurement data, Mark VI system AE‑subsystem fault alarm may occur.

3. Q:How to complete configuration and diagnosis?
   A:Parameter configuration and fault‑log reading are completed through Mark VI HMI and GE official configuration software; local status inspection via on‑board LED indicators.
