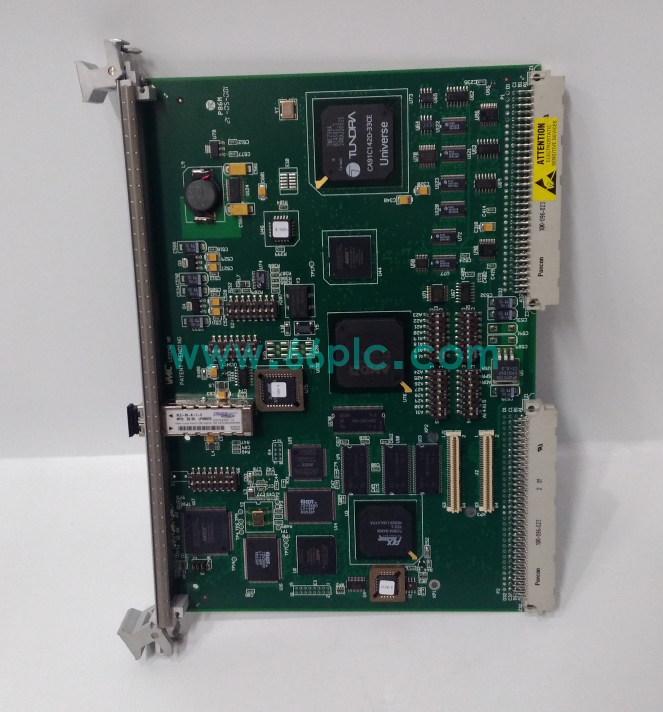

GE VMIVME‑5565 VMEbus Fiber‑Optic Reflective Memory Module

The VMIVME‑5565 is a 6U VMEbus reflective memory node card from GE VMIC (Abaco Systems). It provides deterministic fiber‑optic shared‑memory networking, replicating local memory data across up to 256 network nodes with ultra‑low latency for distributed real‑time embedded control systems.

This board features LC multi‑mode fiber interfaces, supports DMA data transfer without heavy CPU occupancy, and offers optional redundant transmission, CRC error checking and network interrupt functions. It is powered through the VME backplane and fits standard VME racks, widely used in simulation, test‑bench and industrial real‑time control cabinets.

Main Specifications

Brand: GE VMIC / Abaco Systems; Model: VMIVME‑5565; Type: VMEbus Reflective Memory Module
Applicable System: 6U VMEbus real‑time embedded control platform, compatible with PCI‑5565 / PMC‑5565 series network nodes
Core Tasks: Fiber‑optic reflective‑memory data replication, DMA high‑speed transmission, network interrupt trigger, link error detection
Signal Interface: LC multi‑mode fiber port, VMEbus A24/A32, D08/D16/D32 backplane interface
Installation: 6U single‑slot VME rack plug‑in module, powered by VME backplane
Performance: Max throughput 174 MB/s; maximum 256 nodes; onboard 64 MB / 128 MB SDRAM memory
Fiber Distance: Multi‑mode fiber up to 300 meters; supports redundant transmission mode
Operating Environment: 0℃ ~ +55℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
Diagnostic: Front‑panel LED indicators for power, link activity and communication fault status; CRC error detection
Certifications: CE, supports VxWorks, Linux and Windows real‑time operating systems

Core Functions

Realize hardware‑level memory mirroring: data written to local onboard memory is automatically broadcast to all other reflective‑memory network nodes.
Support DMA block transmission to move large‑volume real‑time data with minimal CPU resource consumption.
Provide programmable point‑to‑point and broadcast network interrupts for node synchronization and event notification across distributed systems.
Built‑in CRC error checking and optional redundant link transmission to enhance communication reliability in complex industrial environments.
Allow mixed networking with PCI‑5565, PMC‑5565 cards, interconnecting different bus‑architecture real‑time controllers freely.
Industrial‑grade PCB design adapts to long‑term continuous operation in real‑time simulation and heavy‑duty control cabinet environments.

Application Scenarios

Spare‑part replacement for VME‑based real‑time control cabinets used in power‑plant simulation, aerospace test‑bench and industrial simulation systems.
High‑speed shared‑memory communication component for multi‑node distributed real‑time simulation and hardware‑in‑the‑loop test platforms.
Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy GE VMIC reflective‑memory network equipment.
Matching reflective‑memory node cooperating with VME CPU boards, chassis backplane and real‑time host workstation.
Retrofit replacement for old reflective‑memory boards with link dropout and data‑sync abnormal faults.
Global aftermarket spare supply for automation maintenance teams maintaining VME‑bus real‑time embedded control equipment worldwide.
