Product Description

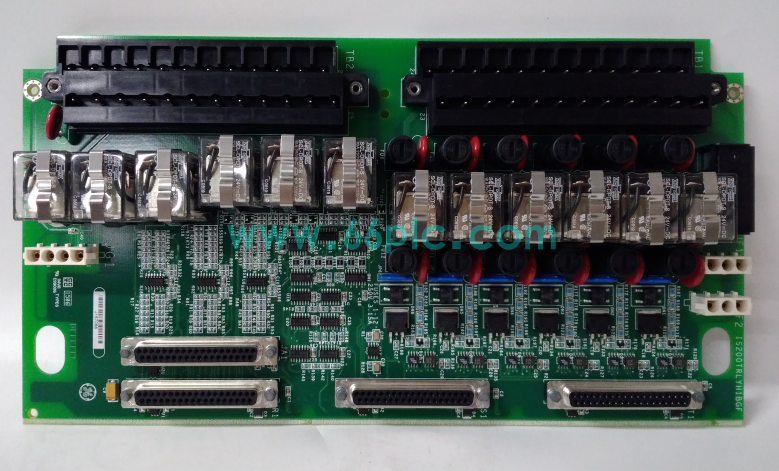

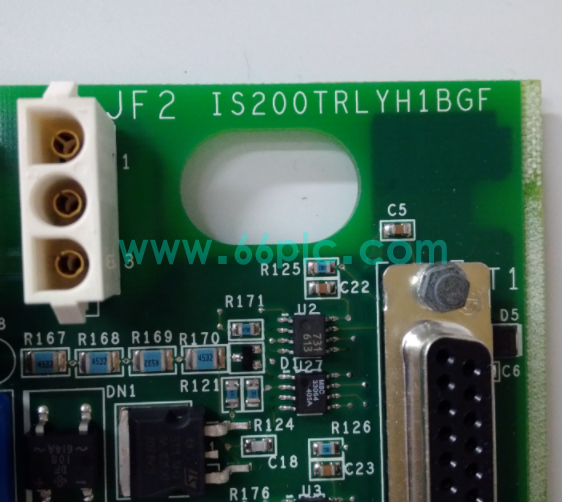

The GE IS200TRLYH1BGF is a dedicated termination relay output board designed for GE Speedtronic Mark VI turbine control systems. It serves as a critical signal termination and switch output interface between the main control processor and field turbine equipment, converting internal logic commands into reliable relay switch signals. This module undertakes equipment status switching, interlock triggering and auxiliary control output tasks for gas and steam turbine units.

Adopting industrial-grade relay components and standardized terminal block wiring design, the board supports stable 3A rated relay output and high-precision signal transmission. It features built-in surge suppression and contact protection circuits to resist power plant electromagnetic interference and frequent switching impact. With strict industrial aging calibration and rugged PCB reinforcement, it ensures 24/7 long-cycle reliable switching control for heavy-duty turbine safety protection systems.

Main Specifications

1. Full Model: IS200TRLYH1BGF; Product Type: GE Mark VI turbine system dedicated termination relay output board
2. Applicable System: GE Speedtronic Mark VI gas & steam turbine control and safety protection platforms
3. Core Function: Control signal termination, relay switch output, equipment interlock drive and status signal feedback
4. Relay Rating: Standard 3.0A single-channel rated current, supporting stable frequent switching operation
5. Interface Design: Integrated dedicated terminal blocks and JA1 D-type connector for precise signal docking
6. Control Mode: Compatible with simplex, dual and triple redundant Mark VI system topological structures
7. Protection Circuit: Built-in surge suppression, contact anti-arc and overcurrent protection mechanisms
8. Signal Performance: Low-loss signal transmission, effectively avoiding switching delay and command distortion
9. Structural Feature: Standard rack-mounted PCB layout, convenient field wiring, replacement and maintenance
10. Operational Reliability: Power plant industrial grade verification, anti-vibration and anti-interference for long-term operation

Core Functions

1. Acts as the core relay output and signal termination unit for GE Mark VI turbine control systems.
2. Converts internal turbine control logic signals into physical relay switch output commands.
3. Drives field auxiliary equipment and executes system interlock and trip protection actions.
4. Realizes stable signal docking and transmission between main processor and on-site actuators.
5. Supports multi-mode redundant system operation to ensure consistent control output accuracy.
6. Integrates contact protection design to extend service life under frequent switching working conditions.
7. Suppresses on-site electromagnetic interference to guarantee reliable execution of turbine control commands.
8. Feeds back equipment operating status signals to form closed-loop turbine system control logic.
9. Facilitates standardized field wiring and quick fault troubleshooting for turbine systems.
10. Guarantees safe and stable switching control for large power generation turbine equipment.

Application Scenarios

1. Thermal power plant GE Mark VI steam and gas turbine control system matching projects
2. Power generation unit turbine safety interlock protection and trip control system scenarios
3. Industrial heavy-duty turbine auxiliary equipment switching and linkage control systems
4. Power plant redundant turbine control platform signal termination and output expansion projects
5. Old GE Speedtronic Mark VI system relay board replacement and stability upgrading scenarios
6. Power plant strong electromagnetic vibration environment stable switch control occasions
7. 24-hour uninterrupted power generation turbine full-cycle safety control guarantee systems
8. Large energy equipment automatic interlock protection and fault response control projects
9. Turbine distributed I/O signal termination and field equipment drive scenarios
10. High-reliability power industrial turbine control system core auxiliary board supporting occasions
