Product Description

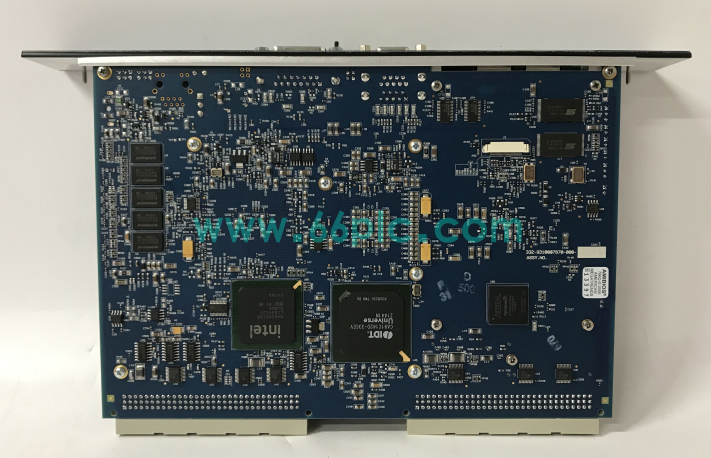

The GE Fanuc IC698CPE040-JP is a top-tier high-speed CPU controller belonging to the PACSystems RX7i series, serving as the core processing unit for large-scale industrial automation systems. Equipped with a 1.8GHz Pentium-M processor and matched 64MB user memory plus 64MB flash storage, it delivers ultra-fast deterministic logic execution, massive I/O scheduling and complex algorithm computing capabilities, fully meeting high-precision and high real-time industrial control demands.

This JP-version CPU adopts Japan-standard compliant firmware and industrial-grade rugged design, integrating gigabit Ethernet, multi-serial communication and hot-standby redundant control functions. It supports rich industrial protocols and online program debugging, with ultra-wide temperature resistance and strong anti-interference performance. Featuring battery-backed data retention and fault self-diagnosis, it ensures 24/7 stable and reliable long-cycle operation for critical industrial process control systems.

Main Specifications

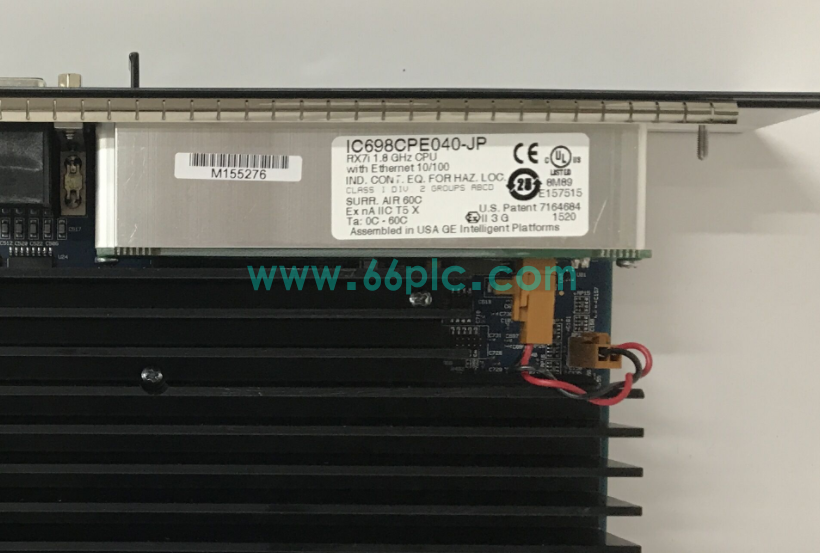

1. Full Model: IC698CPE040-JP; Product Type: PACSystems RX7i series high-performance industrial core CPU controller module
2. Applicable System: GE PACSystems RX7i automation platform, large process control and high-precision industrial intelligent control systems
3. Core Function: System logic operation, large-scale I/O scheduling, protocol communication management, data storage and fault diagnosis
4. Processor Performance: 1.8GHz Intel Pentium-M high-speed processor, supporting ultra-fast real-time industrial computing
5. Memory Configuration: 64MB battery-backed user memory and 64MB non-volatile flash user memory for data security storage
6. I/O Expansion: Supports up to 8192 discrete and analog I/O points for large-scale system expansion configuration
7. Communication Interfaces: Integrated gigabit Ethernet, USB 2.0, RS-232/RS-485 multi-type communication ports
8. Protocol Compatibility: Adaptable to Modbus TCP, EtherNet/IP, PROFINET, FTP and mainstream industrial network protocols
9. Version Feature: JP customized version, compliant with Japanese JIS and PSE industrial safety and technical standards
10. Operational Reliability: -40°C to +60°C ultra-wide temperature design, supporting hot standby redundancy and uninterrupted operation

Core Functions

1. Acts as the supreme core control unit for GE PACSystems RX7i industrial automation systems.
2. Executes high-speed deterministic logic operation to support complex industrial process control algorithms.
3. Manages and schedules thousands of I/O points to realize full-system signal acquisition and linkage control.
4. Supports multi-protocol gigabit Ethernet communication for seamless docking with upper hosts and field devices.
5. Adopts battery-backed storage design to prevent program and data loss during sudden power failure.
6. Integrates complete system self-diagnosis function for real-time fault detection and status feedback.
7. Supports hot standby redundant configuration to eliminate system single-point failure risks.
8. Enables online program modification, debugging and remote firmware upgrade to reduce maintenance costs.
9. Conforms to Japanese industrial standard specifications for standardized and safe industrial application.
10. Guarantees high-efficiency, high-precision and ultra-stable operation of large industrial control systems.

Application Scenarios

1. Large-scale factory intelligent automation core control system construction and upgrading projects
2. Petrochemical, chemical and pharmaceutical complex process precise control scenarios
3. Thermal power, new energy and environmental protection high-reliability power control platforms
4. Japanese standard industrial equipment automation transformation and supporting control projects
5. Old RX7i system low-performance CPU replacement and system operation efficiency upgrading scenarios
6. High-precision machinery manufacturing and multi-device synchronous linkage control systems
7. Complex electromagnetic environment industrial workshop stable operation core control scenarios
8. 24-hour uninterrupted operation key industrial production control guarantee systems
9. Large-scale distributed I/O expansion and multi-network protocol integration control projects
10. High-standard safety and high real-time requirement industrial intelligent control occasions
