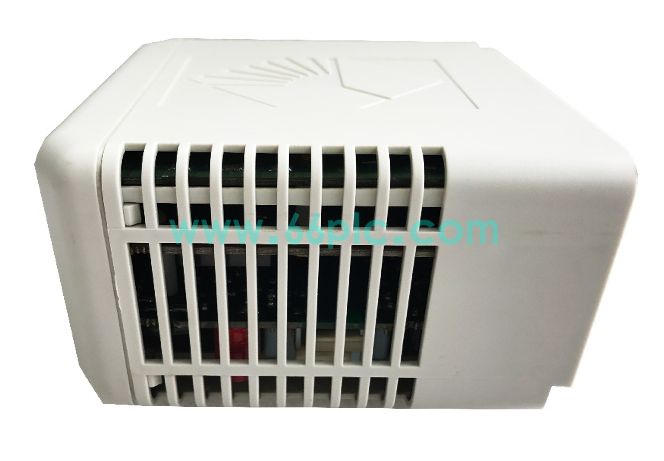

MTL / GE 8502-BI-DP Profibus-DP Bus Interface Module

8502-BI-DP is a Bus Interface Module (BIM) under Eaton MTL 8000 remote I/O series, also labeled GE-branded for process control systems. It acts as a Profibus-DP slave gateway, connecting up to 24 pieces of 8000-series analog/digital I/O modules to upper Profibus master PLC/DCS. It integrates internal Railbus high-speed local bus and HART signal parsing, realizing cyclic real-time process data exchange and acyclic instrument parameter remote configuration.

This DIN rail plug-in module adopts triple galvanic isolation (LAN / Railbus / power supply) to resist industrial EMI interference. It stores configuration parameters in non-volatile memory, supports extended Profibus fault diagnosis and hot replacement of downstream I/O modules without system shutdown. It is widely stocked as maintenance spare parts for petrochemical, power and hazardous area automation systems.

Main Specifications

• Brand: Eaton MTL (GE OEM version); Model: 8502-BI-DP; Type: Profibus-DP Bus Interface Module
• Bus Interface: 9-pin Profibus-DP RS485 port, max baud rate 6 Mbaud, Profibus slave station
• Local Backplane: Internal Railbus, supports maximum 24 cascaded 8000 series I/O modules
• HART Function: Built-in FSK modem, read/write HART 5/6/7 instrument calibration and fault information
• Isolation Rating: 500VAC isolation between Profibus, Railbus and 24VDC power circuit
• Power Supply: 24VDC (20–30VDC), typical operating current 100mA
• Data Frame Capacity: Max 244 bytes input / 244 bytes output cyclic Profibus data telegram
• Diagnostics: Multi-color LED indicators for Power, Fault, Comm, LAN A/B, Config, Railbus status
• Operating Environment: -20℃ ~ +60℃, humidity 5%~95% non-condensing, ATEX hazardous area certified
• Configuration Mode: Support Profibus master parameterization or MTL 8455-SW-CF dedicated software

Core Functions

• Collect analog 4–20mA, digital switch and HART measurement data from all cascaded 8000 I/O modules via internal Railbus backplane.
• Convert local I/O data into standard Profibus-DP cyclic frames, upload real-time process values to upper ABB PM511, Foxboro DCS or GE PLC master stations.
• Acyclic HART mailbox communication realizes remote instrument range calibration, zero adjustment and fault diagnosis without on-site handheld communicator.
• Extended Profibus diagnosis function monitors each downstream I/O channel, output detailed open-loop, short-circuit and module failure fault codes to control system.
• Non-volatile memory retains system configuration parameters, automatically loads settings after power recovery without repeated programming download.
• DIN rail compact hot-swappable design allows single I/O module replacement without powering off the whole remote station, cutting production downtime.

Application Scenarios

• Profibus communication spare replacement for MTL 8000 series remote I/O stations in oil refinery and chemical hazardous area process control cabinets.
• Remote I/O gateway spare parts for thermal power plant boiler circulating water and turbine auxiliary measurement systems matched with Foxboro FBM216 HART modules.
• Maintenance backup stock for metallurgical rolling mill, paper making and pharmaceutical explosion-proof distributed automation control racks.
• Matching bus interface module for ABB PM511 DCS CPU, PP836 HMI panel and SDCS-CON-4 DC drive control systems.
• Retrofit overhaul components for water treatment plant, natural gas pipeline and chemical reaction kettle remote signal acquisition stations.

• Global aftermarket spare inventory for process automation workshops maintaining legacy MTL 8000 series hazardous area I/O hardware..
