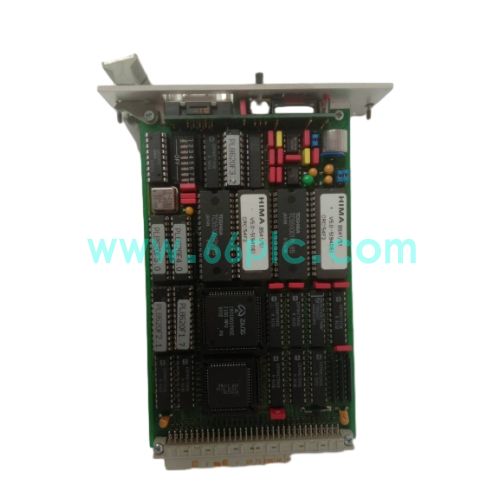

HIMA F862011 (F8620/11) Safety CPU Module SIL3

HIMA F862011, also marked F8620/11, is the dual redundant safety CPU module for HIMA H51q-HS PES safety system, certified to IEC61508 SIL3. It adopts dual synchronous processor architecture with hardware comparison, responsible for executing safety interlock, ESD and burner management logic for high-risk industrial process.

This safety CPU supports HIMA F3 safety bus and redundant controller hot standby. It is equipped with flash memory and battery-backed SRAM for program and fault event storage. Widely used as spare replacement parts for petrochemical, power and offshore platform SIS safety control cabinets.

Main Specifications

1. Brand: HIMA; Model: F862011(F8620/11); Type: SIL3 Safety CPU Module
2. Compatible System: HIMA H51q-HS PES safety system, F3 series I/O rack
3. Core Functions: Safety logic execution, F3 bus I/O management, redundant CPU comparison, SOE event recording
4. Processor: Dual synchronous 25MHz microprocessor; Power supply: 24VDC
5. Operating Temperature: -25℃ ~ +70℃; VME rack slot mounting, support redundant hot standby
6. Feature: Hardware cross-comparison, on-board continuous self-diagnosis, fault event storage
7. Supply Status: Original HIMA spare CPU for SIS safety cabinet maintenance

Core Functions

1. Dual synchronous processors run identical safety program, hardware comparator checks calculation result in real time.
2. Communicate with F3 series I/O modules via F3 safety bus, collect field safety signals and output trip commands.
3. Support dual redundant CPU configuration, automatic bumpless switchover when one processor encounters fault.
4. Built-in SOE sequence of event recording function, capture fault and alarm time stamp for post-event analysis.
5. Continuous hardware self-diagnosis detects CPU, memory and bus faults, and automatically switches to safe state.
6. Flash memory stores safety application program, battery-backed SRAM retains event and runtime data during power loss.

Application Scenarios

1. Core safety processing unit for ESD, BMS and fire & gas safety instrumented systems in refineries and power plants.
2. Fault CPU replacement and routine maintenance of existing HIMA H51q-HS PES safety control racks.
3. Safety instrument system renovation and upgrade for offshore platform, natural gas pipeline and high-risk chemical plants.
4. Emergency replacement for safety CPU failure to restore emergency shutdown and safety interlock protection functions.
5. Spare parts stocking for maintenance teams operating HIMA H51q-HS SIL3 safety control platforms.
6. Aftermarket spare supply for safety cabinet overhaul and industrial process safety automation transformation projects.

FAQ

1. Q: Can HIMA F862011 work on HIMatrix series safety systems?
   A: It belongs to H51q-HS PES platform, not compatible with HIMatrix F30/F35 series controllers.
2. Q: What are typical CPU failure symptoms?
   A: Safety logic interruption, F3 bus communication loss, redundant sync error, module fault alarm and safety trip.
3. Q: How to complete commissioning and diagnosis?
   A: Check 24VDC power and F3 bus wiring, download safety program via HIMA engineering software, perform full logic and redundancy test.
