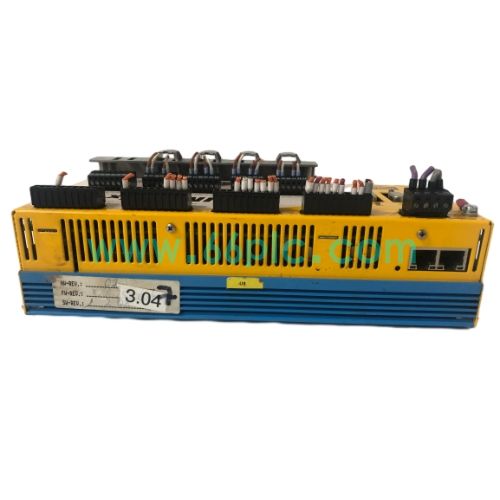

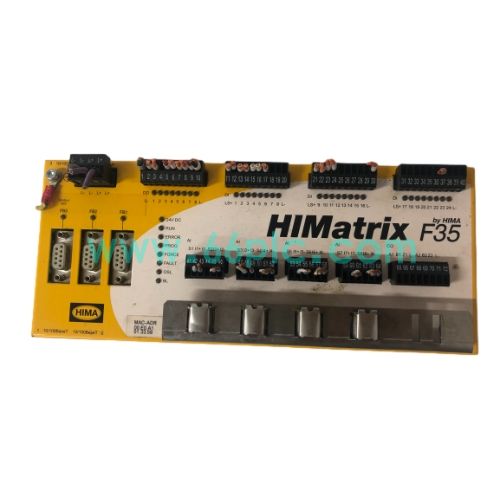

HIMA HIMatrix F35 Compact Safety Controller SIL3

HIMA HIMatrix F35 is a compact all-in-one safety controller for Safety Instrumented System (SIS), certified SIL3 under IEC61508. It integrates built-in digital and analog I/O, dual-core safety CPU and multiple communication ports, executing safety interlock, ESD and burner management logic for critical process plants.

This controller comes with 24 digital inputs, 8 digital outputs, 8 analog inputs and 2 high-speed counter channels. It supports PROFINET, Modbus and F-HART communication, with ATEX Zone2 certification. Widely used as spare parts for petrochemical, power, offshore and subsea safety control cabinets.

Main Specifications

1. Brand: HIMA; Model: HIMatrix F35; Type: Compact SIL3 Safety Controller
2. Certification: IEC61508 SIL3, IEC61511, ATEX Zone2, PL e / Cat.4
3. Core Functions: Safety logic execution, ESD & FGS interlock, I/O processing, high-speed counter measurement
4. I/O Configuration: 24DI, 8DO, 8AI; 2pcs 100kHz safety counter channels
5. Communication: 4-port Ethernet switch, PROFINET IO, Modbus RTU, F-HART transparent transmission
6. Operating Temperature: -20℃ ~ +70℃; DIN rail mounting, optional coated shock resistant version
7. Supply Status: Original HIMA spare controller for SIS safety cabinet maintenance

Core Functions

1. Run safety interlock and emergency shutdown logic to cut off hazardous equipment when process abnormal conditions occur.
2. Collect analog and digital field signals, process counter pulse signals for rotation speed and position monitoring.
3. Support multiple industrial communication protocols to exchange safety data with DCS, HMI and field HART instruments.
4. Dual-core safety CPU architecture with continuous hardware self-diagnosis, detect fault and trigger safe state automatically.
5. Built-in 4-port Ethernet switch simplifies network topology for distributed safety control network.
6. Compact all-in-one design saves cabinet space, suitable for onshore process and offshore subsea safety applications.

Application Scenarios

1. Compact safety control unit for ESD, FGS and burner management systems in chemical, petrochemical and power plants.
2. Fault controller replacement and routine maintenance of existing HIMA HIMatrix SIS safety racks.
3. Safety instrument system renovation and upgrade for offshore platform, subsea equipment and high-risk process industries.
4. Emergency replacement for safety controller failure to restore emergency shutdown and safety interlock protection.
5. Spare parts stocking for maintenance teams operating HIMA HIMatrix SIL3 safety control systems.
6. Aftermarket spare supply for safety cabinet overhaul and industrial process safety transformation projects.

FAQ

1. Q: Can HIMatrix F35 be used for non-safety standard process control?
   A: It is SIL3 safety controller, mainly designed for safety interlock and ESD, not recommended for ordinary continuous process regulation.
2. Q: What are typical controller failure symptoms?
   A: Safety logic halt, Ethernet communication loss, I/O channel fault alarm, controller enters safe shutdown state.
3. Q: How to complete commissioning and diagnosis?
   A: Check 24VDC power and field wiring, download safety program via HIMA programming software, perform full I/O and safety function test.
