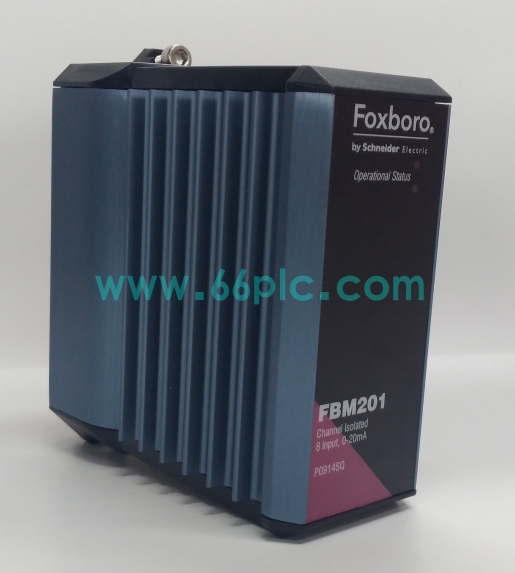

Foxboro FBM201 Analog Input Module

The FBM201 is an 8-channel analog input module for Foxboro I/A Series Compact 200 DCS, designed for 0–20mA two-wire field transmitters and fully compatible with HART communication signals. Every channel adopts independent galvanic isolation to eliminate ground loop interference, converting analog current signals into digital data and transmitting to FCP field control processors via redundant 2Mbps fieldbus. It uses sigma-delta conversion to deliver stable measurement precision for pressure, flow and liquid level sensors in process industries.

This widely stocked spare I/O board fits standard Compact rack slots and supports hot-swap replacement without system shutdown. The rugged metal housing meets G3 harsh environment standards, with conformal coated PCB to resist damp and corrosive gas. Built-in channel self-diagnosis detects open circuits and signal overloads, and front panel indicators display power, bus communication and individual channel fault status for fast field troubleshooting.

Main Specifications

• Brand: Foxboro (Schneider Electric); Model: FBM201; Series: I/A Series Compact 200 DCS I/O
• Channel Layout: 8 fully isolated analog input channels, dedicated for 0–20mA DC two-wire transmitters
• Signal Compatibility: Supports HART protocol for remote transmitter calibration and diagnostic data reading
• Measurement Performance: ±0.1% full scale accuracy, 16-bit sigma-delta resolution, 25ms data refresh cycle
• Isolation Rating: 600VAC channel-to-channel & channel-to-ground isolation, anti-surge protection circuit
• Power Supply: 24VDC control power, max power consumption 7W, redundant rack power input supported
• Communication: Redundant 2Mbps module fieldbus for data interaction with FCP/ZCP field controllers
• Environment: Operating -25℃ ~ +60℃, storage -40℃ ~ +85℃, 5%–95% RH non-condensing, G3 industrial grade
• Diagnostics: Open-circuit, over-range and module hardware fault detection with front LED status lights
• Mounting & Weight: Single-slot Compact rack installation, dimension 127×165×23mm, weight approx 0.71kg
• Certifications: CE, UL industrial EMC certification, compliant with process DCS safety standards

Core Functions

• Collect real-time 4–20mA analog signals from field pressure, flow, temperature and level transmitters for DCS process monitoring.
• Independent channel isolation design prevents single-loop short-circuit or surge faults from disrupting other measurement channels.
• HART transparent transmission enables operators to read sensor diagnostics, adjust ranges and perform on-line calibration without additional wiring.
• High-precision sigma-delta conversion filters industrial electromagnetic noise, ensuring stable readings for closed-loop process control logic.
• Hot-swappable modular design allows independent module replacement without powering down the entire DCS rack, minimizing production downtime.
• Dual redundant fieldbus communication automatically switches to backup path when primary bus fails, guaranteeing uninterrupted data transmission to main controllers.

Application Scenarios

• Analog input spare replacement for Foxboro I/A Series DCS cabinets in thermal power plants and natural gas pipeline monitoring systems.
• HART signal acquisition spare parts for petrochemical refineries, chemical reactors and oil storage tank process control rooms.
• Maintenance backup inventory for pulp & paper mills, metallurgical furnaces and municipal water & wastewater treatment automation racks.
• Matching analog I/O accessory paired with Compact rack, FCP field controllers and 2-wire HART smart transmitters.
• Retrofit replacement components for aging DCS systems suffering signal drift, channel isolation failure and HART communication loss faults.

• Global aftermarket spare stock for automation maintenance teams managing legacy Foxboro I/A Series distributed control equipment worldwide.
