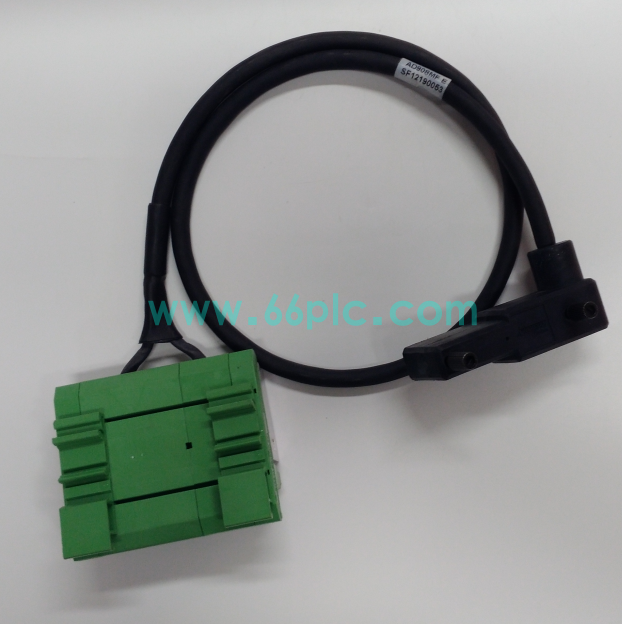

FOXBORO AD908MF I/A Series Transient Data Communication Interface Cable Assembly

AD908MF is a dedicated shielded communication cable assembly for Foxboro I/A Series DCS, matched with FBM207/FBM20C fieldbus modules to realize high-speed transient signal collection and inter-board data transmission. The double-shielded cable with DB37 male connector and split terminal wiring head delivers stable signal transmission for fast-changing pressure, flow and vibration transient data, eliminating electromagnetic interference from high-power equipment in power and chemical control rooms.

This pre-terminated wiring kit adopts flame-retardant outer sheath and internal twisted pair shielding structure, with printed circuit number labels for quick circuit identification. Original Foxboro production has been discontinued, it is an essential aftermarket spare part for overhauling aging I/A Series racks, replacing damaged original cables without reworking cabinet wiring layout.

Main Specifications

• Brand: FOXBORO (Schneider Electric); Model: AD908MF; Type: Transient Data Interface Cable Assembly
• Connector Standard: DB37 male plug + split green terminal block for FBM series I/O modules
• Cable Structure: Double-layer shielded twisted pair, 300V rated voltage, AWM industrial wire standard
• Signal Performance: Support 50kHz high-speed transient sampling signal transmission, 12-bit analog signal resolution
• Operating Environment: -20℃ ~ +60℃, humidity 5%–95% RH non-condensing, EMC industrial anti-interference certified
• Mechanical Feature: Pre-wired finished assembly, fixed length, anti-vibration crimp terminal design
• Protection Class: IP20 indoor cabinet use, flame retardant VW-1 cable jacket
• Matching Hardware: FBM20C, FBM207 fieldbus modules, I/A Series baseplate rack, Foxboro CP40 controller

Core Functions

• Conduct high-speed transient analog and digital signals between FBM fieldbus I/O modules and rack backplane controllers, capturing short pulse process mutation data for fault analysis.
• Dual-layer shielding design completely suppresses ground loop noise and motor/inverter electromagnetic radiation, ensuring accurate high-frequency signal sampling in harsh industrial cabinets.
• Integrated split terminal block realizes one-to-one corresponding wiring for multi-channel sensor signals, convenient for on-site circuit inspection and troubleshooting.
• Pre-terminated finished cable reduces field wiring construction time, plug-and-match with FBM modules without custom wire stripping and crimping work.
• Transmit synchronized real-time transient data to Foxboro DCS operator stations, supporting historical waveform storage and equipment abnormal vibration diagnosis.
• Unified Foxboro I/A Series mechanical and electrical definition, direct replacement for aged, cracked or short-circuited original cables without modifying control logic configuration.

Application Scenarios

• Signal transmission cable spare replacement for Foxboro I/A Series DCS racks in thermal power, hydropower and nuclear power plants.
• Transient data wiring spare parts for petrochemical refineries, natural gas pipelines and chemical batch reaction production lines.
• Maintenance backup inventory for pulp & paper mills, metallurgical rolling mills and pharmaceutical cleanroom automation control cabinets.
• Matching wiring accessory cooperating with FBM20C/FBM207 analog input modules and Foxboro redundant process controllers.
• Retrofit replacement components for aging I/A Series systems with signal distortion, sampling delay and intermittent communication faults.

• Global aftermarket spare stock for process industry maintenance teams maintaining legacy Foxboro I/A Series distributed control hardware.
