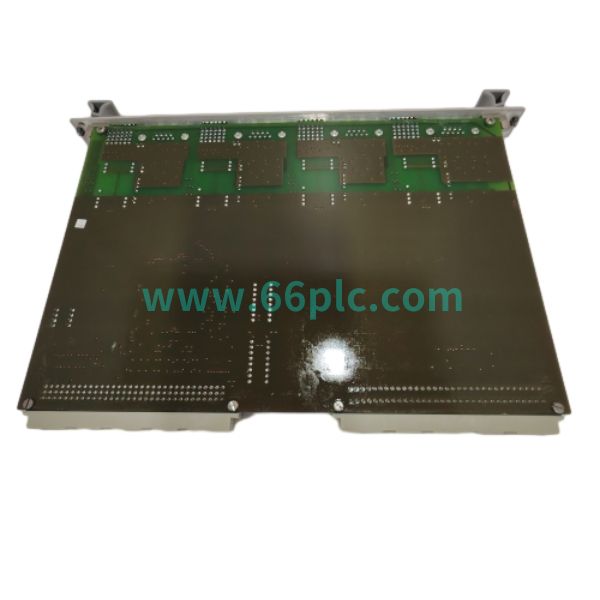

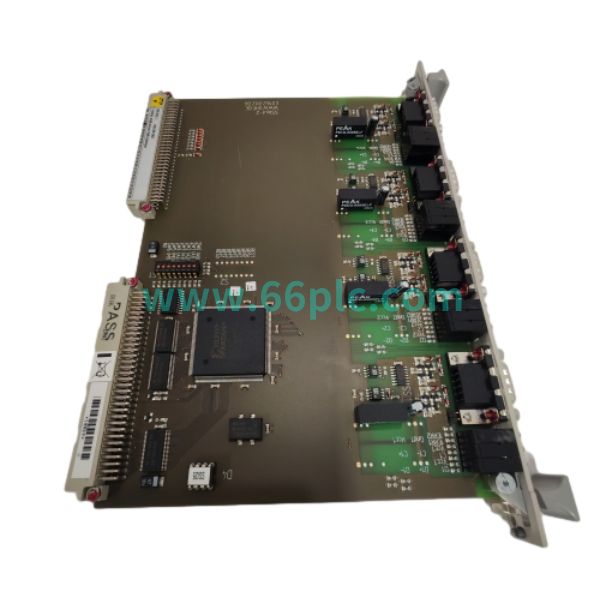

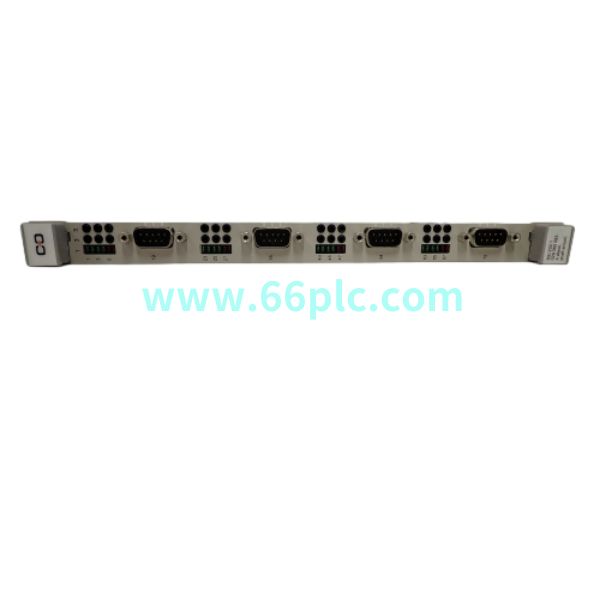

Concurrent SSI232.1，件号029.365.083，是一款SSI同步串行信号转RS232接口转换模块。模块采集绝对值编码器输出的SSI位置信号，将格雷码或二进制位置数据解析转换，封装为标准RS232串口报文输出给上位控制器。

Concurrent SSI232.1, part number 029.365.083, is an SSI to RS232 signal converter. It receives synchronous serial SSI position data from absolute encoders, parses gray or binary code, and transmits position values via standard RS232 serial port to controllers.

支持可配置SSI时钟频率、数据位长度以及RS232波特率，适配主流单圈、多圈SSI编码器。该型号早已停产，大量配套在龙门设备、老式伺服定位系统、机床、检测设备上，属于存量定位反馈回路的维修稀缺备件。

It supports adjustable SSI clock speed, data bit length and RS232 baud rate, compatible with single-turn and multi-turn SSI absolute encoders. This model is end-of-life, widely installed on gantries, old servo positioning systems, machine tools and inspection machines as hard-to-find replacement spare.

Main Specifications 技术参数

• 1. Product Series / 产品系列：Concurrent SSI Interface Converter

• 2. Part Numbers / 型号编码：SSI232.1，029.365.083

• 3. Function Type / 类型：SSI编码器转RS232信号转换模块

• 4. Key Features / 特性：SSI input, RS232 output, Gray / Binary code support, configurable bit rate

• 5. Mounting / 安装：DIN导轨安装，工业控制柜内使用

Core Functions 核心功能

• 1. 接收SSI同步串行编码器位置信号，实时解析位置数值。
  Receive synchronous serial SSI signals and decode real-time absolute position values.

• 2. 格雷码、二进制编码自动识别或切换，适配不同品牌编码器。
  Support Gray code and binary code to match various absolute encoder brands.

• 3. 将位置数据打包成RS232串口协议，供PLC、工控机读取。
  Package position data into RS232 serial frames for PLC or IPC acquisition.

• 4. 时钟、波特率、数据长度参数可设置，适配不同定位回路。
  Configurable clock, baud rate and bit length for flexible positioning loop setup.

• 5. 信号隔离与电平转换，保护后端控制器免受编码器侧干扰。
  Signal level conversion and noise suppression to protect host control hardware.

Application Scenarios 应用场景

• 1. 老机床、龙门设备SSI位置反馈转换模块损坏同型号替换。
  Drop-in replacement for failed SSI-RS232 converters on legacy machine tools and gantries.

• 2. 检测设备、自动化定位平台编码器信号采集回路备件储备。
  Spare inventory for encoder feedback loops on inspection machines and positioning stages.

• 3. 存量运动控制系统改造，保留原有SSI编码器，更换转换模块。
  Retrofit motion systems while keeping original SSI encoders unchanged.

• 4. 设备大修时定位丢失、通讯异常故障的备用替换件。
  Backup spare for position loss and serial communication faults during machine overhaul.

• 5. 海外老旧自动化设备售后备件供货，配套参数调试服务。
  Overseas aftermarket spare supply with parameter configuration and commissioning support.
