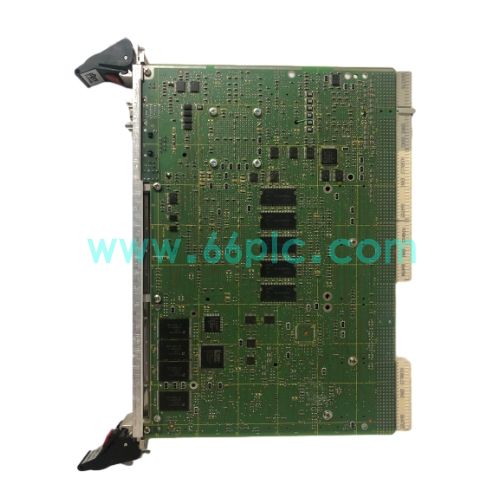

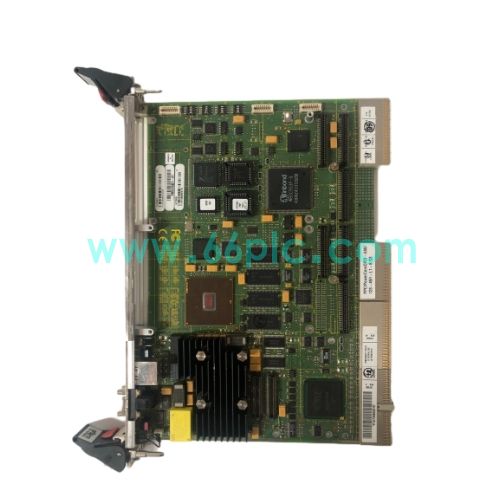

FORCE CPCI-680 CompactPCI Single Board Computer

FORCE CPCI-680 is a 6U CompactPCI single board computer built with PowerPC G4 7400 processor. It adopts SENTINEL universal PCI bridge technology, capable of switching between system controller mode and peripheral card mode without hardware modification.

This SBC supports hot-swap function, dual fast Ethernet ports and PMC expansion slots. It can run VxWorks, Linux and other real-time operating systems. Widely used as spare parts for industrial embedded control, telecommunication and semiconductor equipment control systems.

Main Specifications

1. Brand: FORCE; Model: CPCI-680; Type: 6U CompactPCI Single Board Computer
2. Compatible Chassis: CompactPCI 6U rack, support system slot and peripheral slot operation
3. Core Functions: Embedded real-time computing, backplane bus control, network communication, PMC module expansion
4. Processor: PowerPC G4 7400; Max memory up to 1GB; Dual Fast Ethernet, Wide SCSI-2
5. Operating Temperature: -20℃ ~ +70℃; Full hot swap support, two PMC expansion slots
6. Feature: SENTINEL universal PCI bridge, low power, support multiple RTOS
7. Supply Status: Industrial spare SBC for embedded control rack maintenance

Core Functions

1. High-speed real-time data computation for embedded control system, executing complex industrial algorithm and logic tasks.
2. SENTINEL PCI bridge supports seamless switch between system controller and peripheral working mode.
3. Dual independent fast Ethernet interfaces realize stable network data transmission for distributed control nodes.
4. Wide SCSI-2 interface connects mass storage device; dual PMC slots support flexible function expansion.
5. Full hot swap design allows board replacement without shutting down the whole CompactPCI rack system.
6. Compatible with mainstream real-time operating systems to meet high reliability embedded industrial requirements.

Application Scenarios

1. Embedded computing core for telecommunication equipment, semiconductor manufacturing and industrial real-time control systems.
2. Fault SBC replacement and routine maintenance of existing CompactPCI 6U rack embedded control platforms.
3. Real-time control system renovation and upgrade for high-reliability industrial and communication equipment.
4. Emergency replacement for single board computer failure to restore embedded computing and network communication functions.
5. Spare parts stocking for maintenance teams operating CompactPCI embedded control systems.
6. Aftermarket spare supply for embedded control cabinet overhaul and industrial automation upgrade projects.

FAQ

1. Q: Can FORCE CPCI-680 run on 3U CompactPCI rack?
   A: It is 6U standard form factor, only compatible with 6U CompactPCI chassis, cannot be installed on 3U rack.
2. Q: What are typical SBC failure symptoms?
   A: Boot failure, Ethernet port disconnection, backplane communication error, PMC module recognition failure.
3. Q: How to complete commissioning and diagnosis?
   A: Check CompactPCI backplane power and connection, boot RTOS system, test network and PMC expansion function.
