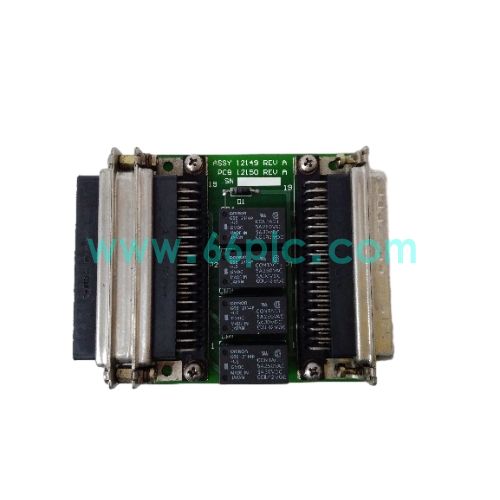

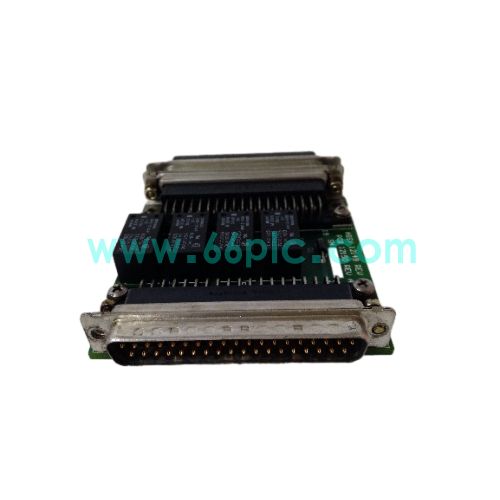

VMIC ASSY 12149 VME Control PCB Assembly

VMIC ASSY 12149 is a VME bus fully assembled control board, designed for GE turbine control systems. It is responsible for field signal conditioning, data acquisition and backplane bus communication, transferring real-time operating data to the main controller.

This VMIC assembly adopts industrial-grade components with built-in surge suppression and signal filtering circuits. It has strong shock and temperature resistance for power plant environments. It is widely used as spare replacement parts for GE Mark series turbine control cabinets.

Main Specifications

1. Brand: VMIC; Model: ASSY 12149; Type: VME Bus PCB Assembly
2. Compatible System: GE Mark series turbine control, VME standard rack
3. Core Functions: Field signal acquisition, signal conditioning, VME backplane communication, circuit fault protection
4. Power Supply: 5V / 24VDC; Installation: VME slot plug-in mounting
5. Operating Temperature: -20℃ ~ +70℃; Built-in ESD and overcurrent protection circuit
6. Feature: Pre-assembled board, on-board hardware self-test, anti-vibration industrial design
7. Supply Status: VMIC spare assembly for turbine control rack maintenance and replacement

Core Functions

1. Collect analog and discrete signals from turbine field sensors, filter interference and convert signals for main controller processing.
2. Realize bidirectional data transmission through VME backplane bus, exchange operating parameters and control commands.
3. Continuous on-board self-diagnosis to detect circuit faults, bus errors and trigger rack alarm for abnormal conditions.
4. Built-in surge and overvoltage protection prevents circuit damage caused by power fluctuation and field electrical interference.
5. Standard VME slot structure supports quick plug and replacement, reducing downtime during power plant maintenance.
6. Transmit critical turbine monitoring data to the main control unit for protection and interlock logic judgment.

Application Scenarios

1. Signal processing assembly for GE Mark series gas and steam turbine control cabinets in power plants.
2. Fault board assembly replacement and routine maintenance of existing VMIC VME rack control systems.
3. Turbine control cabinet overhaul and life extension for thermal power and combined cycle power stations.
4. Emergency replacement for assembly failure to restore field signal acquisition and VME bus communication.
5. Spare parts stocking for maintenance teams operating GE turbine control systems.
6. Aftermarket spare supply for power plant control cabinet renovation and industrial control upgrade projects.

FAQ

1. Q: Can VMIC ASSY 12149 be used on non-VME or non-GE control systems?
   A: It is designed for VMIC VME rack and GE turbine control platform, cannot run on incompatible control hardware.
2. Q: What are typical assembly failure symptoms?
   A: VME backplane communication failure, unstable sensor reading, module fault alarm, on-board component damage.
3. Q: How to complete commissioning and diagnosis?
   A: Check VME backplane connection and field wiring, use GE control software to verify signal collection and bus communication status.
