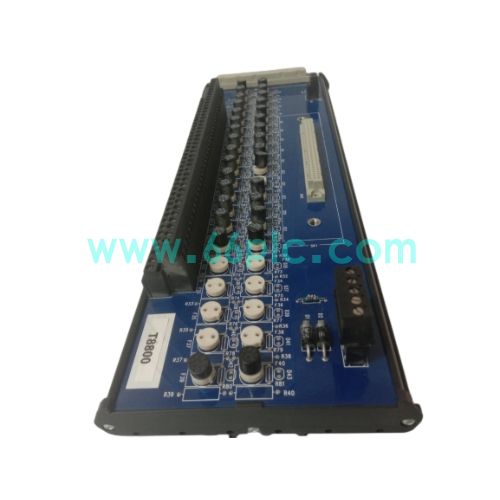

ICS TRIPLEX T8800 5600633 Digital Input Module

ICS TRIPLEX T8800, part number 5600633, is a digital input module built for TMR safety instrumented systems. It acquires discrete on/off signals from field safety sensors and converts them into digital data for safety logic processing in ESD systems.

This module adopts triple modular redundant architecture with built-in channel diagnostics and surge protection. It supports hot swap replacement without system shutdown. Widely used as spare parts for oil & gas, petrochemical and power plant safety interlock control cabinets.

Main Specifications

1. Brand: ICS TRIPLEX; Model: T8800; Part No:5600633; Type: Digital Input Module
2. Compatible System: ICS TRIPLEX TMR Safety Instrumented System (SIS)
3. Core Functions: Discrete signal acquisition, signal conditioning, channel fault detection, data voting
4. Input Signal: Digital dry contact or 24VDC field discrete signals; With overvoltage protection
5. Hardware Feature: Rack mount design, TMR triple redundant, hot swappable
6. Safety Feature: Wire break detection, short circuit alarm, built-in circuit self-test
7. Supply Status: Aftermarket spare part for SIS safety rack maintenance and module replacement

Core Functions

1. Capture discrete digital status signals from field safety switches, limit switches and emergency stop devices.
2. TMR triple redundant data voting mechanism ensures reliable signal status even if one channel suffers fault.
3. Continuous channel diagnostics to detect wire break, short circuit and hardware failure and send rack fault alarms.
4. Surge and overvoltage protection circuits suppress field interference and protect internal safety circuits.
5. Hot swap support allows module replacement while the SIS rack remains running, no system shutdown required.
6. Transmit valid digital status data to the main processor for safety interlock and emergency shutdown logic judgment.

Application Scenarios

1. Discrete signal input unit for emergency shutdown (ESD), fire and gas safety instrumented systems.
2. Fault module replacement and routine maintenance of existing ICS TRIPLEX TMR safety racks.
3. Safety system retrofit and upgrade for petrochemical, oil & gas and power plant process control.
4. Emergency replacement for digital input module failure to restore field safety signal collection.
5. Spare parts stocking for maintenance teams operating ICS TRIPLEX SIS safety instrumented systems.
6. Aftermarket spare supply for safety cabinet overhaul and industrial safety system integration projects.

FAQ

1. Q: Can ICS TRIPLEX T8800 5600633 work independently without TMR safety rack?
   A: It must be installed in ICS TRIPLEX safety rack and cooperate with main processor module, cannot run as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Wrong digital status reading, fault indicator lit, channel open/short alarm, SIS rack communication fault.
3. Q: How to complete commissioning and diagnosis?
   A: Check backplane connection and field wiring, connect TRIPLEX configuration software, test each channel status and fault detection function.
