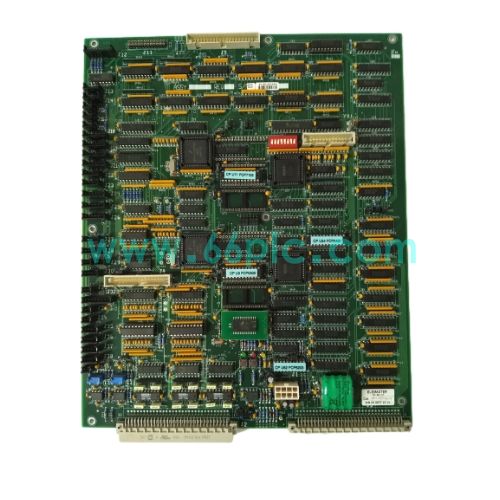

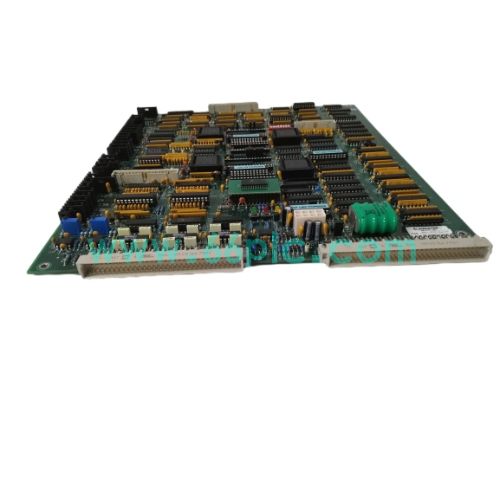

ELEMASTER IB3110551 Distributed I/O Module

ELEMASTER IB3110551 is a remote distributed I/O module manufactured by Elemaster. It acts as a field interface, collecting analog and digital signals from on-site sensors and transmitting data to the host control system via Modbus RTU serial bus.

This compact module integrates multi-channel I/O circuits with built-in surge and short-circuit protection. The front panel LED array indicates power status, channel activity and fault alarms. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of factory automation and railway control systems.

Main Specifications

1. Brand: ELEMASTER; Model: IB3110551; Type: Distributed Remote I/O Module
2. Compatible System: Industrial automation control system, PLC host, field sensors and actuators
3. Core Functions: Field signal acquisition, I/O signal conversion, Modbus RTU communication, hardware self-diagnosis, fault alarm output
4. Port Resource: Multi-channel I/O terminals, RS485 Modbus port, power supply terminals, front panel status LEDs
5. Supported Feature: Wide operating temperature, short-circuit protection, surge protection, industrial EMC protection
6. Hardware Feature: Compact industrial module, passive cooling, cabinet or field mounting
7. Supply Status: Aftermarket spare part for industrial automation system maintenance and component replacement

Core Functions

1. Capture digital and analog signals from field sensors, convert physical measurements into digital data and upload to PLC over RS485 Modbus bus.
2. Receive control commands from upper controller and output switching signals to drive relays, solenoid valves and local status indicators.
3. Built-in short-circuit and surge protection circuits prevent module damage caused by field wiring faults and electromagnetic interference.
4. Continuous hardware self-check monitors module health and uploads diagnostic and alarm information to the control system in real time.
5. Front panel LED lights display power supply, channel working state and fault alarm for convenient on-site inspection and troubleshooting.
6. Distributed I/O structure reduces field wiring length and cost, suitable for dispersed automation control applications.

Application Scenarios

1. Field signal acquisition unit for ELEMASTER automation systems used in manufacturing, railway and packaging industries.
2. Fault I/O module replacement and routine maintenance of existing distributed automation cabinets.
3. Automation hardware upgrading and technical transformation for aging legacy factory control systems.
4. Emergency swap for module failure of continuous production line and railway auxiliary control facilities.
5. Spare-parts stocking for electrical maintenance teams supporting ELEMASTER automation series products.
6. Aftermarket spare supply for control cabinet overhaul and technical-service projects of process industrial facilities.

FAQ

1. Q: Can ELEMASTER IB3110551 work independently without upper PLC and field sensors?
   A: It needs to connect with PLC and field sensors, cannot run as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Modbus communication interruption, partial channel signal loss, output failure, module fault LED lit.
3. Q: How to complete commissioning and diagnosis?
   A: Check module power supply and field wiring; use Modbus configuration tool to read register data and check fault logs.
