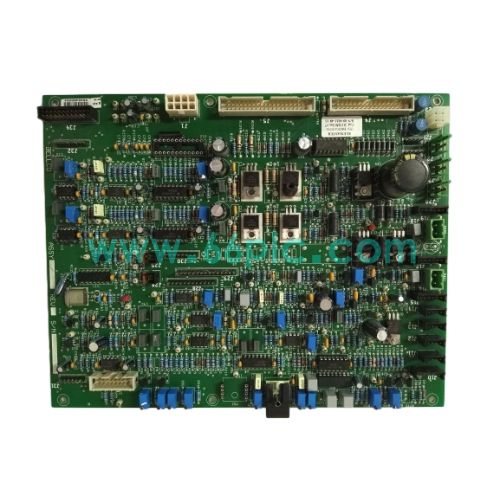

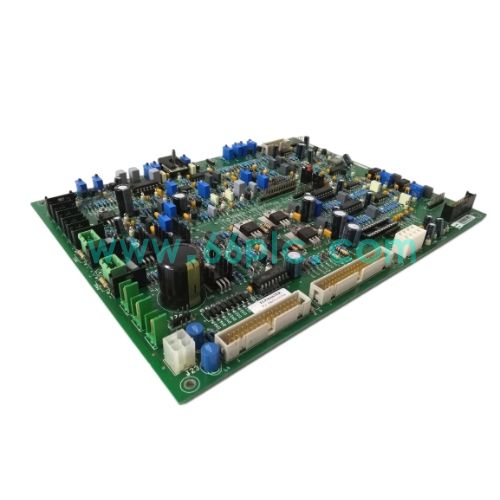

ELEMASTER 3110250 Distributed I/O Module

ELEMASTER 3110250 is a distributed field I/O module manufactured by Elemaster, an Italian electronic manufacturer. It serves as the signal interface between field sensors, actuators and upper control system, collecting field signals and transmitting data via Modbus RTU bus.

This module adopts compact industrial housing design, equipped with multi-channel digital and analog I/O terminals. It integrates short-circuit and surge protection, with front LED indicators for working status display. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of factory automation and railway control systems.

Main Specifications

1. Brand: ELEMASTER; Model: 3110250; Type: Distributed Field I/O Module
2. Compatible System: Industrial automation control system, PLC host, field sensors and actuators
3. Core Functions: Field signal acquisition, I/O signal conversion, Modbus RTU communication, hardware self-diagnosis, fault alarm output
4. Port Resource: Multi-channel I/O terminals, RS485 Modbus port, power supply terminals, front panel status LEDs
5. Supported Feature: Wide operating temperature, short-circuit protection, surge protection, industrial EMC protection
6. Hardware Feature: Compact industrial module, passive cooling, cabinet or field mounting
7. Supply Status: Aftermarket spare part for industrial automation system maintenance and component replacement

Core Functions

1. Collect digital and analog signals from field sensors, convert physical signals into digital data and upload to PLC through RS485 Modbus bus.
2. Receive control instructions from the upper controller and output drive signals to control on-site relays, solenoid valves and indicator lights.
3. Built-in short-circuit and surge protection circuits to prevent module damage caused by field wiring faults.
4. Real-time hardware self-check monitors module operating status and upload diagnostic and alarm information to the control system.
5. Front panel LED lights display power supply, channel status and fault alarm for convenient on-site inspection and troubleshooting.
6. Distributed I/O design reduces on-site wiring workload and is suitable for large-scale dispersed automation control projects.

Application Scenarios

1. Field signal acquisition unit for ELEMASTER automation systems used in manufacturing, railway and packaging industries.
2. Fault I/O module replacement and routine maintenance of existing distributed automation cabinets.
3. Automation hardware upgrading and technical transformation for aging legacy factory control systems.
4. Emergency swap for module failure of continuous production line and railway auxiliary control facilities.
5. Spare-parts stocking for electrical maintenance teams supporting ELEMASTER automation series products.
6. Aftermarket spare supply for control cabinet overhaul and technical-service projects of process industrial facilities.

FAQ

1. Q: Can ELEMASTER 3110250 work independently without upper PLC and field sensors?
   A: It needs to connect with PLC and field sensors, cannot run as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Modbus communication interruption, partial channel signal loss, output failure, module fault LED lit.
3. Q: How to complete commissioning and diagnosis?
   A: Check module power supply and field wiring; use Modbus configuration tool to read register data and check fault logs.
