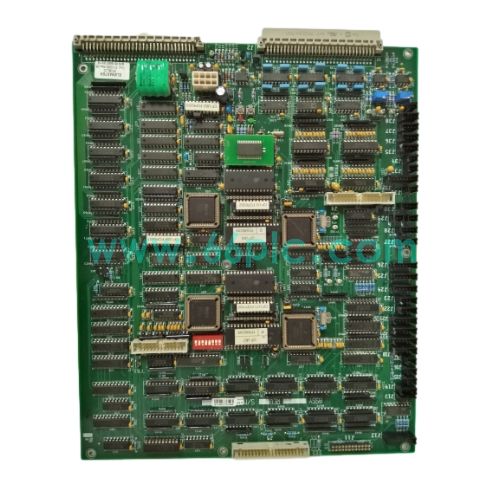

ELEMASTER 3110050 Industrial Control Module

ELEMASTER 3110050 is a high-performance industrial control module developed by Elemaster, an Italian electronic solution provider. It is designed for factory automation and process control, collecting multi-channel field signals and executing local logic control for on-site actuators.

This module supports RS485 Modbus RTU communication and relay output, with wide operating temperature range and IP65 protection grade. It integrates circuit protection and hardware self-diagnosis functions. LED indicators on the front panel display power, running and fault status. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of manufacturing and railway automation systems.

Main Specifications

1. Brand: ELEMASTER; Model: 3110050; Type: Industrial Control Module
2. Compatible System: Industrial automation control system, PLC host, field sensors and relay actuators
3. Core Functions: Field signal acquisition, local logic control, relay output, Modbus RTU communication, hardware self-diagnosis, fault alarm output
4. Port Resource: Signal input terminals, relay output terminals, RS485 communication port, power terminals, front panel status LEDs
5. Supported Feature: Wide temperature range, IP65 protection, overvoltage/overcurrent protection, industrial EMC protection
6. Hardware Feature: Compact module, industrial grade, passive cooling, cabinet or field mounting
7. Supply Status: Aftermarket spare part for industrial automation system maintenance and component replacement

Core Functions

1. Receive digital and analog signals from field sensors and transmit real-time data to upper PLC system via RS485 Modbus bus.
2. Execute local logic control commands and drive built-in relay outputs to switch on-site equipment and auxiliary devices.
3. Built-in overvoltage and overcurrent protection circuits to prevent module damage caused by field wiring short circuit.
4. Real-time hardware self-test monitors module working status and uploads diagnostic and alarm information to control system.
5. Front panel LED lights display power supply, channel running state and fault alarm for convenient on-site inspection and troubleshooting.
6. High environmental adaptability supports stable operation in dusty, humid and wide-temperature industrial sites.

Application Scenarios

1. Field signal control unit for industrial automation systems used in manufacturing, railway, packaging and machinery industries.
2. Fault control module replacement and routine maintenance of existing on-site distributed automation cabinets.
3. Automation hardware upgrading and technical transformation for aging legacy factory control systems.
4. Emergency swap for module failure of continuous production line and railway auxiliary control facilities.
5. Spare-parts stocking for electrical maintenance teams supporting ELEMASTER automation series products.
6. Aftermarket spare supply for control cabinet overhaul and technical-service projects of process industrial facilities.

FAQ

1. Q: Can ELEMASTER 3110050 work independently without upper PLC and field sensors?
   A: It needs to connect with PLC and field sensors, cannot run as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Modbus communication interruption, relay no output, signal reading loss, module fault LED lit.
3. Q: How to complete commissioning and diagnosis?
   A: Check module power supply and field wiring; use Modbus configuration tool to read register data and check fault logs.
