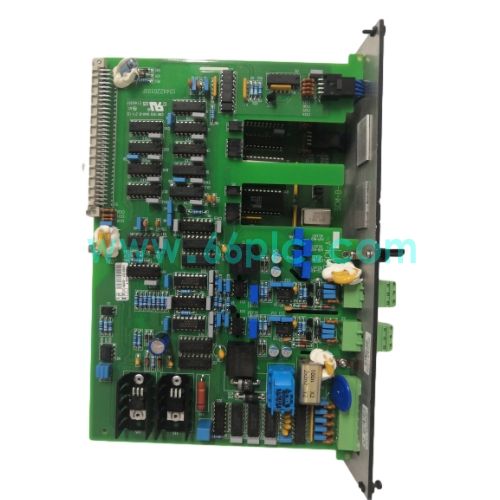

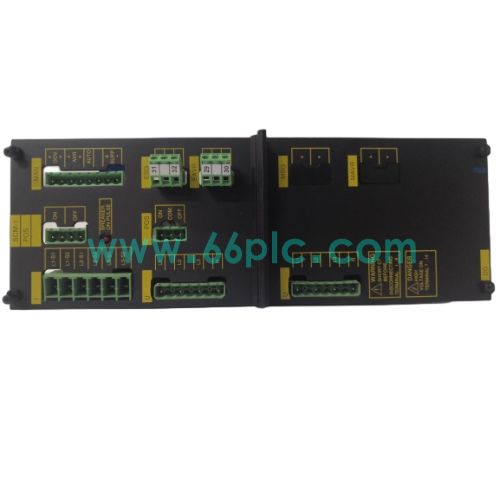

DEIF SCM-1 Generator Synchronization & Control Module

The DEIF SCM-1 is a smart generator synchronization and control module, designed for genset power management systems. It performs automatic synchronization, load sharing and protection for single or multiple generator sets, widely used in marine and land-based power plants.

This DIN-rail mount module runs on 24VDC power supply, supporting Modbus RTU and optional CANopen communication. It integrates multi-channel analog and digital I/O, with built-in hardware self-diagnosis and fault recording. Front panel LED indicators show working and alarm status. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of power generation systems.

Main Specifications

1. Brand: DEIF; Model: SCM-1; Type: Generator Synchronization & Control Module
2. Compatible System: Genset control system, marine power distribution system, multi-generator parallel system
3. Core Functions: Auto synchronization, load sharing, generator protection, I/O signal acquisition, Modbus communication, self-diagnosis, fault alarm output
4. Port Resource: Analog & digital I/O terminals, Modbus RTU / CANopen communication port, 24VDC power terminals, front panel status LEDs
5. Supported Feature: 24VDC supply, DIN rail mounting, wide temperature range, marine grade, industrial EMC protection
6. Hardware Feature: Compact DIN rail module, industrial & marine grade, passive cooling, cabinet mounting
7. Supply Status: Aftermarket spare part for genset power control system maintenance and component replacement

Core Functions

1. Detect voltage, frequency and phase angle of generator and busbar, realize automatic synchronization for generator paralleling.
2. Control active and reactive power to achieve stable load sharing among multiple running generator sets.
3. Provide comprehensive generator protection functions such as over/under voltage, over/under frequency and reverse power protection.
4. Collect field sensor and switch signals, exchange real-time data with upper monitoring system via Modbus RTU bus.
5. Front panel LED lights display power supply, running state and fault alarm for convenient on-site inspection and troubleshooting.
6. Built-in fault event recording function stores alarm history for equipment failure analysis.

Application Scenarios

1. Generator parallel control unit for DEIF power management systems used in marine, power station and backup power industries.
2. Fault synchronization module replacement and routine maintenance of existing multi-genset control cabinets.
3. Power control hardware upgrading and technical transformation for aging legacy generator power distribution systems.
4. Emergency swap for control module failure of marine power system and land-based emergency backup power facilities.
5. Spare-parts stocking for electrical maintenance teams supporting DEIF genset control series products.
6. Aftermarket spare supply for power control cabinet overhaul and technical-service projects of marine and power generation facilities.

FAQ

1. Q: Can DEIF SCM-1 work independently without genset and power distribution system?
   A: It needs to connect with generator sets and busbar voltage transformers, cannot run as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Synchronization failure, abnormal load distribution, protection false trip, communication loss, module fault LED lit.
3. Q: How to complete commissioning and diagnosis?
   A: Check 24VDC power supply and voltage transformer wiring; use DEIF configuration software to set parameters, test synchronization and check fault logs.
