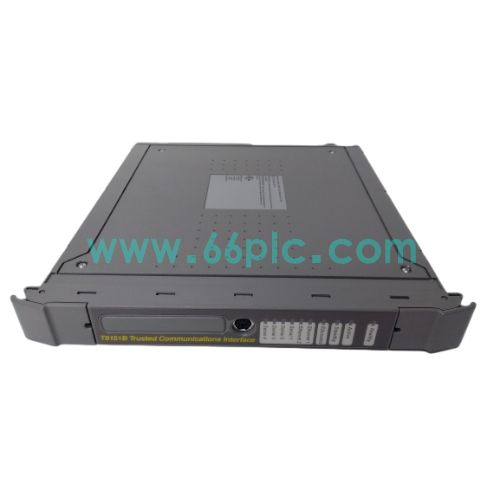

ICS TRIPLEX T8161B Trusted Communication Interface Module

The ICS TRIPLEX T8161B is a trusted communication interface module for ICS TRIPLEX Trusted safety‑critical control systems. It serves as external data gateway for TMR safety platform, providing multi‑channel communication interfaces to realize data exchange between safety controller, operator workstation and third‑party automation devices. It ensures stable and secure data transmission for ESD, fire‑gas and other safety‑related applications.

This rack‑mount hot‑swappable module adopts triple modular redundancy design matching Trusted system architecture. Front‑panel LED indicators display link, running and fault status for on‑site diagnosis. It connects to system backplane bus to interact with TMR processor modules. As obsolete aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of petrochemical, oil‑gas and power plant safety instrumented systems.

Main Specifications

1. Brand: ICS TRIPLEX(Rockwell Automation); Model: T8161B; Type: Trusted Communication Interface Module
2. Compatible System: ICS TRIPLEX Trusted TMR safety system, Trusted chassis backplane
3. Core Functions: Multi‑protocol communication processing, safety‑system external data gateway, backplane bus data interaction, link status monitoring, fault self‑diagnosis, hot‑swap support, status LED indication
4. Port Resource: System backplane connector, multiple communication ports, front‑panel diagnostic LED indicators
5. Supported Feature: TMR redundancy matching, safety‑compliant transmission, error detection, industrial anti‑interference, hot‑swap replacement
6. Hardware Feature: Standard rack plug‑in module, 24VDC power supply, industrial‑grade wide‑temperature design
7. Supply Status: Aftermarket spare part for legacy safety instrumented system maintenance and component replacement

Core Functions

1. Act as external communication gateway for Trusted TMR safety controller to connect with operator stations and monitoring hosts.
2. Process multiple industrial communication protocols to realize safe data interaction between safety system and third‑party field equipment.
3. Exchange safety logic data, alarm signals and process variables with TMR processor via chassis backplane bus.
4. Real‑time monitor communication link quality, capture transmission errors and feed diagnostic fault information back to system.
5. Support hot‑swap online replacement to reduce production downtime during module maintenance operation.
6. Comply with safety‑related transmission requirements to guarantee data integrity for safety instrumented applications.

Application Scenarios

1. Safety‑system communication gateway for petrochemical, oil‑gas and power plant adopting ICS TRIPLEX Trusted SIS platform.
2. Fault communication‑module replacement and routine maintenance of existing Trusted safety control cabinets.
3. Communication‑interface hardware upgrading and technical transformation for aging legacy safety instrumented systems.
4. Emergency swap for communication‑module failure of continuously‑running critical safety‑related production facilities.
5. Spare‑parts stocking for plant instrument‑maintenance teams supporting ICS TRIPLEX Trusted series safety products.
6. Aftermarket spare supply for SIS‑system overhaul and technical‑service projects of industrial process facilities.

FAQ

1. Q: Can T8161B work independently without Trusted chassis and TMR processor?
   A: It must be installed in matched Trusted chassis and cooperate with TMR main processor, cannot operate as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Communication link drop‑off, data transmission interruption, LED fault alarm, safety system cannot exchange data with external host devices.
3. Q: How to complete commissioning and diagnosis?
   A: Inspect rack power supply, backplane contact and communication cable connection; check link status and fault codes on safety system operator workstation.
