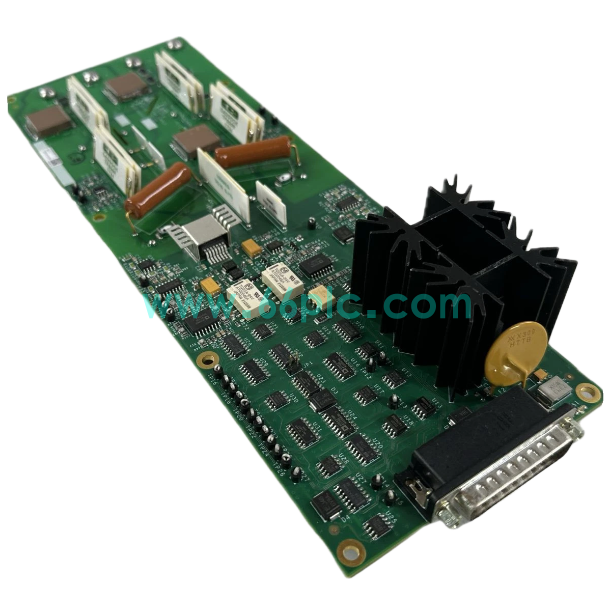

LAM 810‑495659‑400 ESC BICEP HV‑RP Power Supply PCB Assembly

The LAM Research 810‑495659‑400 is an ESC BICEP HV‑RP power supply PCB assembly, designed for LAM semiconductor wafer processing equipment. It delivers high‑voltage power output and precise power regulation for process chambers, supporting etching and deposition process operations under rigorous fab working conditions.

This complex power board integrates high‑voltage conversion circuits, heat dissipation components and protection circuits, with built‑in overload and short‑circuit protection functions. It connects to equipment backplane for control signal interaction. As original OEM spare part, it is widely used for maintenance, replacement and retrofit of LAM semiconductor production tools in wafer fabrication factories.

Main Specifications

1. Brand: LAM Research; Model: 810‑495659‑400; Type: ESC BICEP HV‑RP Power Supply PCB Assembly
2. Compatible System: LAM semiconductor wafer processing equipment, etching and deposition process tools
3. Core Functions: High‑voltage power conversion, stable power output, over‑current & short‑circuit protection, thermal monitoring, backplane signal interaction, fault status feedback
4. Port Resource: Backplane connector, high‑voltage output terminals, control signal interface, on‑board heat sink assembly
5. Supported Feature: High‑precision power regulation, industrial anti‑interference, thermal protection, harsh fab environment adaption
6. Hardware Feature: OEM original PCB assembly, integrated heat dissipation, USA origin, semiconductor‑grade components
7. Supply Status: Aftermarket OEM spare part for semiconductor fab equipment maintenance and component replacement

Core Functions

1. Convert input power to required high‑voltage power supply for LAM semiconductor process chamber modules.
2. Provide stable and adjustable power output to satisfy power demand during wafer etching and deposition procedures.
3. Built‑in multi‑level protection to prevent damage caused by overload, short‑circuit and over‑temperature conditions.
4. Receive control commands and feed back running status and fault signals through equipment backplane interface.
5. Adopt integrated heat‑sink structure to realize efficient heat dissipation for long‑time continuous operation in fab environment.
6. Monitor power operating parameters in real‑time to ensure repeatable and stable semiconductor manufacturing processes.

Application Scenarios

1. High‑voltage power supply unit for wafer fab using LAM Research semiconductor processing equipment.
2. Fault power‑supply‑board replacement and routine maintenance of existing LAM etching and deposition tools.
3. Power hardware upgrading and technical transformation for aging semiconductor production equipment.
4. Emergency swap for power‑board failure of critical continuous‑running wafer manufacturing equipment.
5. Spare‑parts stocking for fab equipment maintenance teams supporting LAM series semiconductor tools.
6. Aftermarket OEM spare supply for semiconductor‑equipment overhaul and technical‑service projects.

FAQ

1. Q: Can 810‑495659‑400 work independently without matched LAM semiconductor equipment?
   A: It must be installed in corresponding LAM process equipment and cooperate with host control system, cannot work as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Equipment power‑on fault alarm, no high‑voltage output, process chamber abnormal status, over‑temperature protection trigger, tool interlock stop.
3. Q: How to complete commissioning and diagnosis?
   A: Inspect board assembly, heat sink and cable connections; check equipment fault log and verify power output parameters under safety operation procedure.
