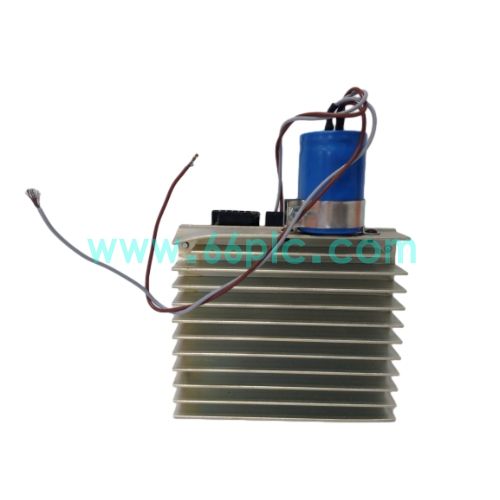

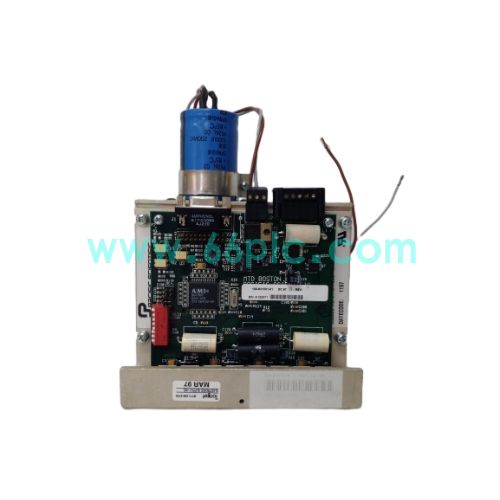

Pacific Scientific 6410‑009‑N‑N‑N Stepper Motor Drive Module

The Pacific Scientific 6410‑009‑N‑N‑N is a high‑performance micro‑stepping stepper drive unit for industrial motion‑control applications. It receives step and direction control pulses from upper‑level controller, outputs phase current to two‑phase stepper motor to achieve precise angular positioning and speed regulation. It is widely used for automated machinery positioning, conveying and precise motion execution tasks.

This drive supports multiple micro‑step resolution settings and adjustable output current, equipped with over‑current, over‑temperature and short‑circuit protection functions. Front‑panel LED indicators display power, fault and running status for convenient on‑site troubleshooting. Widely used as aftermarket spare hardware for packaging equipment, printing machinery and automated production lines for drive‑system maintenance and retrofitting projects.

Main Specifications

• Brand: Pacific Scientific; Model: 6410‑009‑N‑N‑N; Type: Micro‑Stepping Stepper Drive Module
• Compatible System: PLC, motion controller, two‑phase stepper motor, step/direction pulse control interface
• Core Function: Step pulse decoding, micro‑stepping current output, motor drive, multi‑fault protection, status indication
• Port Resource: Power supply terminals, motor phase output terminals, step/direction signal input, enable signal, status LED indicators
• Supported Feature: Selectable micro‑step resolution, adjustable output current, over‑current / over‑temperature / short‑circuit protection
• Hardware Feature: Compact industrial housing, DC power input, panel or chassis mounting, anti‑interference circuit design
• Supply Status: Aftermarket spare part for legacy industrial motion‑control system maintenance and component replacement

Core Functions

• Receive step and direction pulse signals sent by motion controller or PLC, convert pulse commands into phase current sequence to drive two‑phase stepper motor rotation.
• Support configurable micro‑stepping mode, effectively reduce motor vibration and noise, improve positioning smoothness for low‑speed motion scenarios.
• Allow field adjustment of output current to match different‑specification stepper motors, prevent motor over‑heating and optimize torque performance.
• Integrate multiple protection mechanisms including over‑current, short‑circuit and over‑temperature, automatically cut off drive output under abnormal conditions to protect motor and internal circuit.
• Real‑time feedback working and fault status via LED indicators, help technicians quickly locate drive‑side faults during equipment debugging and maintenance.
• Realize stable open‑loop precise positioning, fulfilling repeated positioning requirements of automated machinery without complex position feedback loop.

Application Scenarios

• Stepper motor driving for automated assembly equipment, packaging machinery, printing‑processing equipment and material‑handling automation lines.
• Fault stepper‑drive‑module replacement and routine maintenance for existing Pacific Scientific motion‑control cabinets.
• Motion‑drive hardware upgrading and technical transformation for aging legacy automated industrial equipment.
• Emergency swap for stepper‑drive failure of continuously‑running automated production machinery on‑site.
• Spare‑parts stocking for equipment‑maintenance teams and automation integrators supporting Pacific Scientific drive products.
• Aftermarket spare supply for mechanical‑equipment overhaul and technical‑service projects of manufacturing‑industry facilities.

FAQ

• Q: Can 6410‑009‑N‑N‑N operate independently without controller and stepper motor?
  A: It must receive step/direction pulses from upper controller and match with two‑phase stepper motor, cannot complete motion driving as standalone hardware.
• Q: What are typical module failure symptoms?
  A: Motor no rotation, motor jitter and abnormal noise, drive fault alarm, no response to step pulse commands, frequent over‑current protection triggering.

• Q: How to complete commissioning and diagnosis?
  A: Inspect DC power supply, motor wiring and pulse‑signal wiring; set micro‑step and output current parameters, observe LED status and test motor running performance.
