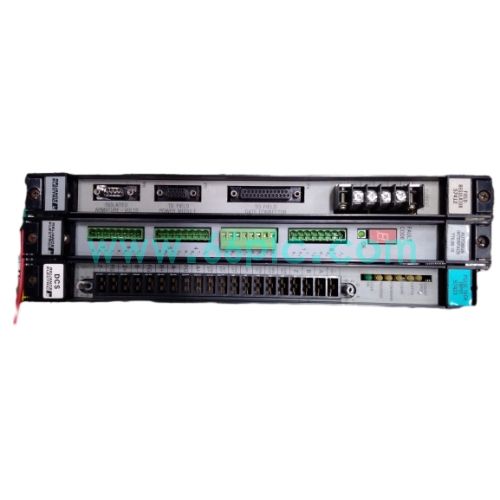

Reliance Electric 770.90.10 / 57421 / 57412 AutoMax Rack Module Set

The Reliance Electric 770.90.10, 57421 and 57412 are a group of matched plug‑in modules for the Reliance AutoMax DCS‑5000 control rack. 770.90.10 serves as the AutoBus communication interface module, establishing bus communication between the rack and drive units. 57421 is a pulse‑tachometer input module for high‑speed pulse and rotational speed signal acquisition, while 57412 acts as field regulator module for motor field current regulation and closed‑loop drive control.

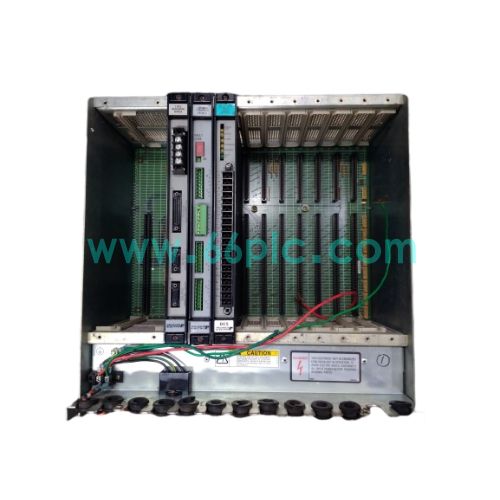

These three modules are often used together inside one AutoMax rack, completing bus interconnection, speed pulse measurement and excitation current adjustment for large‑capacity DC drive systems. Each module is equipped with LED status indicators for channel and fault diagnosis. All belong to discontinued legacy series, widely circulated as aftermarket spare parts for metallurgy, paper‑making and heavy‑industry drive‑system maintenance and equipment retrofitting projects.

Main Specifications

• Brand: Reliance Electric; Model:770.90.10(AutoBus Interface),57421(Pulse‑Tach Input),57412(Field Regulator); Type: AutoMax Rack Plug‑in Module Set
• Compatible System: Reliance AutoMax DCS‑5000 control rack, AutoBus drive communication bus, DC motor drive system
• Core Function: AutoBus bus communication, high‑speed pulse/speed signal acquisition, motor field excitation current regulation, hardware self‑diagnosis
• Port Resource: AutoBus bus terminals, pulse encoder input terminals, field power connection terminals, multi‑group signal connectors, status LED indicators
• Supported Feature: 500Vrms channel isolation, 100kHz max pulse input frequency, field current calibration, link fault detection, on‑site status indication
• Hardware Feature: Standard AutoMax rack plug‑in form factor, 24VDC logic power supply, industrial anti‑interference design, front‑panel adjustment potentiometer
• Supply Status: Aftermarket spare parts for legacy AutoMax drive‑control‑system maintenance and component replacement

Core Functions

• 770.90.10 AutoBus interface module: realize data exchange between AutoMax control rack and field drive units, transmit control commands and drive running status via AutoBus field bus.
• 57421 pulse‑tachometer input module: collect high‑speed pulse signals from tachometer encoders, adopt 24‑bit counter to measure motor rotating speed, feed speed data back to main controller for closed‑loop speed regulation.
• 57412 field regulator module: adjust DC motor field excitation current, support multi‑gear current calibration, stabilize motor excitation output and cooperate with drive unit to complete motor speed‑torque control.
• Each module carries out independent hardware self‑diagnosis, detect bus faults, signal loop abnormality and internal failure, display running and alarm status via front‑panel LED indicators.
• Complete mutual coordination inside AutoMax rack via backplane bus, realize complete closed‑loop control for large DC motor drive equipment in heavy‑industry production lines.
• Provide key signal acquisition, bus connection and excitation regulation hardware support for legacy paper‑making, metallurgy and rolling‑mill drive‑control systems.

Application Scenarios

• DC drive control system for metallurgy rolling‑mill, paper‑making production line and other heavy‑industry equipment adopting Reliance AutoMax DCS‑5000 platform.
• Fault module replacement and routine maintenance of existing AutoMax control cabinet racks with matched 770.90.10,57421,57412 module combination.
• Drive‑control hardware upgrading and technical transformation for aging legacy heavy‑industrial automation production systems.
• Emergency swap for bus communication, speed‑measurement or field‑regulation failure of continuously‑running production drive equipment on‑site.
• Spare‑parts stocking for factory maintenance teams and system integrators supporting Reliance AutoMax legacy drive‑control platforms.
• Aftermarket spare supply for equipment overhaul and technical‑service projects of paper‑making, metallurgy and process‑industry facilities.

FAQ

• Q: Can 770.90.10 / 57421 / 57412 work without AutoMax rack?
  A: They must be inserted into AutoMax rack and cooperate with corresponding main processor, cannot complete bus, speed‑measurement and field‑regulation functions as standalone hardware.
• Q: What are typical module failure symptoms?
  A: AutoBus communication interruption, motor speed measurement loss, field current out‑of‑control, module fault LED alarm, drive unit cannot respond to control commands.

• Q: How to complete commissioning and diagnosis?
  A: Inspect rack 24VDC power supply, bus and field‑side wiring; calibrate field current for 57412, check pulse input for 57421, observe LED status and read system diagnostic logs via AutoMax software.
