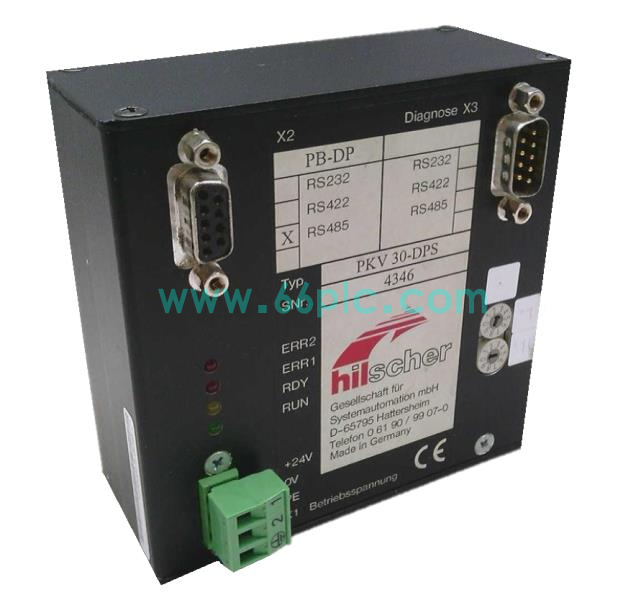

Hilscher PKV‑30‑DPS PROFIBUS‑DP Slave Communication Module

The Hilscher PKV‑30‑DPS is a compact plug‑in PROFIBUS‑DP slave communication module developed for industrial automation field‑bus applications. It realizes high‑speed data exchange between field devices and PROFIBUS‑DP master controllers, converting internal parallel bus signals into standardized PROFIBUS‑DP slave protocol data, enabling non‑PROFIBUS compatible equipment to seamlessly access PROFIBUS‑DP industrial network for process data transmission and real‑time control.

This module follows PROFIBUS international standard protocol specification, supports cyclic and acyclic data communication, and provides status LED indicators for on‑site diagnosis. It can be configured via Hilscher configuration software for data mapping and parameter assignment. Original production has been discontinued. It is widely supplied as aftermarket spare parts for legacy PROFIBUS‑DP automation cabinet maintenance and field‑bus system retrofit projects.

Main Specifications

1. Brand:Hilscher; Model:PKV‑30‑DPS; Type:PROFIBUS‑DP Slave Field‑bus Communication Module
2. Field‑bus Protocol:Compliant with PROFIBUS‑DP V0 / V1 slave protocol standard
3. Baud Rate:Auto‑adapt PROFIBUS baud rate from 9.6 kbps up to 12 Mbps
4. Data Mapping:Configurable cyclic input / output process data size, support acyclic parameter read‑write
5. Interface:PROFIBUS‑DP 9‑pin D‑Sub connector, internal host bus interface for host hardware connection
6. Diagnostic Feature:Multi‑channel LED status indicators for bus status, data activity and fault alarm
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Operate as PROFIBUS‑DP slave node, perform cyclic process data exchange with PROFIBUS‑DP master PLC or controller on industrial field‑bus network.
2. Complete protocol conversion between host internal bus and PROFIBUS‑DP, so that host automation equipment can join PROFIBUS‑DP network without redesigning hardware circuit.
3. Support acyclic read‑write access, allowing master station to read module status information and download configuration parameters for field‑bus device diagnosis.
4. Real‑time detect field‑bus communication anomalies, generate diagnostic information and display running status via onboard LED indicators for on‑site maintenance reference.
5. Realize process data mapping configuration through Hilscher configuration tool, match input‑output data address with upper‑level master control system.
6. Serve as standard PROFIBUS‑DP slave interface hardware for legacy industrial drives, I/O racks and special automation devices.

Application Scenarios

1. Manufacturing automation, process plants and other industrial sites based on PROFIBUS‑DP field‑bus control architecture.
2. Spare communication module replacement and routine maintenance of existing legacy equipment equipped with Hilscher PKV‑30‑DPS modules.
3. Technical renovation and field‑bus communication upgrade of aging PROFIBUS‑DP automation control systems.
4. On‑site troubleshooting and replacement of faulty field‑bus modules on continuously running industrial production equipment.
5. Spare‑parts stocking for system integrators and maintenance contractors supporting legacy PROFIBUS‑DP hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining industrial automation hardware integrated with Hilscher field‑bus modules.

FAQ

1. Q:Can Hilscher PKV‑30‑DPS run as standalone device?
   A:It is a slave daughter module, must be mounted on compatible host hardware and cannot work independently without host equipment.
2. Q:What failure symptoms will occur?
   A:PROFIBUS‑DP slave station offline, cyclic data interruption, master‑slave communication failure and field‑bus network alarm may appear.

3. Q:What software is used for configuration?
   A:Parameter configuration and diagnostic processing need to cooperate with Hilscher official configuration software together with host equipment.
