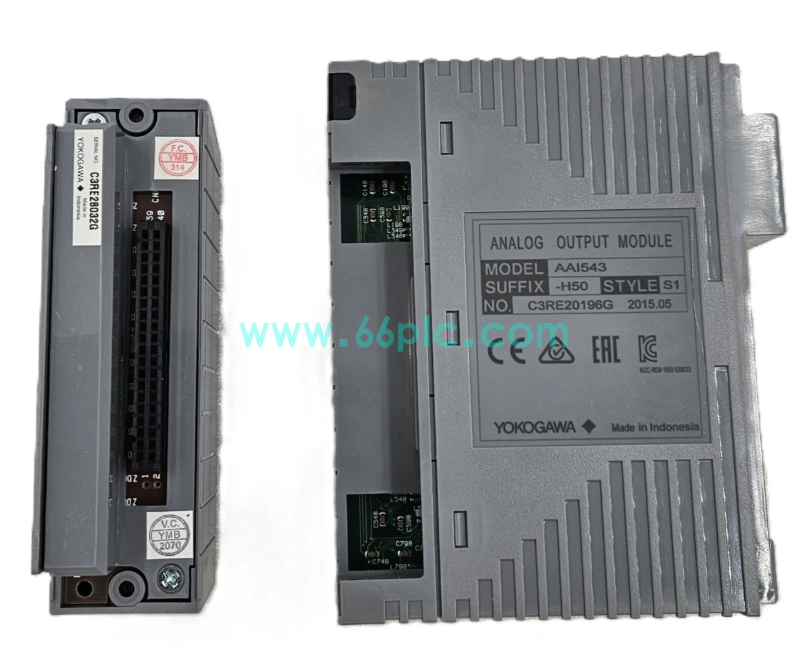

Yokogawa AAI543-H50 S1 Analog Output Module

The Yokogawa AAI543-H50 S1 is a rack-mounted analog output module designed for the CENTUM VP DCS system. It receives digital control commands from the DCS controller and converts digital signals into standard 4-20mA analog output signals to regulate valves, actuators and frequency converters on site.

This module features channel isolation and built-in diagnostic functions for open circuit and short circuit detection. It is widely stocked as spare parts for maintenance and system upgrade of CENTUM VP control cabinets in petrochemical, power and process industries.

Main Specifications

• Brand: Yokogawa; Model: AAI543-H50 S1; Type: Analog Output Module
• Applicable System: Yokogawa CENTUM VP Distributed Control System
• Core Tasks: D/A conversion, 4~20mA analog output, signal isolation, channel fault self-diagnosis
• Signal Interface: Field analog wiring terminals, CENTUM VP rack backplane connector
• Installation: Plug-in slot mounting on standard CENTUM VP chassis rack
• Output Signal: 4~20mA analog control signal, with channel isolation
• Operating Environment: 0℃ ~ +60℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Certifications: CE, complies with industrial DCS EMC and safety standards

Core Functions

• Receive digital control values issued by the DCS controller and complete high-precision digital-to-analog conversion to output standard current signals.
• Adopt isolated design for each channel to suppress electromagnetic interference and ensure stable control output in complex factory environments.
• Built-in self-diagnosis function monitors channel open circuit, short circuit and module hardware faults, and uploads alarm information to the operation station.
• Drive field control equipment such as regulating valves and actuators to realize continuous closed-loop adjustment of temperature, pressure and flow.
• Chassis plug-in structure supports quick disassembly and replacement to reduce equipment downtime during cabinet maintenance.
• Conformal coated circuit board provides dust and moisture resistance for long-term reliable operation in control rooms.

Application Scenarios

• Spare-part replacement for Yokogawa CENTUM VP DCS control cabinets in petrochemical, power, pharmaceutical and water treatment sites.
• Analog output hardware for regulating valves, actuators and variable frequency drive control loops.
• Maintenance backup inventory for renovation and after-sales maintenance projects of legacy Yokogawa DCS equipment.
• Matching analog I/O module cooperating with CENTUM VP power supply, CPU and analog input modules.
• Retrofit replacement for aged modules with output deviation, channel failure and diagnostic alarm faults.

• Global aftermarket spare supply for automation maintenance teams maintaining Yokogawa DCS equipment worldwide.
